INSTALLATION MANUAL

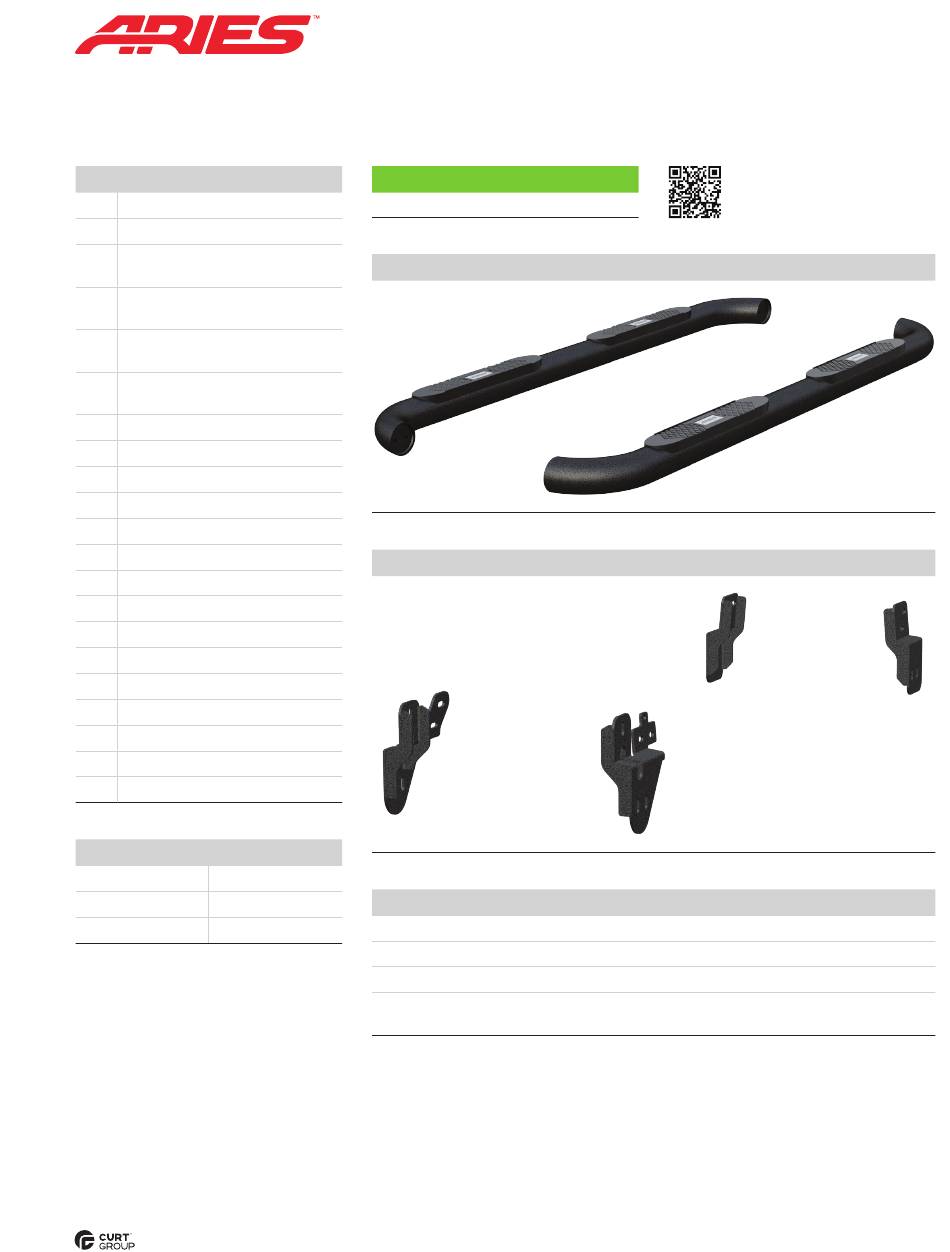

Parts List
1

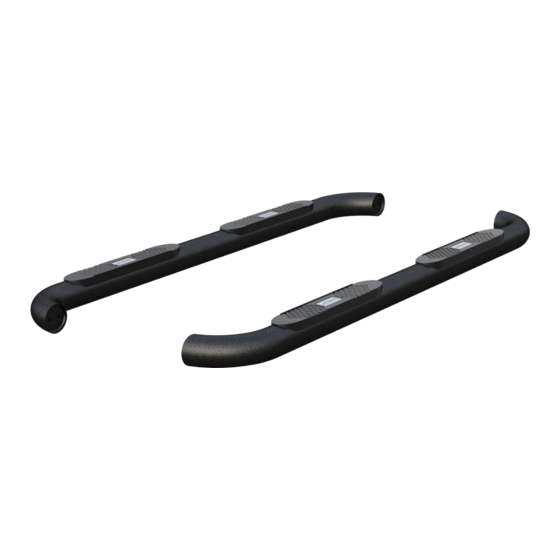

Driver / left side bar
1
Passenger / right side bar
1
Driver / left
mounting bracket, front
1
Driver / left
mounting bracket, rear
1
Passenger / right
mounting bracket, front
1
Passenger / right
mounting bracket, rear
2
Bolt plate, M8
5
Hex bolt, M8
7
Flat washer, M8
7
Lock washer, M8
2
Hex nut, M8
2
Plastic bolt retainer, M8
12
Hex bolt, M10
12
Flat washer, M10
12
Lock washer, M10
4
Bolt and nut plate, M12
4
Flat washer, M12
4
Lock washer, M12
4
Hex nut, M12
4
Plastic bolt retainer, M12
1
Spacer plate
Tools Required
Torque wrench
Socket, 13mm
Level
Socket, 16mm
Socket, 18mm
Level of Difficulty
Easy
Product Image
Brackets and Hardware
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • AL235041-INS-RC • 877.287.8634 • NEED ASSISTANCE?
AL235041
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
Advertisement
Table of Contents
Related Manuals for Aries AL235041
Summary of Contents for Aries AL235041
- Page 1 For black finishes, mild soap may be used to clean the product. Refer to the table to the left when securing hardware during the installation process to help prevent damage to the product or vehicle. • ARIESAUTOMOTIVE.COM PAGE 1 • AL235041-INS-RC • 877.287.8634 • NEED ASSISTANCE?
- Page 2 Note: Older model vehicles may not have a support bracket (indicated by the red arrow) at this location. In this case, use the provided spacer plate between the front mounting bracket and the rocker panel. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • AL235041-INS-RC • PAGE 2...
- Page 3 Adjust and level the side bar. With the side bar in position, it is recommended to tighten all brackets to the vehicle first, followed by the side bar connections. • ARIESAUTOMOTIVE.COM PAGE 3 • AL235041-INS-RC • 877.287.8634 • NEED ASSISTANCE?
- Page 4 To protect your investment, see the 'Notes and Maintenance' section on the first page of this instruction manual. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • AL235041-INS-RC • PAGE 4...
