INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
6
Mounting bracket, universal
1
Def-tank support bracket
1
Def-tank L-bracket
1
Plastic bolt retainer, M10
13
Hex bolt, M8
13
Flat washer, M8
14
Lock washer, M8
13
Clip nut, M8
1
Bolt plate, M10
13
Hex bolt, M10
15
Flat washer, M10
14
Lock washer, M10
2
Hex nut, M10
Tools Required
Ratchet
Socket, 16mm
Wrench, 16mm
Socket, 13mm
Level
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

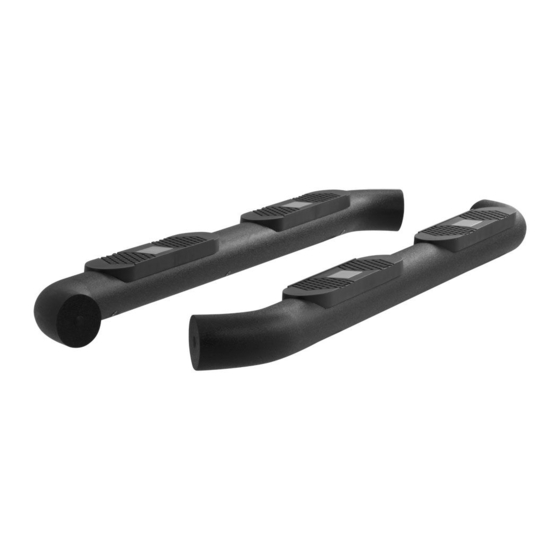

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.

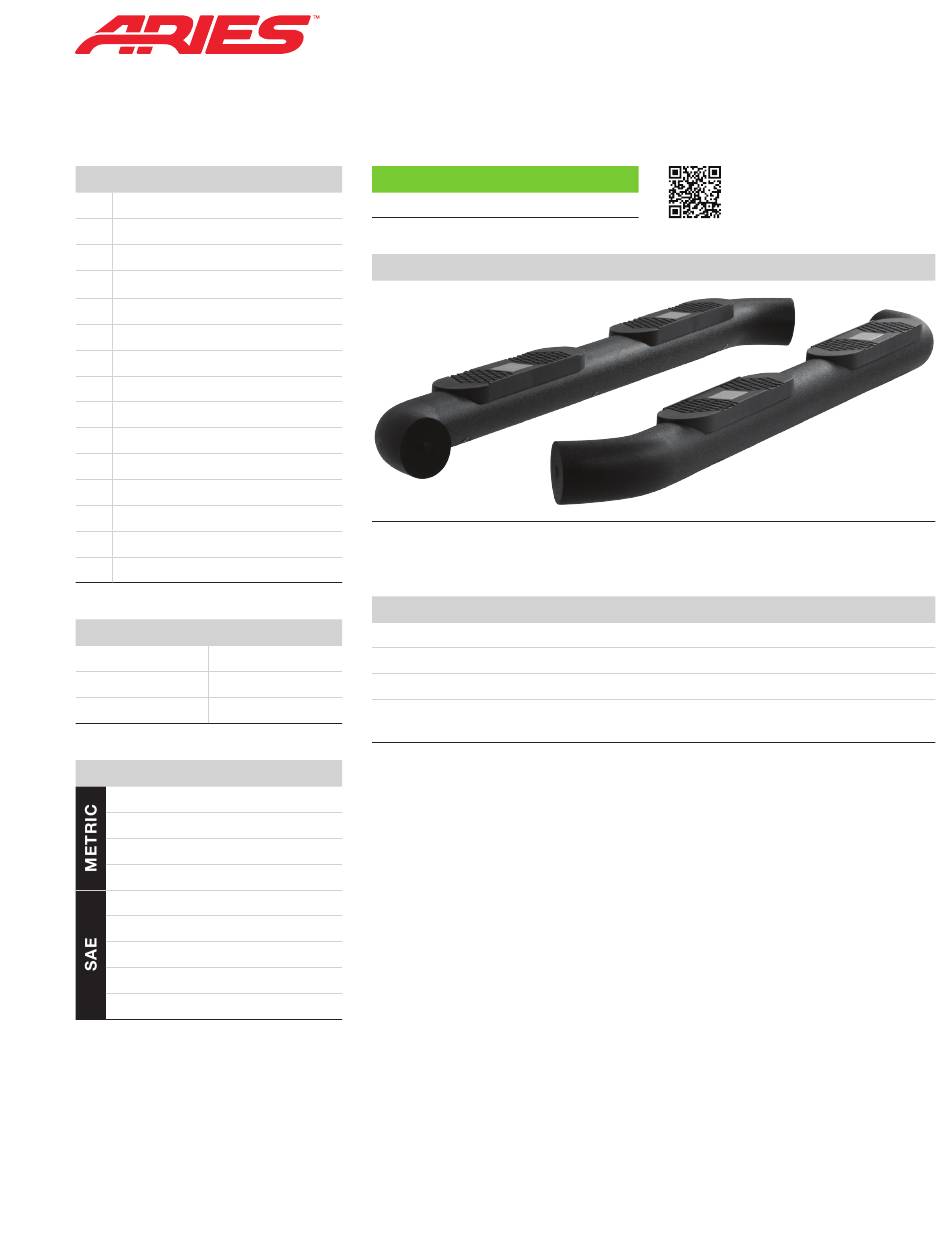

PAGE 1 • AL234046-INS-RA • 800.798.0813 • NEED ASSISTANCE?
AL234046
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
Advertisement
Table of Contents
Related Manuals for Aries AL234046
Summary of Contents for Aries AL234046
- Page 1 7 ft.-lbs. M10 bolt 16 ft.-lbs. M12 bolt 28 ft.-lbs. 1/4" bolt 3 ft.-lbs. 5/16" bolt 7 ft.-lbs. 3/8" bolt 16 ft.-lbs. 7/16" bolt 20 ft.-lbs. 1/2" bolt 28 ft.-lbs. • ARIESAUTOMOTIVE.COM PAGE 1 • AL234046-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Snug the hardware, but do not fully tighten Step 4 Repeat steps 2 and 3 to install the second bracket over the third mounting tab location from step 1. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • AL234046-INS-RA • PAGE 2...
- Page 3 Adjust and level the side bar. With the side bar in position, it is recommended to tighten all brackets to the vehicle first, followed by the side bar connections. • ARIESAUTOMOTIVE.COM PAGE 3 • AL234046-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 4 Attach the short end of the bracket to the bolt plate with the flat washer, lock washer and 10mm hex nut. Snug the hardware, but do not fully tighten. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • AL234046-INS-RA • PAGE 4...
- Page 5 Congratulations on the installation of your new ARIES 4" Big Step side bars. With the side bars installed, periodic inspections should be performed to ensure all mounting hardware remains tight. • ARIESAUTOMOTIVE.COM PAGE 5 • AL234046-INS-RA • 800.798.0813 • NEED ASSISTANCE?
