Parts List
1
Driver / left side bar
1
Passenger / right side bar
6
Mounting bracket, universal
30
Flat washer, M8
18
Flat washer, nylon, M8
12
Lock washer, M8
18
Nylock nut, M8 x 1.25, CL8.8
12
Hex bolt, 8mm
Tools Required
Ratchet
Level
Socket, 13mm
PAGE 1 • AL233043-INS-RB • 877.287.8634 • NEED ASSISTANCE?
AL233043
INSTALLATION MANUAL
Level of Difficulty
Easy

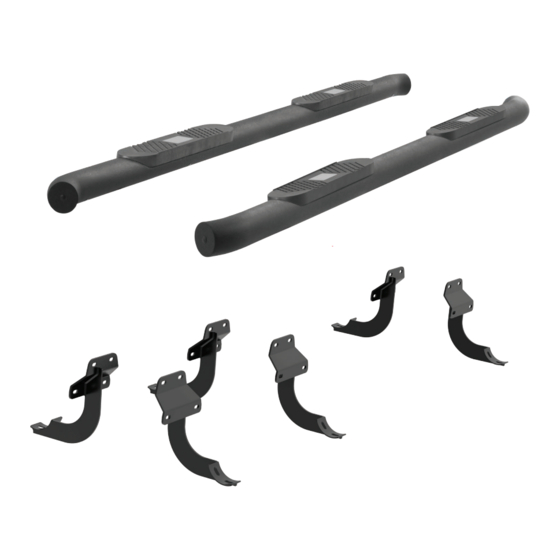

Product Image
Brackets and Hardware
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
Advertisement
Table of Contents
Related Manuals for Aries AL233043
Summary of Contents for Aries AL233043
- Page 1 Socket, 13mm Front Brackets and Hardware Notes and Maintenance Before you begin installation, read all instructions thoroughly. Proper tools will improve the quality of installation and reduce the time required. • ARIESAUTOMOTIVE.COM PAGE 1 • AL233043-INS-RB • 877.287.8634 • NEED ASSISTANCE?
- Page 2 Step 4 Add an 8mm flat washer, and secure with a nylock nut. Snug the hardware with a 13mm socket, but do not fully tighten. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • AL233043-INS-RB • PAGE 2...
- Page 3 Remember to do periodic inspections to make sure that all hardware is secure and tight. Congratulations on the installation of your brand new ARIES 4" Big Step side bars. • ARIESAUTOMOTIVE.COM PAGE 3 • AL233043-INS-RB • 877.287.8634 • NEED ASSISTANCE?
