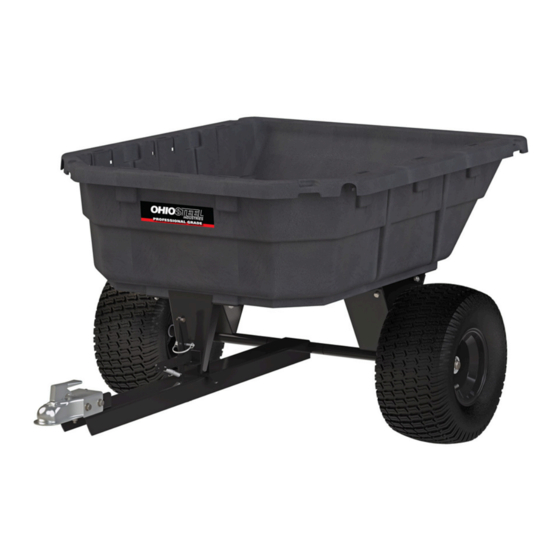

- Page 1 4048P-ATV 12.5 cu ft POLY ATV DUMP CART READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT 321041 - REV A 5/11...
-
Page 2: Safety Rules
Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this ATV/UTV attachment. -
Page 3: Carton Contents
Carton Contents 10 (x2) 7 (x1) 1 (x1) 8 (x2) 9 (x1) 4 (x1) 2 (x1) 12 (x2) 13 (x1) 6 (x4) 15 (x1) 11 (x1) 20 (x14) 5 (x2) 22 (x14) 21 (x12) 14 (x1) 3 (x12) 18 (x12) 16 (x1) 19 (x1) 17 (x2) - Page 4 Assembly Instructions Attach latch to latch post and assemble latch mechanism using hardware as shown. Attach hitch coupler plate to drawbar and tighten with hardware as shown. Attach 1-7/8" ball coupler to hitch plate on both sides and tighten with hardware as shown.
- Page 5 Assembly Instructions Attach axle supports to poly body loosely with hardware as shown. Attach axle holder assemblies to supports loosely with hardware as shown. Attach front support loosely to poly body with hardware as shown.
- Page 6 Assembly Instructions Slide axle all the way through axle holders and drawbar assembly then latch to front support. * BE SURE TO TIGHTEN ALL HARDWARE AT THIS TIME Slide washer, spacer, wheel, spacer onto axle and secure with cotter pins as shown.
- Page 7 Operating Instructions Before Using Dump Cart: Apply lithium grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 24 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your ATV or UTV.
- Page 8 Do-It-Yourself Accessories 35.13 31.63 USE 1/2" PLYWOOD 35.25 USE STANDARD 2 X 4 34.00 13.00 45.00 13.00 13.00 USE NOMINAL GRADE C 1 X 3...
-
Page 9: Warranty
United States. In the space below record the purchase date of your Dump Cart. Model Number 4048P-ATV Purchase Date Keep this Owner's Manual and your receipt in a safe place for future reference. After the two year warranty period all replacement parts may be ordered by calling 1-800-652-2321 . -
Page 10: Repair Parts
Repair Parts REPLACEMENT PARTS ORDERING OHIO STEEL INDUSTRIES 1-800-652-2321... - Page 11 Notes...
- Page 12 Designed And Tested In Columbus, Ohio Manufactured In The U.S.A. From Domestic And Imported Components MODEL # 4048P-ATV 2575 Ferris Road Columbus, OH 43224 (800) 652-2321 www.OHIOSTEEL.com (800) 652-2321...
