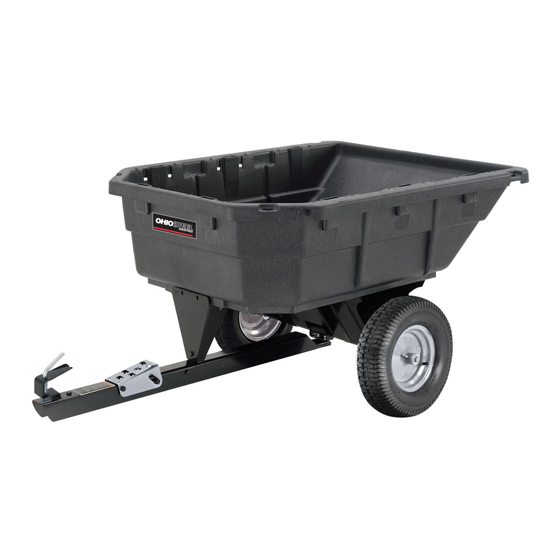

- Page 1 1000P-SD 15 cu ft POLY SWIVEL DUMP CART U.S. Patent No. 8,496,298 & 9,242,588 READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT 6004145 - REV A 11/17...
-
Page 2: Safety Rules
Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this tractor attachment. -
Page 3: Tools Required For Assembly
Carton Contents 1 (x1) 2 (x1) 19 (x1) 20 (x1) 3 (x1) 21 (x1) 22 (x2) 23 (x4) 25 (x12) 26 (x12) 24 (x2) 18 (x1) 27 (x2) TOOLS REQUIRED FOR ASSEMBLY: • 1/2" Wrench or Socket • Grease Gun... - Page 4 Assembly Instructions Attach Undercarriage to Poly Body and tighten hardware. Attach Front Support to Poly Body and tighten hardware. Insert Axle into Undercarriage halfway as shown. Center Spacer inside Swivel Clevis and align with Axle.
- Page 5 Assembly Instructions Slide Axle completely through Undercarriage; Swivel Clevis and Spacer must be captured by Axle. Align Drawbar with Front Support and press down to latch. Slide in order: 1" Washers, 2" Spacers and then Wheels onto Axle and secure with Hairpins. NOTE: WHEELS IN MODEL NOT SHOWN TO SCALE...
- Page 6 Operating Instructions Before Using Dump Cart: Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 28 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the supplied hitch pin.
- Page 7 Do-It-Yourself Accessories 35.13 31.63 USE 1/2" PLYWOOD 35.25 USE STANDARD 2 X 4 34.00 13.00 45.00 13.00 13.00 USE NOMINAL GRADE C 1 X 3...
-
Page 8: Warranty
• Paint that is worn or faded due to normal use or exposure. To arrange for product repair visit ohiosteel.com/partsstore and fill out the warranty repair form. You can also call 1-800-652-2321 to speak to our Customer Service Team, or return this product to place of purchase for replacement. -
Page 9: Exploded View
5/16-18 Flange Lock Nut 12 6000305 Foot Pedal 300084 Hairpin Cotter, 2-5/16" 6000309 Latch 6004145 Owners Manual 300075 1/2" USS Washer 6001667 Hardware Bolt Bag 6000368 Spring Washer 6000695 Decal, Ohio Steel 6000325 Latch Spring 6000312 Swivel Clevis ohiosteel.com/partsstore OHIO STEEL INDUSTRIES 1-800-652-2321... -
Page 10: Repair Kits
6000383 WELDED DRAWBAR Before you call… Please email our customer service team at cs@ohiosteel.com with: 1. A description of the issue you are having 2. Photos of the issue that include an overall view and detailed view from multiple angles 3. - Page 11 Designed And Tested In Columbus, Ohio Manufactured In The U.S.A. From Domestic And Imported Components MODEL # 1000P-SD 2575 Ferris Road Columbus, OH 43224 (800) 652-2321 www.OHIOSTEEL.com (800) 652-2321...
