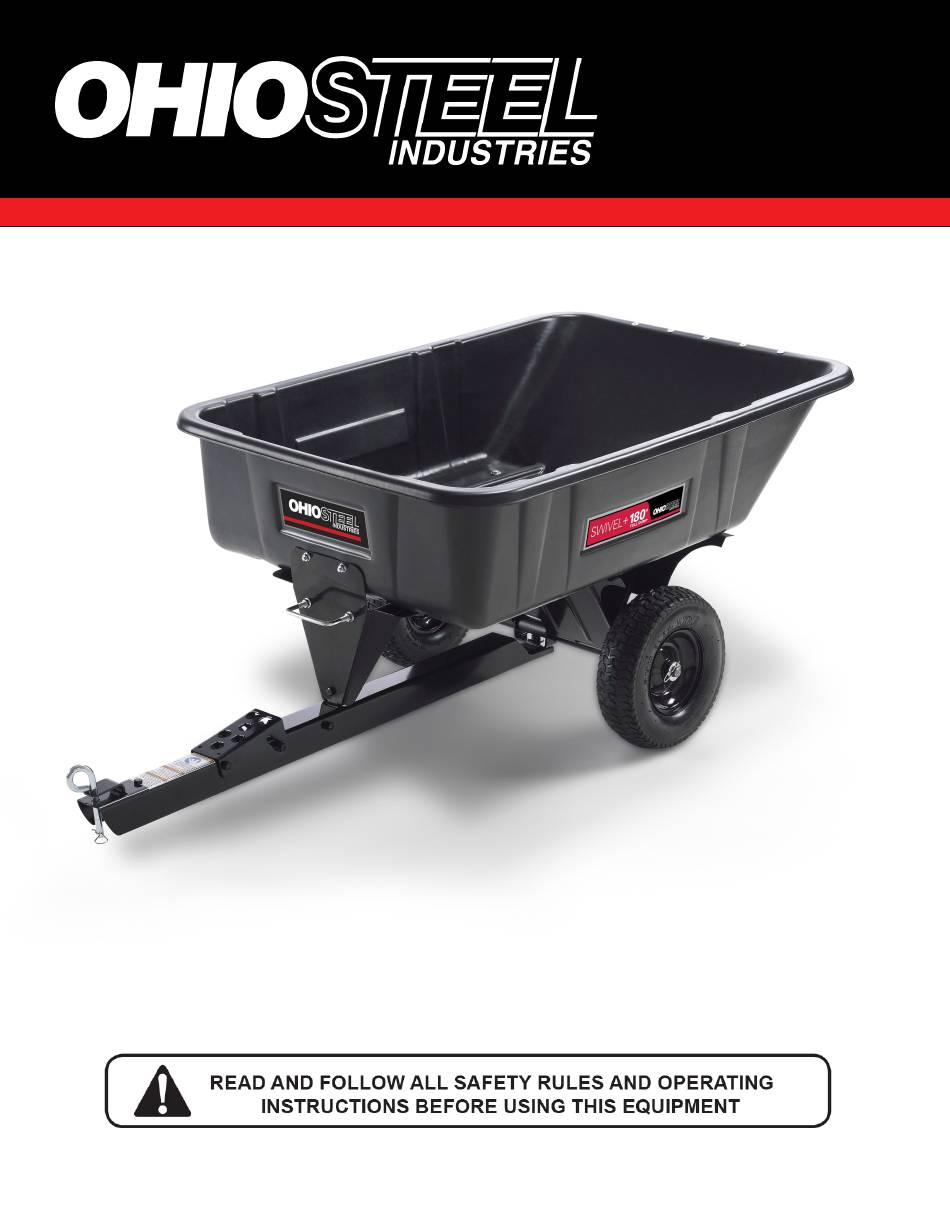

- Page 1 3040P-SD180 SWIVEL 180° FULL DUMP CART 6002798-REV A 11/13 Assembled in U.S.A. of domestic and imported components...
-
Page 2: Safety Rules
Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this tractor attachment. -
Page 3: Tools Required For Assembly
Carton Contents 1 (x1) 2 (x1) 5 (x1) 4 (x2) 34 (x1) 12 (x12) 13 (x12) 15 (x1) 14 (x12) 17 (x2) 6 (x1) 9 (x1) 10 (x4) 18 (x3) 16 (x2) 11 (x2) 8 (x1) 3 (x1) 19 (x1) TOOLS REQUIRED FOR ASSEMBLY: •... - Page 4 Assembly Instructions Attach Undercarriage to Poly Body and loosely tighten with hardware as shown. DO NOT TIGHTEN HARDWARE AT THIS TIME Attach Front Support loosely to Poly Body as shown. Insert Handle with two Flange Hex Nut on either side of the Front Support as shown. Handle with Flange Hex Nuts on either side Insert Axle into Rear Support halfway as shown.
- Page 5 Assembly Instructions Slide Axle completely through Rear Assembly; Swivel Clevis and Spacer must be captured by Axle as well. Align Drawbar with Front Support and press down to latch. Tighten bolts of the Rear assembly to the Hopper Hinge Bracket as shown. Tighten all other hardware.
- Page 6 Operating Instructions Before Using Dump Cart: Check tire pressure and inflate to 30 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the supplied hitch pin. Do not exceed 600 pounds when loading material into the cart body.
-
Page 7: Warranty
United States. In the space below record the purchase date of your Dump Cart. Model Number 3040P-SD180 Purchase Date Keep this Owner's Manual and your receipt in a safe place for future reference. After the two year warranty period all replacement parts may be ordered by calling 1-800-652-2321 . -
Page 8: Repair Parts
6002546 HARDWARE, BOLT BAG 6000337 THIN NYLOCK HEX NUT, 3/8"-16 6000700 DECAL, OSI 300084 HAIRPIN COTTER 6000812 KIT, 3/4" POLY WHEEL BUSHINGS 6000533 PIN, HITCH 6002802 DECAL, 3040P-SD180 6000369 SHOULDER BOLT, 1/2" X 3/8" REPLACEMENT PARTS ORDERING OHIO STEEL INDUSTRIES 1-800-652-2321... - Page 9 Notes...
- Page 10 (800) 652-2321...
