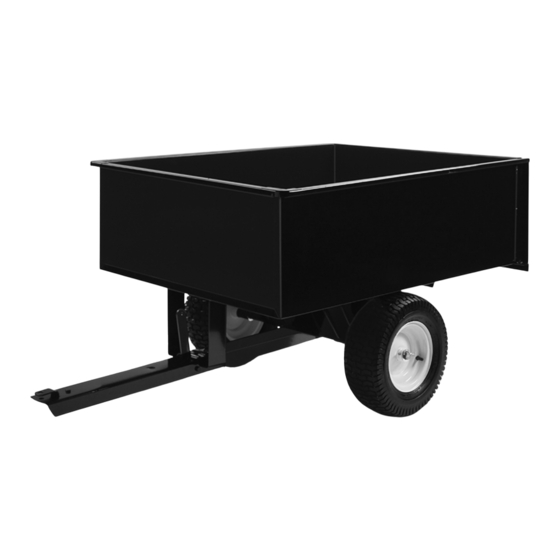

17 cubic foot lawn cart

Advertisement

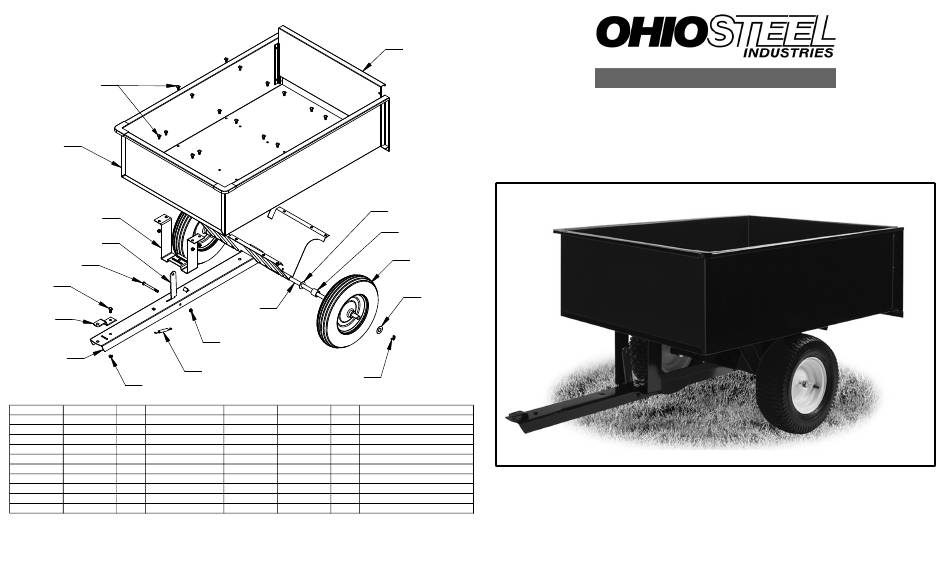

REPAIR PARTS LIST
Model No. 34601
17 Cu. Ft. Dump Cart
25, 25N
1
9
13
14
28
16
12
28K
REF. NO.
PART NO.
AMT. DESCRIPTION
1
17-1
1
CART BODY
2
17-2
1
TAIL GATE
9A
17-9A
1
FRONT SUPPORT
11
17-11
1
AXLE HOLDER
12
17-12A
1
HITCH ASSEMBLY
13
17-13A
1
LATCH POST
14
17-14A
1
*LATCH BOLT
15
17-15A
1
LATCH SPRING
16
17-16A
1
HITCH BRACKET
17
17-17
1
AXLE
When ordering repair parts always give the following information.
PRODUCT NAME, MODEL NUMBER, PART NUMBER and PART DESCRIPTION.
* Denotes standard hardware items that can be purchased locally.
17
28K
15
32
REF. NO.
PART NO.
AMT. DESCRIPTION
18
17-18
2
SPACER
19
17-19
4
*AXLE WASHER
21
17-21
2
TIRE
25
17-25
16
*BOLT 5/16 X 3/4 PAN
25N
17-25N
16
*HEX NUT 5/16
28
17-28
1
*BOLT 3/8 X 3/4 HEX
28K
17-28K
1
*KEPS NUT 3/8
32
17-32
2
*COTTER PIN 1/8 X 1 1/2"
33
17-33
1
USER GUIDE
2
17 CUBIC FOOT LAWN CART
19
18
21
19
CAUTION:
READ AND FOLLOW
ALL SAFETY RULES
AND INSTRUCTIONS
BEFORE USING
THIS EQUIPMENT.
34601
USER GUIDE AND PARTS LIST
OHIO STEEL INDUSTRIES
2575 FERRIS ROAD
COLUMBUS, OH 43224-2597
34601-REV-A
12_04
