Summary of Contents for ADJ ADJ- UBL600

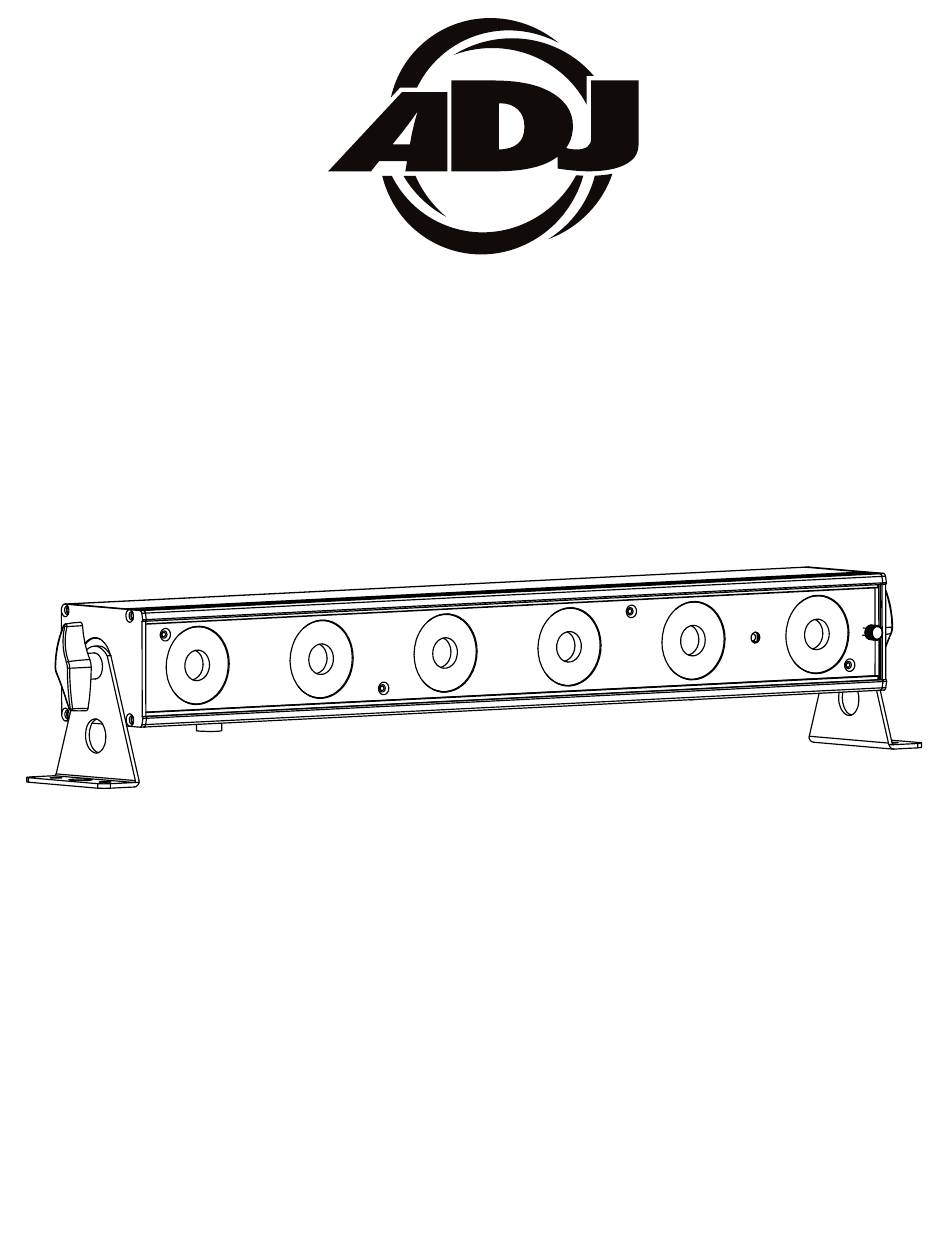

- Page 1 UBL6H User Instructions...
- Page 2 ©2025 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
- Page 3 C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Overview Installation Accessory Installation Wireless Operation IR Button Colors Remote Device Management (RDM) System Menu DMX Setup DMX Traits Pixel Grouping Color Macros Chart Dim Speeds Dim Modes...
- Page 4 I N T R O D U C T I O N Unpacking: Thank you for purchasing the Par Z150 RGBA by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.
- Page 5 All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
- Page 6 Smooth RGBAL+UV color mixing • Horizontal Magnetic Alignment feature (Built-In) • • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters) INCLUDED ITEMS Power Cable (x1) • UC-IR24 Remote Control (x1) •...
- Page 7 S A F E T Y P R E C A U T I O N S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER.
- Page 8 S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.
- Page 9 O V E R V I E W Bracket Mode Display Bracket Adjustment Button Screen Button Adjustment Knob Knob Mounting Power Fuse Setup Down Safety Power Mounting Bracket (250V 2A) Button Button Cable Bracket Loop...
- Page 10 I N S TA L L AT I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations. When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of the unit and any attached accessories without any deformation.
- Page 11 I N S TA L L AT I O N CLAMP MOUNTING This fixture features two mounting brackets for the attachment of mounting clamps. When mount- ing the fixture to a truss or any other suspended structure, be sure to secure an appropriate rated clamp (not included) to each mounting bracket.
- Page 12 I N S TA L L AT I O N The unit is fully operational in three different mounting positions: hanging upside-down from the ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decorations, etc).
- Page 13 A C C E S S O R Y I N S TA L L AT I O N DIFFUSION FILTER A removeable 20-degree diffusion filter is included with the fixture. To install this filter, simply remove the retaining screw on the side of the fixture’s lens and slide the diffusion filter into the slot located in front of the lens.
- Page 14 W I R E L E S S O P E R AT I O N To set up wireless control, follow the steps below: 1. Navigate to Personality > IR Remote in the system menu. Press SETUP to select this menu. 2.
- Page 15 I R B U T T O N C O L O R IR DEFAULT VALUES BUTTON GREEN BLUE LIME AMBER EDITING IR BUTTON VALUES These fixtures allow the user to create custom RGBAL values and assign them to the numbered keys (0-15) on the remote control.
- Page 16 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.
- Page 17 S Y S T E M M E N U This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the SETUP button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options.
- Page 18 S Y S T E M M E N U SYSTEM MENU OPTIONS/VALUES (Default settings in bold) DESCRIPTION Address 001 - 512 Set DMX starting address Ch. Mode 6Ch, 11Ch, 13Ch, 16Ch, 18Ch, 25Ch, 28Ch Select DMX channel mode Holds last settings if DMX Hold signal is lost or interrupted Defaults to blackout mode if...
- Page 19 S Y S T E M M E N U SYSTEM MENU OPTIONS/VALUES (Default settings in bold) DESCRIPTION 000 - 255 Green 000 - 255 Blue 000 - 255 Amber 000 - 255 Lime 000 - 255 Manually set each system 000 - 255 parameter;...
- Page 20 D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 21 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. DMX ADDRESSING.
- Page 22 D M X T R A I T S CHANNEL VALUES FUNCTION 11Ch 13Ch 16Ch 18Ch 25Ch 28Ch 000 - 255 All Red, 0% to 100% 000 - 255 All Green, 0% to 100% 000 - 255 All Blue, 0% to 100% 000 - 255 All Amber, 0% to 100% 000 - 255 All Lime, 0% to 100% 000 - 255 All UV, 0% to 100%...
- Page 23 D M X T R A I T S CHANNEL FUNCTION VALUES 11Ch 13Ch 16Ch 18Ch 25Ch 28Ch Shutter / Strobe 000 - 031 LEDs Off 032 - 063 LEDs On 064 - 095 Strobe Effect, slow to fast 096 - 127 LEDs On 128 - 159 Pulse Effect in Sequences 160 - 191 LEDs On 192 - 223 Random Strobe Effect, slow to fast...
- Page 24 P I X E L G R O U P I N G PIXEL FLIP OFF PIXEL FLIP ON...
- Page 25 C O L O R M A C R O S C H A R T DMX VALUES COLORS DMX VALUES COLORS 000 - 003 128 - 131 G+B+L 004 - 007 132 - 135 G+B+A 008 - 011 Green 136 - 139 G+B+UV 012 - 015...
- Page 26 D I M S P E E D S DMX VALUES DELAY TIME 0.1 sec 0.2 sec 0.3 sec 0.4 sec 0.5 sec 0.6 sec 0.7 sec 0.8 sec 0.9 sec 1.0 sec 1.5 sec 2.0 sec 3.0 sec 4.0 sec 5.0 sec 6.0 sec 7.0 sec...
- Page 27 D I M M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100...
- Page 28 P R I M A R Y- S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can be programmed to act as the Primary.
- Page 29 Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
- Page 30 D I M E N S I O N A L D R AW I N G S 86.5mm 65mm [3.4in] [2.6in] 103.8mm [4.1in] 98mm [3.9in] 106.7mm [4.2in]...
- Page 31 CE / ETL / FCC • Horizontal Magnetic Alignment feature (Built- • IP20 • • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters) • RDM Compatible Control: Linear Color Temperature Control (2,300K to •...
- Page 32 O P T I O N A L A C C E S S O R I E S ORDER CODE (US) ORDER CODE (EU) DESCRIPTION 1x40° Linear Diffusion Lens UBL613 F C C S TAT E M E N T Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
