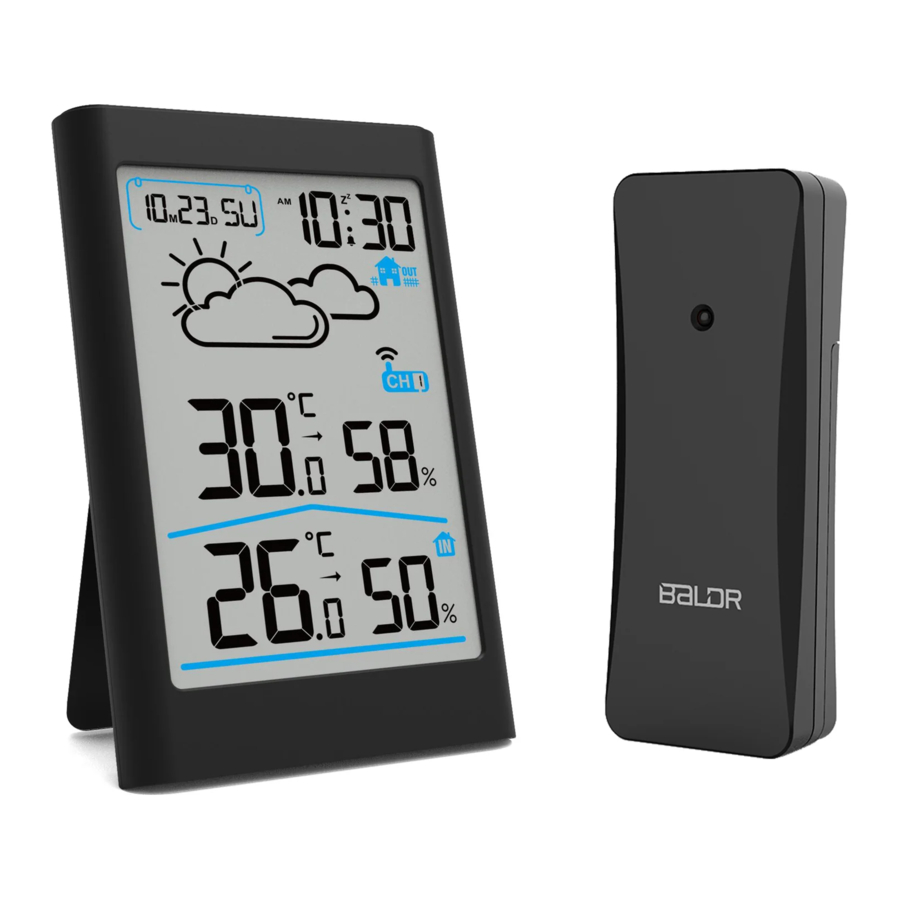

BALDR B0341WST2H2-V3 - WIRELESS WEATHER STATION WITH BACKLIGHT MANUAL

POWER ON

Main Unit Installation

Step 1. Remove the battery compartment cover and insert 2xAAA batteries.

Sensor Installation

Step 1. Select the channel you desired to use.

Step 2. Load the 2xAA batteries in 3 minutes to ensure

RF signal received in time.

NOTE:

• If not powered on in 3 minutes from the main unit powered on
• Press and hold "CH/" button for 3 seconds to search RF signal again.

MAIN UNIT SETUP

After Power On

LCD will full display for 3 seconds with "BI" sound.

After 3 seconds, the LCD will display as below

1. Current time
2. Date and weekday
3. Weather forecast
4. Outdoor temperature and humidity
5. Indoor temperature and humidity

Press "CH/"button to select the channel on main unit you desire to use (Default in CH1)

Select the same channel number for both the sensor and the main unit in order to synchronize.

RF Signal Searching

The receiving antenna signal is flashing.

RF Signal Received

The receiving antenna signal will stop flashing.

Manual Setup

• Press and hold "SET/C/F" button to enter into setup (3 seconds).


• Press and release "SET/C/F" button to skip setting or go to next setting option (1 second).

  Press "CH/" button to increase the values.


  Press "MEM/ " button to decrease the values.

SETUP ORDER

Tips: press and hold "CH/" or "MEM/ " button will quickly change the value by 8 steps.
