USER MANUAL
WIRELESS WEATHER STATION
(Please Keep the Manual for Maintenance)
Thank you for choosing BALDR wireless weather station,
any help needed, please feel free to contact us :
Email：baldrservice@baldr.com
Phone：1-833-381-5659
WEB：www.baldr.com
English
Deutsche
Français
Italiano
Español
MODEL:B0341WST2H2-V3
1-19
20-38
39-56
57-74
75-93
Advertisement
Table of Contents
Related Manuals for BALDR B0341WST2H2-V3
Summary of Contents for BALDR B0341WST2H2-V3

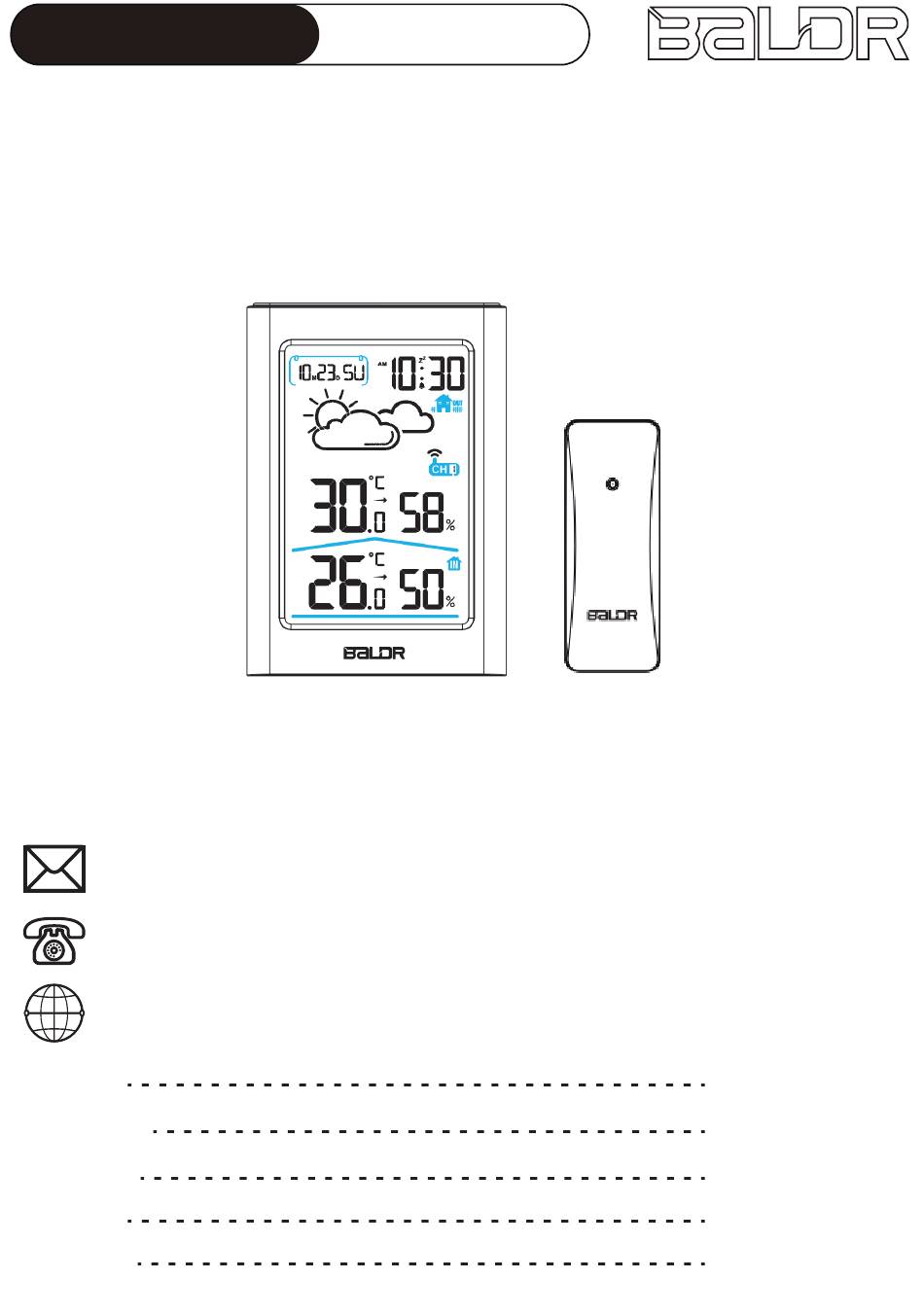

- Page 1 USER MANUAL MODEL:B0341WST2H2-V3 WIRELESS WEATHER STATION (Please Keep the Manual for Maintenance) Thank you for choosing BALDR wireless weather station, any help needed, please feel free to contact us : Email：baldrservice@baldr.com Phone：1-833-381-5659 WEB：www.baldr.com English 1-19 Deutsche 20-38 Français 39-56 Italiano 57-74 Español...
-
Page 3: Table Of Contents
Contents 1.PRODUCT OVERVIEW 1.1 Package List 1.2 Product Appearance 1.3 Button Function 2.QUICK SETUP 2.1 Before Start 2.2 Initial Setting 3.MULTIFUNCTIONAL WEATHER STATION 3.1 The Working Principle of Weather Station and Sensor 3.2 Temperature & Humidity Display 3.3 Weather Forecast 3.4 Channel Modes 3.5 Alarm Setting 3.6 Backlight... -
Page 4: Product Overview
1.PRODUCT OVERVIEW 1.1 Package List ITEM NO. ITEM NAME FIGURE Main Unit Outdoor Sensor User Manual... -

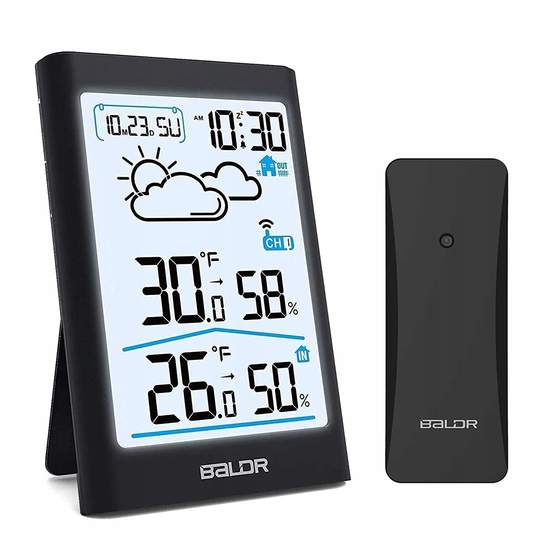

Page 5: Product Appearance
1.2 Product Appearance Part 1- Weather Station Main Unit Display Screen (1) Calendar 7th & 8th page (2) Time or Alarm Time 7th &14th page (3) Weather Forecast 13th page (4) Outdoor Sensor Channel 11th &13th page (5) Outdoor Temperature 12th page (6) Outdoor Humidity 12th page... - Page 6 Part 2- Weather Station Main Unit Back (1) " " Button 6th & 15th page (2) "ALARM" Button 6th &14th page (3) "MEM /▼" Button 6th & 12th page (4) "CH/▲ "Button 6th &13th page (5) "SET/C/F "Button 6th &11th page (6) Hanging Hole (7) Battery Compartment (8) Stand Bracket...
- Page 7 To get accurate readings, please keep the main unit away from any unusual source of heat or cold and make sure that the outdoor sensor is also protected from direct sunlight, rain, or the heat it may experience from being mounted on a warm wall, or be closed near to a warm wall.
-
Page 8: Button Function
1.3 Button &Function Button ALARM MEM /▼ CH/▲ SET/C/F Function Select Check Alarm Check Channel Backlight Time, MAX/MIN CH1/CH2/CH3, Press Select°C/℉ for 20s Open/Close Records Adjust Channel Alarm Modes Normal Set Time/ Mode Calendar/ Clear Set Alarm Channel Week MAX/MIN Hold Time Searching... -
Page 9: Quick Setup
2.QUICK SETUP 2.1 Before Start (1) 2*AAA and 2*AA batteries should be prepared. (2) Use new and high quality alkaline batteries. (3) Never mix the old and new batteries. (4) Heavy duty or low quality recharge batteries are not recommended. 2.2 Initial Setting Step 1: Get the Indoor and Outdoor Humidity &... - Page 10 Press “ CH/▲” or “MEM/▼” button to select the 12 or 24 hour mode. Press "Set/C/F" button to confirm. (2) Hour: The “Hour” symbol begins to flash. Press “ CH/▲” or “MEM/▼” button to adjust the value. Press "Set/C/F" button to confirm. (3) Minute: The “Minute”...
- Page 11 (9) Key Tone: The “ON ” display will flash. Default setting is ON. Press the “ CH/▲” or “MEM/▼” button to turn ON or OFF. Press the "Set/C/F" button to confirm. After all above steps are finished, the device will automatically exit.
- Page 12 (1) This is forbidden, if the outdoor sensor is directly exposed to rain, facing direct sunlight and close to any heat source. (2) Keep well-ventilated and leave a certain space of gap between the sensor and the wall to avoid blocking the vent of the sensor. (3) Place the sensor at a height about 1.2-2.5 meters/3.93-8.20 feet vertically.
-
Page 13: Multifunctional Weather Station
Lift with a rope stable surface hole using a nail Please search "BALDR" on Youtube to Find the English Setting Video. 3.MULTIFUNCTIONAL WEATHER STATION 3.1 The Working Principle of Weather Station and Sensor After the two devices are powered on, the sensor will connect to the main unit and transfer the signal to the main unit. - Page 14 3.2.2 Temperature& Humidity Range Indoor temperature range: -10℃-50℃(14℉-122℉). Outdoor temperature range：-20℃-60℃(-4℉-149℉). Indoor and outdoor humidity range:1%-99%RH. Note: If the temperature and humidity readings are below the above range, the “LL.L”or “LL” will be displayed. If the temperature and humidity readings are above the above range, the “HH.H”...
-
Page 15: Weather Forecast
3.3 Weather Forecast Weather Icons Sunny Partly Cloudy Cloudy Rainy Snowy The weather icon, where data hourly calculated from indoor/outdoor temperature and humidity forecasts the weather in the next 12 hours. IT IS NOT THE CURRENT WEATHER. The accuracy will be 70%-75% . Please note that this forecast can’t compare with professional weather services supported by satellites and high-performance computers. -
Page 16: Alarm Setting
You can purchase extra BALDR sensors to expand the monitoring scope based on one sensor＇ s kit. 3.4.3 Single Channel Mode Change to Circular Channels Mode (1) When main unit’s channel is CH1, press the “CH/▲” button 3 times to switch into Circular Channels Mode. -
Page 17: Backlight
3.5.2 Check Alarm Time (1) Press “ALARM” button to check alarm time. (2) Press “ ” button to exit. 3.5.3 Alarm OFF/ON (1) Press “ALARM” button to turn OFF/ON alarm. (2) Alarm symbol “ ” will disappear on screen when in OFF mode or show on screen when in ON mode. -
Page 18: Low Battery Indication
3.7 Low Battery Indication When the power is about to run out, any buttons and operations will not respond. If the battery icon appears on the right side of the indoor data, the batteries of main unit should be replaced soon. If the battery icon appears on the right side of the outdoor data, the batteries of sensor should be replaced soon. - Page 19 Avoid thick walls between the units or or distance strong interference source using same signal frequency (433ghz).(such as tvs, microwaves, computers, etc). If your BALDR weather station still can't be worked well after trying the troubleshooting steps, please email us by baldrservice@baldr.com for help.
