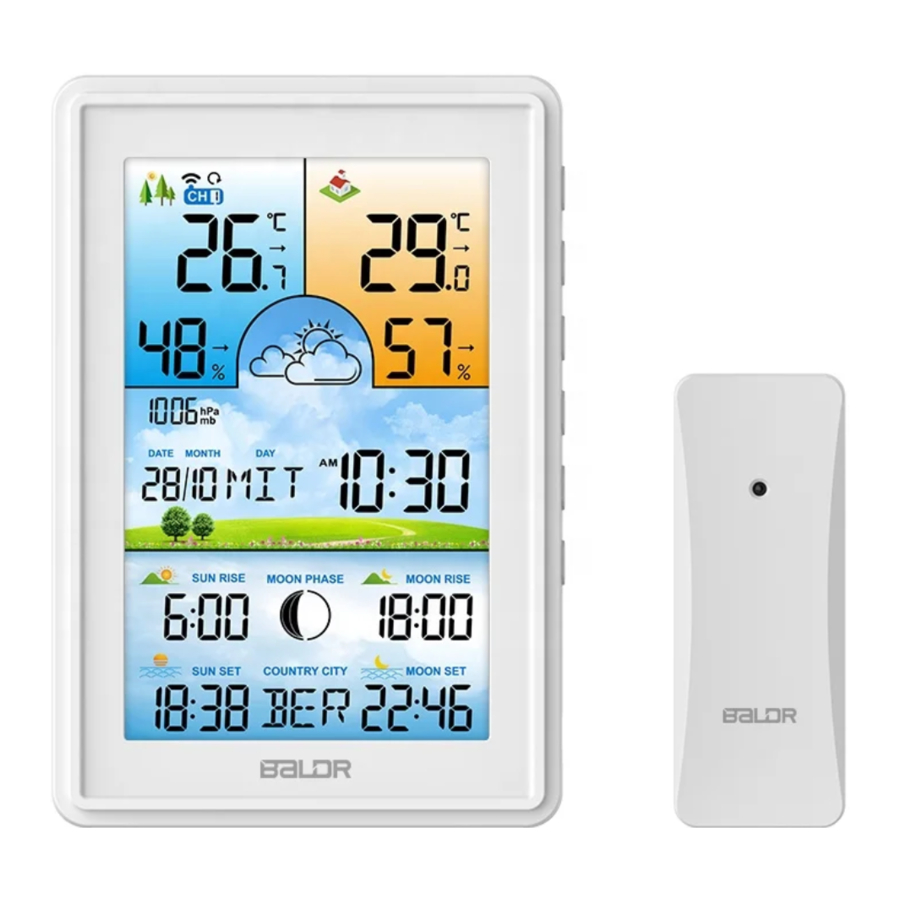

BALDR B0360WST2H2PR-V2 - COLOR RADIO-CONTROLLED WEATHER STATION MANUAL

POWER ON

Main Unit Installation

Step 1. Peel off the protecting mask of main unit.

Step 2. Plug the AC Adaptor to a powered outlet or insert 3xAAA batteries matching the polarity(+/-)

Sensor Installation

Step 1. Select the channel on sensor you desired to use

Step 2. Load the 2xAA batteries in 3 minutes to ensure RF signal received in time.

NOTE:

If not powered on within 3 minutes from the main unit powered on.
Press and hold"▲/CH" button for 3 seconds to search RF signal again.

MAIN UNIT SETUP

After Power On

LCD will full display for 3 seconds with "BI" sound.

After 3 seconds, the LCD will display the data as below

RF Signal Searching

The receiving antenna signal is flashing.

RF Signal Received

Automatically display, and the antenna signal will stop flash.

RCC Atomic Radio Signal Receiving Mode Automatically starts after powering up

The antenna symbol is flashing. The screen will go dark for 7 minutes. No buttons except "" button will function during the period.

Press "" button will allow exiting the Atomic mode to continue manual setup.

No RCC Radio Signal Received

The antenna symbol will disappear

Press "" button to search RCC signal radio signal again.

Manual setup

• Press and hold "" button to enter into setup (3 seconds).
• Press and release "" button to skip setting or go to next setting option(1 second).

SETUP ORDER

Press "▲/RCC" button to increase the values.

Press "▼/MEM" button to decrease the values.

*Tips: press and hold "▲/RCC" or "▼/MEM" button will quickly change the value.

This Quick Start is to help you quickly set up the product. For detailed settings, please refer to the user manual, or scan the QR code below for relevant product information and operation video link. Thank you.

www.baldr.com
