BALDR B0359WST4H4P User Manual

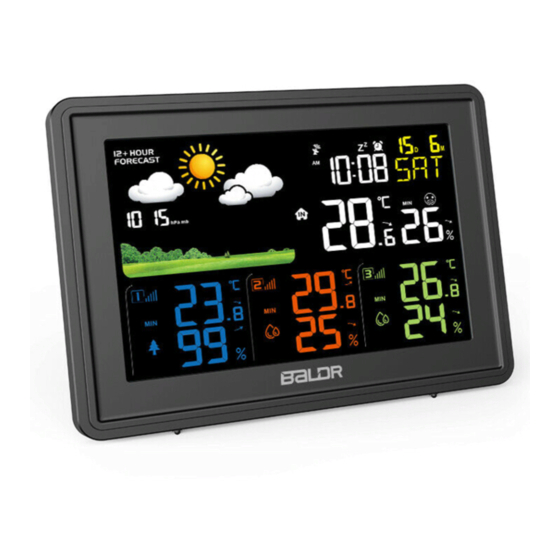

Wireless color weather station with 3 remote sensors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
WIRELESS COLOR WEATHER STATION
WITH 3 REMOTE SENSORS
inHg
mmHg
hPa mb
We thank you for your purchase of Baldr wireless color
weather station with 3 remote sensors.It has been designed
and constructed using innovative components and techniques
to enable the perfect display. Please read the instructions
carefully to become familiar with the properties and functions
before you use the unit.
For the start-up of this device:
Main unit by Ac adaptor (included) and 1x CR2032 (included)
Sensor by 6 x AA batteries (not included)
MODEL:B0359WST4H4P
(NO RCC)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B0359WST4H4P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BALDR B0359WST4H4P

Summary of Contents for BALDR B0359WST4H4P

  • Page 1 WITH 3 REMOTE SENSORS inHg mmHg hPa mb We thank you for your purchase of Baldr wireless color weather station with 3 remote sensors.It has been designed and constructed using innovative components and techniques to enable the perfect display. Please read the instructions carefully to become familiar with the properties and functions before you use the unit.

  • Page 2: Main Unit

    OVERVIEW MAIN UNIT inHg mmHg hPa mb 1. Temperature and humidity of channel 1/2/3 2. Max/min record of channel 1/2/3 3. Indoor temperature and humidity 4. Max/min record of indoor temperature and humidity 5. Three comfort level indication...
  • Page 3 13. “ CH ” button 6. Weather forecast Clear sensors data and Weather forecast for next re-registration 12-24 hours 7. Barometric pressure 14. “ ▲ ” button Switch C/F or Increase the Barometer display in mmHg, data inHg or hPa/mb 15.

  • Page 4: Outdoor Sensor

    Positive pole Pick out OUTDOOR SENSOR 1. Signal light 2. Hanging hole 3. Battery compartment 4. Channel 1-2-3 switch...

  • Page 5: Package Content

    3 x Remote Sensors 1 x AC Adaptor 1 x CR2032 Cell Battery 1 x User Manual GETTING START BALDR recommends high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.

  • Page 6: Main Unit Installation

    MAIN UNIT INSTALLATION Remove the cell battery’s Insulating strip ,then plug the adaptor to a powered outlet. SENSOR INSTALLATION 1. Remove the battery compartment cover; 2. Insert 2 x AA batteries in each sensor matching the polarity （+and-); 3. Replace the battery cover. SENSOR SETUP ●...
  • Page 7 Weekday Pressure Unit Display Time Date Format Display Date Language 0:00 hPa/mb 15.June 2020 (24H format) Temperature Unit Alarm Time 0:00 Alarm OFF ℃ Barometer Calibration ● After power on, the pressure reading will be flashing for 10 seconds. If there is no need for calibration, touch the top button to exit setting.
  • Page 8 Manual Settings 1. Press and hold “ SET ” button to enter into setting, press “ SET ”button to the next setting option. 2. Press “ SET ” to select Weekday Language. Default setting :GER. Press the“▲” or “ ▼ ” button to select languages: ENG、GER、ITA、FRE、DUT、SPA、DAN optional .

  • Page 9: Alarm Function

    12. During setting, touch top button to save and exit setting. 13. During setting, if no operation for 10 seconds, it will automatically save and exit setting. ALARM FUNCTION Alarm Time Setting 1. Press and hold “ ” button to enter into alarm time setting. 2.
  • Page 10 2. Or when alarm is ringing, press the top button to activate snooze function. The alarm will ring again in 5 minutes snooze interval. And the “ ” symbol will be flashing on screen to indicate the snooze mode. Press any other button except top button to exit the snooze mode.
  • Page 11 2. Indoor temperature display range:-10℃~ 50.0℃(14℉~ 122℉); for temperature lower than -10℃,the reading will be :”LL.L”; for temperature higher than +50℃,the reading will be :”HH.H”. 3. Outdoor temperature display range :-40℃~60℃(-40℉~ 140℉); for temperature lower than -40℃,the reading will be :”LL.L”; for temperature higher than +60℃,the reading will be :”HH.H”.

  • Page 12: Weather Forecast

    4. Arrow indication for humidity changes: will display when humidity changes less than 3% RH within one hour or compared with last reading; will display when the reading increase by 3% RH within one hour or compared with last reading. will display when the reading decrease by 3% RH within one hour or compared with last reading.

  • Page 13: Adjustable Backlight

    ADJUSTABLE BACKLIGHT ● After powering on, touch “ ” button to adjust the brightness of the backlight. ● Backlight brightness can be selected from 3%,50%,100% and off. LOW BATTERY INDICATORS ● About Outdoor Sensor: When battery indicator shows next to the outdoor temperature, replace batteries in your outdoor sensor.
  • Page 14 3. Reload batteries in outdoor sensor. 4. Reload batteries in main unit. 5. Let both units sit within a couple feet of each other for a few minutes to gain a strong connection before taking sensor to outdoor area. No outdoor 1.
  • Page 15 “LL.L” will display outdoor on screen for indication. temperature If your BALDR product does not operate properly after trying the troubleshooting steps, please contact the seller on your order page or shoot an email to: service@baldr.com. PLACEMENT INSTRUCTION BALDR sensors are sensitive to surrounding environmental conditions.
  • Page 16 Outdoor Sensor Placement Sensor must be placed outside to observe outdoor conditions. Sensor is water resistant for water splashes and is designed for general outdoor use, however, to extend its life place the sensor in an area protected from direct weather elements. The best location is 1.2 to 2.4 meters (4 to 8 feet) above the ground with permanent shade and plenty of fresh air to circulate around the sensor.
  • Page 17 Collection of such waste separately for special treatment is necessary. Warranty BALDR provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. Warranty service can only be performed by our authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to us, or our authorized service center.
  • Page 18 To receive warranty service, the purchaser must contact with BALDR nominated service center for the problem determination and service procedure. Thank you for your choice of BALDR products! www.baldr.com service@baldr.com...
  • Page 19 Remarks...
  • Page 20 Remarks...
