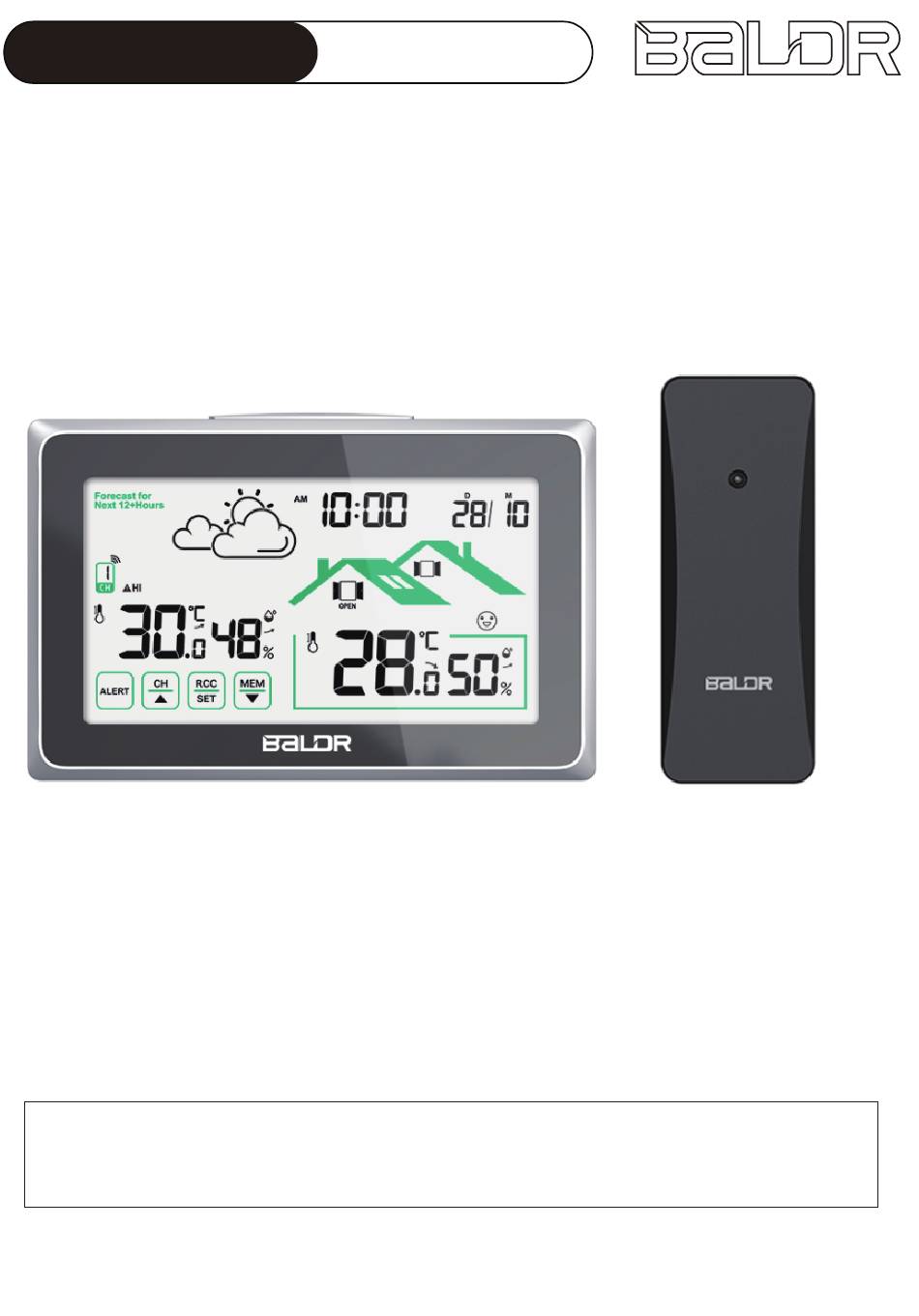

USER MANUAL
TOUCH SCREEN WIRELESS WEATHER
STATION WITH OUTDOOR TEMPERATURE
ALERTS
We thank you for your purchase of Baldr Touch Screen Wireless
Weather Station with Outdoor Temperature Alerts. It has been
designed and constructed using innovative components and tech-
niques to enable the perfect display. Please read the instructions
carefully to become familiar with the properties and functions
before you use the unit.
For the start-up of this device:
Main unit by 3 x AAA Batteries (not included)
Sensor by 2 x AA batteries (not included)
MODEL:B0340WST2H2R-V8
(UK VERSION)
Advertisement
Table of Contents
Related Manuals for BALDR B0340WST2H2R-V8
Summary of Contents for BALDR B0340WST2H2R-V8
- Page 1 TOUCH SCREEN WIRELESS WEATHER STATION WITH OUTDOOR TEMPERATURE ALERTS We thank you for your purchase of Baldr Touch Screen Wireless Weather Station with Outdoor Temperature Alerts. It has been designed and constructed using innovative components and tech- niques to enable the perfect display. Please read the instructions carefully to become familiar with the properties and functions before you use the unit.
-
Page 2: Main Unit
PRODUCT OVERVIEW MAIN UNIT ALERT 1413... - Page 3 1. Weather forecast Weather forecast for next 12-24 hours 2. Top backlight button 3. Current time 12/24 hour format selectable 4. RCC indicator 5. Calendar display 6. Window indicator 7. Comfort level indicator 8. Max/min records of temperature and humidity 9.
-
Page 4: Outdoor Sensor
OUTDOOR SENSOR 1. Signal light 2. Hanging hole 3. Battery compartment 4. Channel 1-2-3 switch FEATURES ● MSF radio controlled time Up to 3 RF channels for outdoor sensors (only one sensor included) ● Calendar, alarm and snooze function ● ●... -
Page 5: Package Content
1 x Weather Station Main Unit 1 x Remote Sensor 1 x User Manual GETTING START BALDR recommends high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended. MAIN UNIT INSTALLATION 1. -
Page 6: Main Unit Setup
Note: Main unit will auto receive outdoor signal after power on, the receiving status will last for max 3 minutes. The receiving anten- na signal will flash. If no signal received in 3 minutes, it will stop receiving outdoor signal. If the main unit is out of 3 minutes’... - Page 7 * RCC symbol display: a. When receiving signal , RCC symbol “ ” will be flashing by “1HZ”. b. When signal successfully received, LCD will display complete RCC symbol “ ” and exit RCC receiving. c. If no signal is received, the RCC symbol will disappear. Manual Settings After signal received, if there is no need for other settings, you can just finish reading here.
- Page 8 Press “ RCC/SET ” to confirm and exit. During setting, touch top button to save and exit setting. During setting, if no operation for 20 seconds, it will automatical- ly save and exit setting. OUTDOOR TEMPERATURE ALERT SET OUTDOOR TEMPERATURE ALERT Press and hold “ALERT”...
- Page 9 FROST-POINT ALERT When outdoor temperature reading is between 0℃~2.9℃,the icon will be flashing to indicate the frosting point. When outdoor temperature reading is lower than 0℃, the icon will always display. WINDOW OPEN/CLOSE INDICATION Humidity comfort Ambient change Open window Close window level More dry,more...
- Page 10 The checking order is : Max Record→Min Record→Exit. The value will display for 3 seconds. Press and hold the “ MEM/▼” button to clear the max and min record. Normally, the Max and Min record will update every 24 hours at 0:00.
-
Page 11: Weather Forecast
Accuracy: when the humidity is between 30-80%,the accuracy is ± 5%,if out of this range the accuracy will be ±7%. Arrow indication for humidity changes: will display when the reading increase by 3% RH within one hour or compared with last reading. will display when the reading decrease by 3% RH within one hour or compared with last reading. -
Page 12: Troubleshooting
TROUBLE SHOOTING Problem Possible Solution Flashing of the outdoor reading is generally an indication of wireless interference. Bring the sensor and main unit indoors, side by side and remove batteries from each. Outdoor reading is Make sure the CH 1-2-3 switch on both flashing or showing units match. - Page 13 “LL.L” will display on screen for indication. If your BALDR product does not operate properly after trying the troubleshooting steps, please contact the seller on your order page or shoot an email to: service@baldr.com.
- Page 14 Important Placement Guidelines ● The distance between main unit and transmitter should be at least 1.5~2 meters (5~6.5 feet) away from any interfering sources such as computer monitors or TV sets. ● To maximize wireless range, place units away from large metallic items, thick walls, metal surfaces, or other objects that may limit wireless communication.
-
Page 15: Warranty
WARRANTY BALDR provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. Warranty service can only be performed by our authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to us, or our authorized service center.
