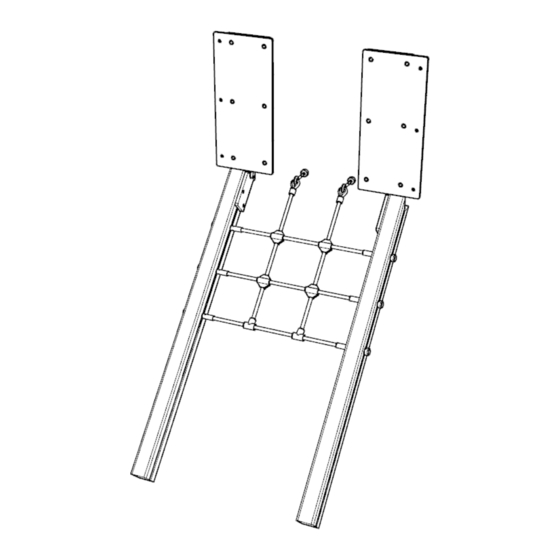

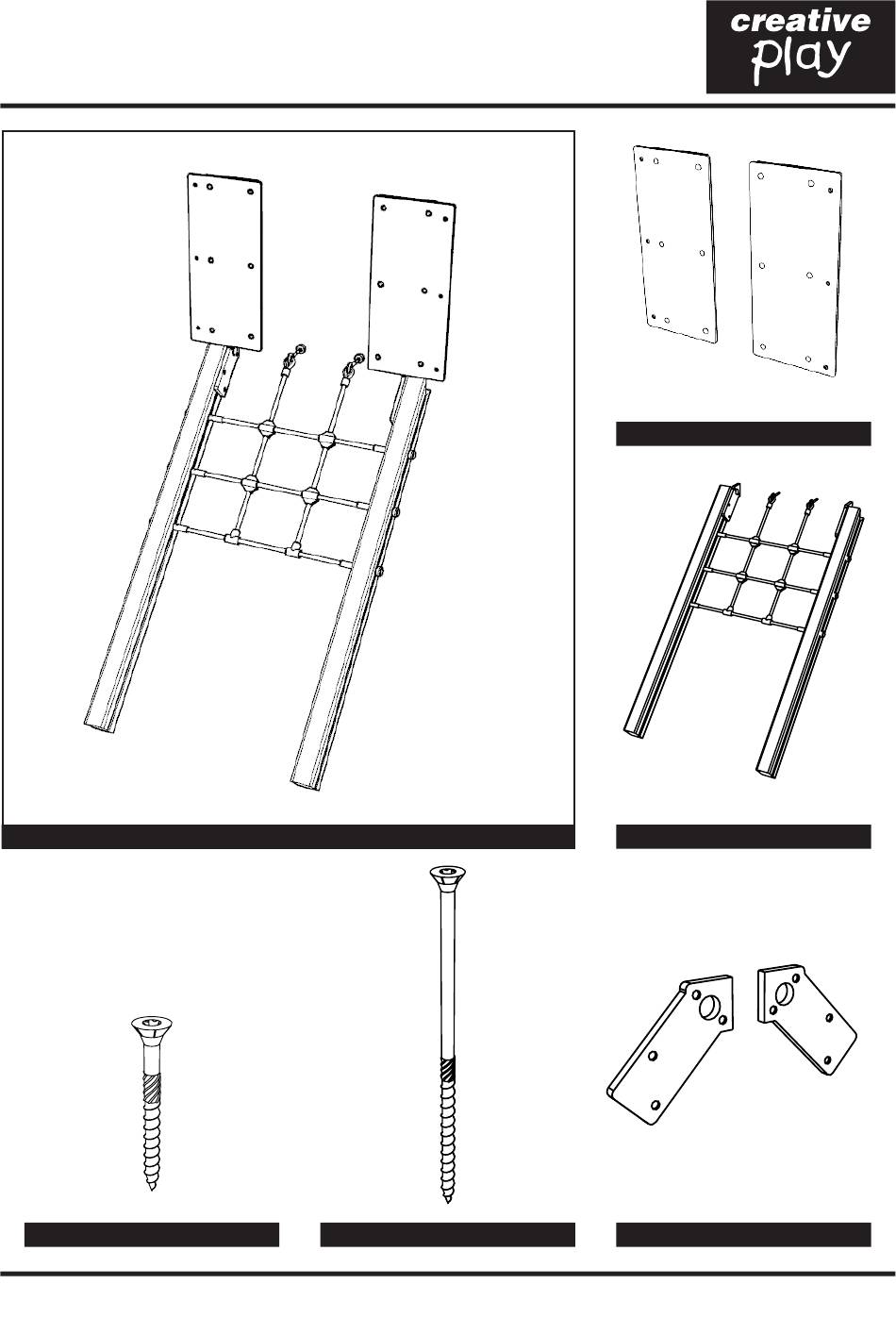

- Page 1 JIG914 - NET CLIMBER - 0.9M Installation Instructions x1 (SET) SB - BARRIER (PAIR) JIG914 - NET CLIMBER JIG914 - ASSEMBLY (1x LEFT / 1X RIGHT) 97.M8X80CSK 97.M8X180CSK HEXA GRIP BRACKETS REF: JIG914 pg 1 of 5 REVISION: 2 - 01.10.19...
-
Page 2: Additional Parts
ADDITIONAL PARTS 656.M10 102003-01 REF: JIG914 pg 2 of 5 REVISION: 2 - 01.10.19... - Page 3 FOUNDATIONS 1110 PLATFORM (1020) SOIL POST CONCRETE REF: JIG914 pg 3 of 5 REVISION: 2 - 01.10.19...
- Page 4 MARK / DRILL / ATTACH USING - 656.M10 / 102003-01 NOTES: 12MM DIA HOLE REQUIRED FOR EYEBOLTS FURTHER ATTACH USING HEXA GRIP BRACKETS USING - 97.M8X80CSK X 4 / 97.M8X180CSK 97.M8X180CSK 97.M8X80CSK REF: JIG914 pg 4 of 5 REVISION: 2 - 01.10.19...
- Page 5 BARRIERS MUST BE POSITIONED FLUSH WITH BOTTOM OF 18MM HEXAGRIP PLATFORM - SEE BELOW. REINFORCEMENT ‘SECTION’ (ON REVERSE) SHOULD BUTT UP T0 UPRIGHT TIMBER AND SIT ON TOP OF HEXAGRIP PLATFORM. KEY: = HEXAGRIP PLATFORM REF: JIG914 pg 5 of 5 REVISION: 2 - 01.10.19...
- Page 6 JIG101 - GUARD RAIL - TIMBER Installation Instructions GUARD RAIL ASSEMBLY JIG101 - GUARD RAIL TIMBER 97.M8X80FH REF: JIG101 pg 1 of 2 10.05.15 - PDS...
- Page 7 INSTALLATION INSTRUCTIONS ATTACH GUARD RAIL TO THE PLATFORM UPRIGHT TIMBERS USING - 97.M8X80FH - QUANTITY X 8 97.M8X80FH PLEASE NOTE POSITION THE GUARD RAIL / PANEL AS SHOWN BELOW NOTES: LOWER SUPPORT IS POSITIONED FLUSH WITH THE FLOOR SUPPORT FRAME - CIRCLED ABOVE ENSURE THE GUARD RAIL IS POSITIONED 10MM IN FROM THE EDGE OF THE UPRIGHT TIMBER REF: JIG101 pg 2 of 2...
- Page 8 JIG103 - ROOF - TIMBER Installation Instructions FOR USE WITH PLATFORM ‘FOR ROOF’ - ONLY JIG103 - ROOF ASSEMBLY JIG103 - ROOF - TIMBER JIGSAW - ROOF BRACKET 656.M12 274.M12X200 97.M8X80CSK 102003-01 REF: JIG103 pg 1 of 2 17.05.15 - PDS...
- Page 9 INSTALLATION INSTRUCTIONS ATTACH ROOF ASSEMBLIES USING ROOF BRACKETS USING - 97.M8X80CSK - QUANTITY X 8 (4 EACH BRACKET) 97.M8X80CSK ATTACH ASSEMBLED ROOF TO PLATFORM UPRIGHTS USING - 274.M12X200 / 102003-01 / 656.M12 - X 4 REF: JIG103 pg 2 of 2 17.05.15 - PDS...
- Page 10 JIG911 - SLIDE - 0.9M PLATFORM Installation Instructions FOR USE WITH PLATFORM 0.9M - ONLY JIG911 - SLIDE ASSEMBLY *inc fittings JIG911 - SLIDE - 0.9M PLATFORM CP - SLIDE SUPPORT (1 x left / 1 x right) 97.M8X80CSK SLIDE PANEL TORKTAINER (SET) 3B/N1 REF: JIG911 pg 1 of 4...
- Page 11 FOUNDATIONS SUPPORT CONCRETE REF: JIG911 pg 2 of 4 16.06.16- PDS...
- Page 12 INSTALLATION INSTRUCTIONS UNFOLD THE THE SLIDE ASSEMBLY AND SECURE USING - TORKTAINERS 3B / N1 3B / N1 ATTACH THE SLIDE SUPPORT USING PRE-ATTACHED FITTINGS NOTES: SLIDE SUPPORT MAY BE ‘LOOSE FITTED’ AS PART OF THE SLIDE ASSEMBLY REF: JIG911 pg 3 of 4 16.06.16- PDS...
- Page 13 INSTALLATION INSTRUCTIONS POSITION THE SLIDE ONTO THE 600MM PLATFORM & ATTACH USING - M8X80CSK M8X80CSK ATTACH THE SLIDE PANELS TO THE PLATFORM UPRIGHTS USING - M8X80CSK ENSURE: PANELS ARE FITTED AS SHOWN - THERE SHOULD BE NO EXCESS MOVEMENT PRESENT REF: JIG911 pg 4 of 4 16.06.16- PDS...
- Page 14 JIG912 - STAIRS - 0.9M Installation Instructions FOR USE WITH PLATFORM 0.9M - ONLY JIG912 - STAIRS ASSEMBLY JIG912 - STAIRS - 0.9M PLATFORM HAND RAIL TIMBER 97.M8X80FH 97.M8X120CSK JIG912-A REF: JIG912 pg 1 of 4 REVISION: 1 - 01.10.19...
- Page 15 FOUNDATIONS PLATFORM (1020) 1110 SOIL POST CONCRETE REF: JIG912 pg 2 of 4 REVISION: 1 - 01.10.19...
- Page 16 INSTALLATION INSTRUCTIONS POSITION THE JIG912-A (UPRIGHT TIMBERS) FOLLOWING THE FOUNDATION PLAN ATTACH THE STAIRS ASSEMBLY TO THE PLATFORM & JIG912-A TIMBERS USING 97.M8X80FH SCREWS 97.M8X80FH REF: JIG912 pg 3 of 4 REVISION: 1 - 01.10.19...
- Page 17 INSTALLATION INSTRUCTIONS REMOVE END CAP ON PLATFORM IF REQUIRED NOTES: STAIRS SUPPORT TIMBER IS NOTCHED OUT TO FIT OVER THE NYLOC ONLY REMOVE COVERED END IF ATTACHED TO UPRIGHT (AS SHOWN RIGHT) ATTACH HAND RAIL TIMBERS USING - 97.M8X120CSK, ENSURE TOP GUARD RAIL IS POSITIONED 600MM FROM BOTTOM STEP ENSURE: DISTANCES SHOWN BETWEEN PLATFORM UPRIGHT TIMBER AND STAIRS UPRIGHTS...
