TITAN INDUSTRIES
735 INDUSTRIAL LOOP ROAD
NEW LONDON WI 54961
920-982-6600
800-558-3616 Toll Free
920-982-7750 FAX
E-MAIL: sales@titanconveyors.com
Website: www.titanconveyors.com

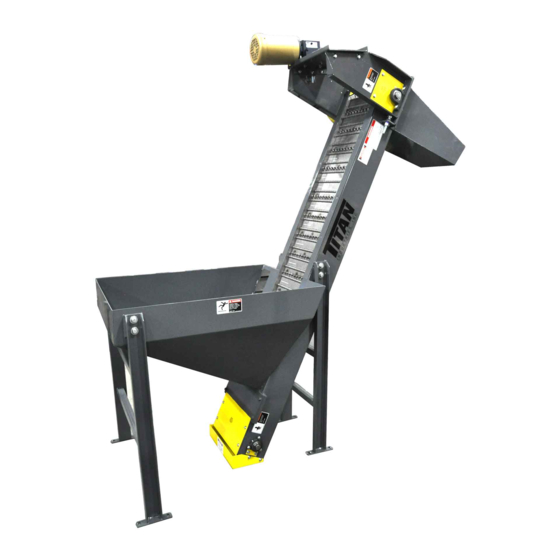

MODEL 350
PRO-FEED Conveyor
INSTALLATION, MAINTENANCE AND
PARTS MANUAL
For additional copies of this manual,
please visit our website at
www.titanconveyors.com.
Go to Replacement Parts/Accessories
and select Maintenance Manuals. You can then
select the manual for your model conveyor.
SERIAL NO.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Titan PRO-FEED 350
Summary of Contents for Titan PRO-FEED 350
- Page 1 TITAN INDUSTRIES 735 INDUSTRIAL LOOP ROAD NEW LONDON WI 54961 920-982-6600 800-558-3616 Toll Free 920-982-7750 FAX E-MAIL: sales@titanconveyors.com Website: www.titanconveyors.com MODEL 350 PRO-FEED Conveyor INSTALLATION, MAINTENANCE AND PARTS MANUAL For additional copies of this manual, please visit our website at www.titanconveyors.com.
- Page 2 (A) Seller warrants that the material in and the workmanship on the equipment manufactured by TITAN will be free from defects at time of shipment. If during the first year from the date of shipment, the Buyer establishes to the seller’s satisfaction that any part or parts manufactured by TITAN were defective at the time of shipment, TITAN will, at its own expense, repair or replace (but not install) replacement parts.
-
Page 3: Table Of Contents
This will require you to call a Titan salesperson prior to your sending back the item to get a RGA number and receive instructions on how to return the item. Other information needed at this time would be your original purchase order number, Titan serial number, job number or invoice number. - Page 4 Safety The Safety alert symbol is used with the signal words DANGER, WARNING and CAUTION to alert you to safety messages. They are used in safety decals on the unit and with proper operation and procedures in this manual. They alert you to the existence and relative degree of hazards. Understand the safety message.
- Page 5 Titan at 920-982-6600. I. RECEIVING Upon delivery of your Titan conveyor, check the packing slip or bill of lading accompanying the unit. If any components are missing, contact Titan IMMEDIATELY with a description of the missing components along with the conveyor serial number(s).
-
Page 6: Support Assembly
FIGURE 1 SUPPORT ASSEMbLY Standard heavy duty supports are always shipped assembled. See FIGURE 2 for component breakdown. IT IS THE CUSTOMERS RESPONSIBILITY TO LAG ThE SUPPORTS TO WARNING ThE FLOOR AFTER ThE FOLLOWING INSTALLATION PROCEDURES hAVE bEEN MET. 1. If supports have been provided bolt them to the frame. Generally there are tapped pads welded to frame sections for the supports to bolt up to. -
Page 7: Belt Checklist
bELT ChECKLIST - READ bEFORE INSTALLING bELT SPROCKETS Make sure that the belt drive sprockets are securely fastened to the drive shaft. Also make sure that the sprockets are the correct distance apart for proper engagement with the belt rollers. Check that the sprockets are in axial alignment so that the sprocket teeth engage the rollers on either side of the belt at the same time. -
Page 8: Component Checklist
5. For final connection thread an axle thru the hole provided in the head plate to join the interlocking belt ends. See FIGURE 4 6. By using the take-up provided remove excess slack in the belt. Take up each side equally so the belt tracks properly. -
Page 9: Start Up
START UP 1. With no load on the belt, jog the belt until it makes a complete revolution. This will ensure that there are no obstructions. 2. Run the belt for several hours before placing the conveyor into production. During this time watch how the belt is tracking. -
Page 10: Motors
MOTORS 1. CLEANING - All motors should be kept free of dirt and grease accumulations. Open motors should be periodically vacuumed to remove dust and dirt from the windings. 2. VENTILATION - For best results motors should be operated in an area where adequate ventilation is available. - Page 11 2. VENTILATION - During normal operation gear reducers build up heat and pressure that MUST be vented to protect the seals and gears. If not installed at Titan, a brass vent plug contained in a small plastic bag, will be put in a box or larger bag along with fasteners sent loose for use during field installation. Remove the top most drain plug (refer to FIGURE 6) for the position of your reducer) and install the vent plug securely in place.
-
Page 12: Bearings
FIGURE 6 bEARINGS 1. LUbRICATION - Bearings used on Titan Conveyors are normally pre-lubed for life. If customer requested, re-lube bearings are provided, the use of a #2 consistency lithium based grease is advised. Greasing Frequency should be as many times as necessary to maintain a small film of grease leaking at the seals. -
Page 13: V-Belt & Sheaves
REPLACEMENT - If replacement of bearings become necessary remember to clean off the shaft, file smooth grooves or set screw marks, and oil the shaft before slipping on the new bearing. IF bEARING DOES NOT SLIDE ON EASILY, USE A SOFT CAUTION METAL bAR TO TAP AGAINST ThE INNER RACE TO ASSEMbLE. - Page 14 SAE 40 120 degrees - 140 degrees F SAE 50 REMEMbER - ALL GUARDS AND bOTTOM PANS, IF PROVIDED, MUST bE REPLACED bEFORE RUNNING CONVEYOR. TITAN INDUSTRIES IS NOT DANGER RESPONSIbLE FOR INJURIES CAUSED bY NOT COMPLYING WITh SAFETY INSTRUCTIONS.
- Page 15 MODEL 350 PRO FEED CONVEYOR 34 32 DISChARGE ChUTE 14. DRIVE PLATE L/h 27. INFEED ShAFT DISChARGE ChUTE WEAR STRIP 15. bELT SPROCKET 28. bUShED INFEED SPROCKET DISChARGE ChUTE COVER 16. DRIVE ShAFT 29. hEAVY DUTY SUPPORT MOTORbASE 17. DRIVE PLATE R/h 30.
- Page 16 NEW LONDON WI 54961 920-982-6600 800-558-3616 Toll Free 920-982-7750 FAX E-MAIL: sales@titanconveyors.com Website: www.titanconveyors.com Contact Your Distributor or Titan Directly for Further Information on Other Titan Conveyor Products Slider Bed Conveyors Floor to Floor Belt Conveyors Parts Conveyors ...
