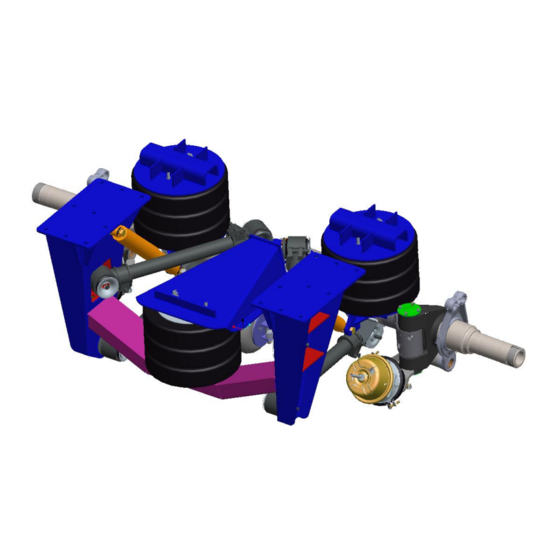

- Page 1 Owner's Manual Titan ParaMax Suspension, Self Steering, High Lift Suspension System 1129 Highway #3 Delhi, Ontario, Canada, N4B 2W6 Phone: 519-688-4826 Fax: 519-688-6453 www.titantrailers.com...
-
Page 2: Table Of Contents
Parts List & Illustrations........................9 Warranty.............................10 General Information Suspension Identification: The Titan ParaMax Suspension can be identified by a metal tag attached on the left-hand hanger that indicates the serial number, model number and suspension load capacity. Parts: For best performance and reliability order only Titan replacement parts. Replacement parts and instructions are shown on page 8 and 9 of this manual. -
Page 3: Introduction
Suspension Operation The controls of the Titan ParaMax Suspension are in the stainless steel box on the driver's side. There is a push/pull knob or switch to raise or lower the suspension depending on the vehicles load requirements which can manually raise and lower the suspension from ride height to the lifted position. - Page 4 Titan ParaMax Suspension - TP-01-1750 Titan ParaMax Suspension - TP-01-1775 Pressure Load on Ground @ 17.50" RH Pressure Load on Ground @17.75" RH psig psig 5550 2517 5550 2517 7350 3334 7350 3334 9450 4286 9450 4286 11650 5284 11650...
- Page 5 Titan ParaMax Suspension - TP-01-1900 Titan ParaMax Suspension - TP-01-1925 Pressure Load on Ground @ 19" RH Pressure Load on Ground @ 19.25" RH psig psig 5250 2381 5250 2381 6950 3152 6950 3152 8750 3969 8750 3969 10550 4785...
- Page 6 All axles must equalize to within 500kg. See SPIF Vehicle and Weight Limits manual for more information. Below in Table 2 the ParaMax suspension parameters for each ride height is shown. These numbers can be used to verify that the suspension components are operating within their allowable ranges.
-
Page 7: Suspension Alignment
Below in Table 3, we recommend the following maintenance schedule to keep your Titan ParaMax suspension in optimum working condition. It should also be noted that the lift bag not exceed 60 psi. It is preset at the factory at this pressure. -
Page 8: Parts List & Illustrations
Parts List & Illustrations Below in Figure 2 shows an exploded view of the Suspension and on the next page a Table ParaMax 5 shows a list of the components with part numbers and descriptions. Figure 2... - Page 9 Table 5 Item Description Part Number 86" TRACK AXLE ASSEMBLY 04SWF_000065_01 HANGER ASSEMBLY, RIGHT 04SWF_000078 HANGER ASSEMBLY, LEFT 04SWF_000080 UPPER BAG PLATE ASSEMBLY 04SWF_000084_06 PLATE, ANTI-CORROSION 04SWF_000089 LIFT MOUNT ASSEMBLY 04SWF_000095_01 UPPER SHOCK SPACER 04SWF_000103 FIRESTONE TRIPLE CONVULTED AIRBAG W01-358-7850 BRAKE CHAMBER, GOLD SEAL 3030, 2.5"...
-
Page 10: Warranty
Subject to all the above conditions, if repair or replacement of any defective part is made by Titan Trailers, Titan Trailers will return the repaired or replaced parts to the original purchaser with transportation charges prepaid.
