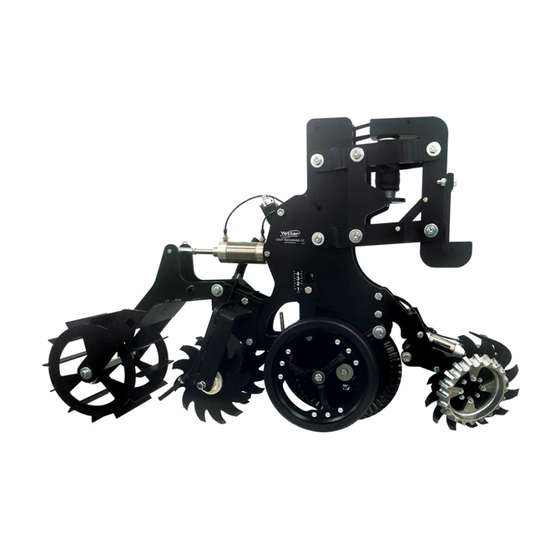

Strip Freshener CC Quick Start Guide
Toolbar Start-up Sequence of Adjustments
Adjust row unit depth
Engage pneumatic system
Properly set toolbar height and levelness
Adjust row unit downforce
Adjust toolbar wing downforce
Adjust residue manager performance
Adjust rolling basket performance
INITIAL SETTINGS
Row Unit DF: 30 psi
Row Cleaners: 0 psi
Rolling Basket: 50psi UP
TYPICAL OPERATING SETTINGS
REFRESHING
STRIPS
Row Unit DF: 20-35psi
Row Cleaners: 0-40psi UP
Rolling Basket: 30-40psi DN
NOTE: Adjustments outside these ranges may be
necessary for optimal performance for your conditions
NEW
STRIPS
30-60psi
0-25psi DN
30-40psi DN
YETTER MANUFACTURING CO.
Toll free: 800/447-5777
Website:
www.yetterco.com
E-mail:
serviceteam@yetterco.com
Advertisement
Related Manuals for Yetter Strip Freshener CC
Summary of Contents for Yetter Strip Freshener CC
- Page 1 Strip Freshener CC Quick Start Guide Toolbar Start-up Sequence of Adjustments Adjust row unit depth Engage pneumatic system Properly set toolbar height and levelness Adjust row unit downforce Adjust toolbar wing downforce Adjust residue manager performance Adjust rolling basket performance...
- Page 2 MACHINE OPERATION Step 1. Adjust Row Unit Depth: Set depth (approximate) on each row unit. Adjust screw adjust knob (15/16 wrench) to achieve your preferred depth. Adjustments can be made in ¼” increments. Rotating the screw adjust knob clockwise will raise the gauge wheels making the units go deeper.
- Page 3 CAB CONTROL BOX OPERATION ROW CLEANER UP ROW CLEANER DOWN PRESSURE CONTROL PRESSURE CONTROL PULL KNOB TO UNLOCK PULL KNOB TO UNLOCK ROW CLEANER PRESSURE GAUGE TURN CLOCKWISE TO INCREASE AIR TURN CLOCKWISE TO INCREASE AIR ROW CLEANER TURN COUNTERCLOCKWISE TO TURN COUNTERCLOCKWISE TO SELECTOR VALVE DECREASE AIR...
