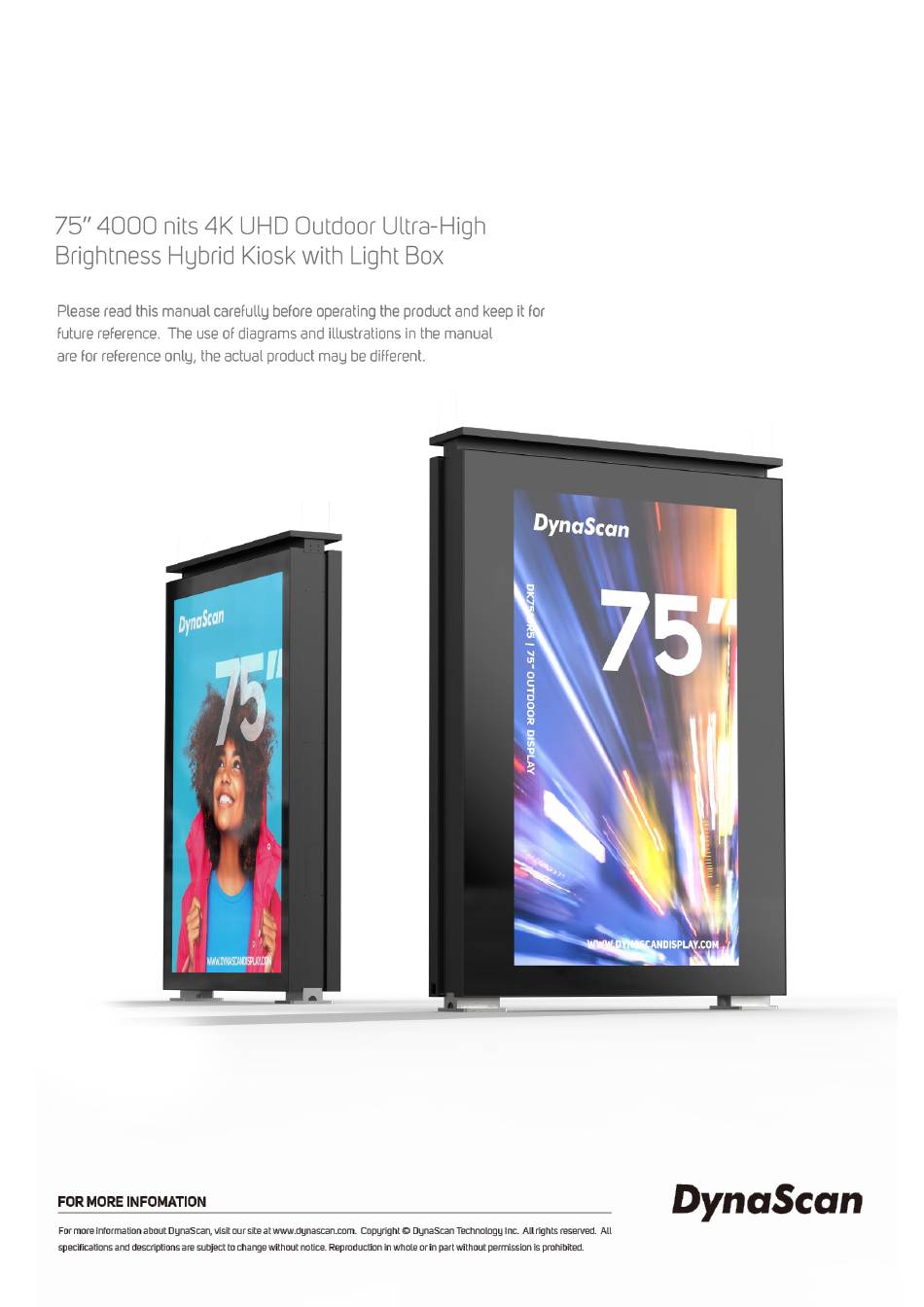

- Page 1 DK751DH5 USER MANUAL 65210 | V2.00...
-
Page 2: Table Of Contents
Contents Material Contents Declaration ........................ 1 Recycling and Energy Information ......................1 Declaration of Conformity ........................2 Safety Precautions ..........................3 Important Safety Information ........................4 Getting Started ............................5 Contents ............................. 5 Installing and Replacing Remote Control Batteries ................5 Installation............................... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2011/65/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Manufacturer Name DynaScan Technology Corp. Manufacturer Address 6F, No. 88 Wenmao Rd., Guishan Dist, Taoyuan City 333001,Taiwan This device complies with Directive 2014/53/EU issued by the Commission of the European Community. -
Page 5: Safety Precautions
Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. Power cord shall be connected to a socket-outlet with earthing connection. DK751DH5 User Manual 3... -
Page 6: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ... -
Page 7: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. DK751DH5 Professional LCD. Quick Start Guide x1 pc. ... -
Page 8: Installation
Installation Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. DK751DH5 DK751DH5 User Manual 6... - Page 9 HANGING Hang on the hook of crane 1. Install two M12 eye-blots on the top of DK751DH5 with socket wrench as Pic.1. 2. Let two slings separately pass through eye-bolt and hang on the hook of the crane as Pic.2.
-
Page 10: Connecting To A Power Source
Connect the power cable to a 200-240 volt, 50 / 60Hz 15A AC power outlet. Insert the plug completely into the socket. A loose power connection may cause damage to the display and/or lead to a fire hazard. DK751DH5 User Manual 8... -
Page 11: Connecting An External Video Source
(or HDMI cable), insert one end into the DP-IN (or HDMI 1-IN, HDMI 2-IN) which shown in the diagram below. Connect the other end of the DP cable (HDMI cable) to the DP output (or HDMI output) of the video source. Refer to your video device’s manual for additional information. DK751DH5 User Manual 9... -
Page 12: Input / Output Terminals
RJ-45 3 (IN): RJ45 network input connection. *USB 3.0 port: A standardized port to connect a variety of devices like mouse, keyboard, and flash drive. Support USB storage devices formatted with NTFS, FAT32 (32G) file system. DK751DH5 User Manual 10... -
Page 13: Operating Instructions
Powering On/Off the Display To turn on/off the display, press the power switch on the side of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DK751DH5 User Manual 11... -
Page 14: Using The Remote Control
When using the remote control, aim the remote at the IR receiver on the display. The IR receiver on the DK751DH5 model is at the front of the display with a receiving angle of 100 degrees. The IR receiver configurations of the model are shown in the figure below. - Page 15 Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DK751DH5 User Manual 13...
-
Page 16: Navigating The On Screen Display (Osd) Menu
DSM 365 Set the Failover 4 input to display. Only effective in Main input source. If the display didn’t get both commend and Command Detection the input signal, it will trigger the Failover1 function. 2. Picture DK751DH5 User Manual 14... - Page 17 High Level brightness value set; when ambient light is dark, the screen will adjust to the Low Level brightness value set. C. When the Timer (“High Level Time” & “Low Level Time”) mode is set, the DK751DH5 User Manual 15...
- Page 18 Set the day of week. (Monday to Sunday) Time Time Zone Set the Time Zone. Power Control Automatic power on / off schedule function. Timer On Time 08:00 Set turn-on time. Off Time 18:00 Set turn-off time. DK751DH5 User Manual 16...
- Page 19 Digital Side Door Status Close Open/Close Door Lock/Unlock Light Box Side Lock Status Lock Unlock After 3sec > 23 sec count down, after count down switch to lock Light Box Side Door Status Close Open/Close DK751DH5 User Manual 17...
- Page 20 Note: When disabled, the remote control function IR Control can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. Choose to use the AC back status function. Power On: Display booting up when the power back after an outage.
- Page 21 MCB Version The MCB version. FW Version The Firmware version. System Info. OS Version The OS version. Input Power Input Power (W avg.) Input Voltage Input Voltage Input Current Input Current Ambient Temp. Ambient Temp. 9. Status DK751DH5 User Manual 19...
- Page 22 PSU Status If the voltage of PSU is abnormal, it will 1/2/3/4 show NG. PSU Status If the voltage of PSU is abnormal, it will 5/6/7/8 show NG. Some functions may not be available for all models. DK751DH5 User Manual 20...
-
Page 23: Specifications
Specifications MODEL DK751DH5 LCD Panel Size 74.52 inches Native Resolution 3840 x 2160 Brightness 4000 cd/m² (Typ.) Contrast Ratio 3,000:1 (Static) PANEL Response Time 8 ms (Typ.) Viewing Angle 178°/ 178° Life Time 100,000 hrs (Typ.) Panel Surface AG Haze 3%, 2H... -
Page 24: Input Mode
60 Hz 1440 60 Hz 1600 1200 60 Hz 1680 1050 60 Hz 1920 60 Hz 1920 1080 60 Hz 1920 1200 60 Hz 1920 1440 60 Hz 2560 1440 60 Hz 3840 2160 60 Hz DK751DH5 User Manual 22... -
Page 25: Pin Assignments
Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DK751DH5 User Manual 23... -
Page 26: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DK751DH5 User Manual 24... -
Page 27: About Dsm365
Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. DK751DH5 User Manual 25... - Page 28 Copyright © DynaScan Technology, Inc. All Rights Reserved. DK751DH5 User Manual 26...
