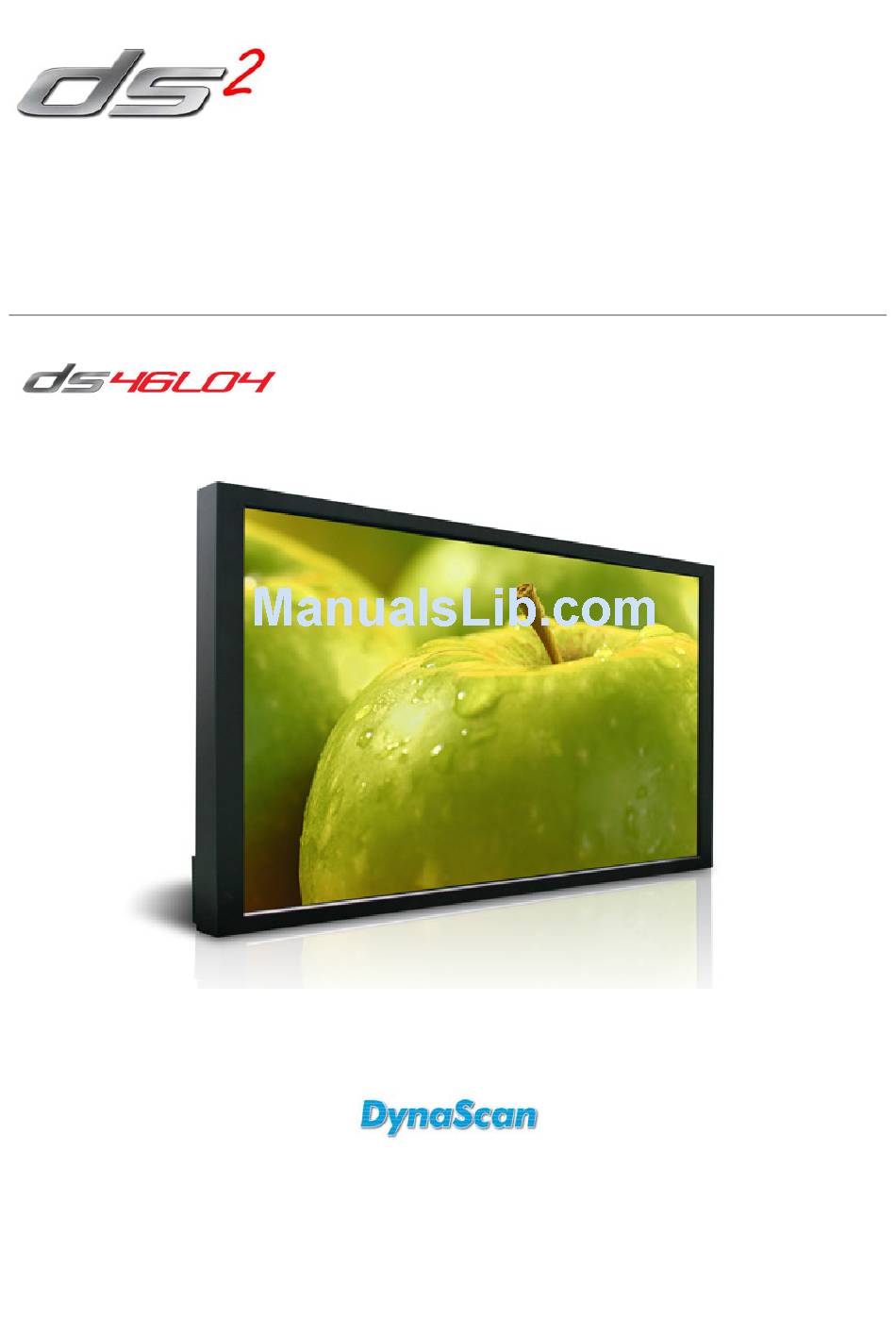

Page 1: User Manual
Professional LCDs User Manual Version 1.01 The use of diagrams and illustrations in the manual for reference only, actual product may be different. Product design and specifications are subject to change without notice... -
Page 2: Table Of Contents
Using the Remote Control ............................14 Using the Rear Panel Controls ..........................16 Navigating the On Screen Display (OSD) Menu ......................17 Specifications................................19 Pin Assignments .................................20 Digital RGB Output (DVI-D): DVI ..........................20 Digital RGB Input (DVI-D): DVI..........................20 RS-232 Output ................................21 RS-232 Input................................21 DS46LO4 User Manual... -
Page 3: Ds46Lo4 User Manual
Troubleshooting ................................22 Recycling and Energy Information..........................23 Material Contents Declaration ............................24 Limited Warranty.................................25 DS46LO4 User Manual... -
Page 4: Safety Precautions
This phenomenon is known as image burn-in and is not covered by the manufacturer's warranty. In order to avoid burn in, avoid prolonged display of static or fixed images on the screen. DS46LO4 User Manual... -
Page 5: Important Safety Information
Handle the LCD with care. Save the packaging materials for the next transport. Please clean the backside of the LCD at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: Damaged power cord or power plug. - Page 6 Do not use any of the following solutions to clean the casing as they may damage the paint and cause it to crack or peel: benzene solution, alkaline solution, alcohol-based cleaning solution, glass cleaner, wax, polisher, or detergent. DS46LO4 User Manual...
-
Page 7: Declaration Of Conformity
Declaration of the Manufacturer We hereby certify that the Professional LCD DS46LO4 is in compliance with Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004 /108 /EC... -
Page 8: Getting Started
Confirm the accessories below are included with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary by product. • DS46LO4 Professional LCD • Power cable x1 pcs • Remote Control x1 pcs •... -
Page 9: Installing And Replacing Remote Control Batteries
• Do not touch the leaked substance from the batteries in case of a battery leak. Doing so may damage human skin. Note: if you plan on not using the remote control for a long period of time, we recommend removing the batteries from the remote control. DS46LO4 User Manual... -
Page 10: Installation
Installation The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover damages caused by improper installation and DynaScan shall not be held responsible in such incident. - Page 11 Orientation When used in the portrait orientation, the LCD should be rotated clockwise such that the left edge becomes the top edge. DS46LO4 User Manual...
- Page 12 Inspect the fasteners regularly for signs of loosening or deformation. Please perform appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation. Increase the inspection frequency on areas where previous maintenance had occurred to ensure the problems do not occur again. DS46LO4 User Manual...
-
Page 13: Connecting To A Power Source
DVI-IN on the back of the display shown the in the diagram below. Connect the other end of the DVI cable to the DVI output of the video source. Refer to your video device’s product manual for additional information DVI (IN) DVI Cable DVI (OUT) DS46LO4 User Manual... -
Page 14: Connecting Multiple Displays For Video Wall Applications
Use the OSD Menu to configure the size of the video wall and the position of each display. Note: The maximum number of DS46L04s in a Video Wall is 36 (6 × 6). Note: The DynaScan “Video Wall” application is required to be installed on the PC in order to use the External Control feature. -
Page 15: Operating Instructions
The sensitive range is 160 degree as shown in the figure right. The operating range of the remote control is 2.5 meters (8 feet). Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DS46LO4 User Manual... - Page 16 OSD On / Off Move the cursor up or change the setting of the selected item LEFT Exit the current selection RIGHT Select the highlighted item DOWN Move the cursor down or change the setting of the selected item DS46LO4 User Manual...
-
Page 17: Using The Rear Panel Controls
OSD On / Off Move the cursor up or change the setting of the selected item LEFT Exit the current selection RIGHT Select the highlighted item DOWN Move the cursor down or change the setting of the selected item DS46LO4 User Manual... -
Page 18: Navigating The On Screen Display (Osd) Menu
NUMBER OF ROWS Note: The maximum number of rows in a daisy chain is 6. Set number of columns in video wall. NUMBER OF COLUMNS Note: The maximum number of columns in a daisy chain is 6. DS46LO4 User Manual... - Page 19 Video Wall software. Restores all settings to default. RESET TO FACTORY DEFAULT Note: Does not modify CURRENT TIME, POWER ON TIME, POWER OFF TIME. SN: xxxxxxxxxxxxx The Signage’s serial number. Some functions may not be available for all models. DS46LO4 User Manual...
-
Page 20: Specifications
0°C ~ 40°C Operation Temperature ENVIRONMENT Storage Temperature -20°C ~ 60°C Humidity 10%~80% RH Non-Condensing DVI-D IN *1 / OUT *1 I/O Ports RS-232 IN *1 / OUT *1 Design and specifications are subject to change without notice. DS46LO4 User Manual... -
Page 21: Pin Assignments
PIN ASSIGNMENT OF DVI CONNECTOR RX2- RX1- RX0- RX2+ RX1+ RX0+ Shield (RX2 / RX4) Shield (RX1 / RX3) Shield (RX0 / RX5) DDC-Serial Clock +5V power Shield (RXC) DDC-Serial Data Ground RXC+ Hot plug detect RXC- DS46LO4 User Manual... -
Page 22: Rs-232 Output
PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 RS-232 Input PIN No. NAME connected to 7&8 connected to 6 connected to 4 connected to 1&8 connected to 1&7 DS46LO4 User Manual... -
Page 23: Troubleshooting
Cannot control the display • Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS46LO4 User Manual... -
Page 24: Recycling And Energy Information
Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. Energy usage... -
Page 25: Material Contents Declaration
“O” indicates that the level of the specified chemical substance is less than the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. “ ” indicates that the level of the specified chemical substance exceeds the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. DS46LO4 User Manual... -
Page 26: Limited Warranty
DynaScan and its Authorized Service Providers are not liable for any damage to or loss of data or other information stored on any media, or any non-DynaScan product or part not covered by this warranty. This warranty does not apply: (a) to damage caused by natural disasters, accident, abuse, misuse, misapplication, neglect;... - Page 27 PROGRAM OR DATA STORED IN OR USED WITH DYNASCAN PRODUCTS, AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. DYNASCAN SPECIFICALLY DOES NOT REPRESENT THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE A PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA.
- Page 28 Copyright © DynaScan Technology, Inc. All Rights Reserved.
