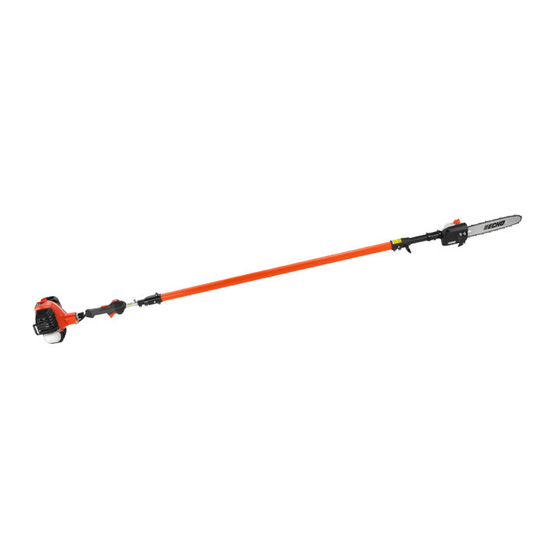

Echo Power Pruner PPT-2620/H Operator's Manual

Hide thumbs Also See for Power Pruner PPT-2620/H:
Table of Contents

Advertisement

Quick Links

Download this manual
PPT-2620/H
Power Pruner
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
X7502346700
© 11/23 ECHO Incorporated
Operator's
Manual
®

Advertisement

Table of Contents
loading

Related Manuals for Echo Power Pruner PPT-2620/H

Summary of Contents for Echo Power Pruner PPT-2620/H

  • Page 1 State of California to cause cancer, birth defects, or other reproductive harm. Read and understand all provided literature before use. Failure to do so could result in serious injury. Note: This product complies with CAN ICES-2/NMB-2. X7502346700 © 11/23 ECHO Incorporated...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction......................... 3 Servicing Information....................3 Parts and Serial Number..................3 Service ....................... 4 ECHO Consumer Product Support ..............4 Product Registration................... 4 Additional Literature ................... 4 Safety ......................... 5 Manual Safety Symbols and Important Information ........... 5 International Symbols..................

  • Page 3: Introduction

    SERVICING INFORMATION Parts and Serial Number Genuine ECHO parts and assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts, always have the model number and serial number of the unit with you. For future reference write them in the space provided below.

  • Page 4: Service

    Register your ECHO equipment online at www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your product confirms warranty coverage and provides a direct link to ECHO if we find it necessary to contact you.

  • Page 5: Safety

    Note: This enclosed message provides tips for use, care and maintenance of the unit. CIRCLE AND SLASH SYMBOL This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury. X7502346700 © 11/23 ECHO Incorporated...

  • Page 6: International Symbols

    Speed Mixture Safety/Alert Stop STOP Fuel and Oil Hot Surface Mixture Do not operate closer than 15 m Finger Severing (50 ft.) from electrical hazard. Plan retreat path Avoid all power from falling lines. objects. X7502346700 © 11/23 ECHO Incorporated...
  • Page 7 Near Fuel Choke Control Choke Control “COLD START” “RUN” Position Position (Choke (Choke Open) Closed) Wear Slip Resistant Footwear Chain Lubrication Do not cut branches overhead. Note: Not all symbols will appear on your unit. X7502346700 © 11/23 ECHO Incorporated...

  • Page 8: Personal Condition And Safety Equipment

    Eye protection that meets ANSI Z87.1 or CE requirements ◆ must be worn whenever you operate the unit. For additional safety, a full-face shield can be worn over ◆ safety glasses or goggles to provide protection from sharp branches or flying debris. X7502346700 © 11/23 ECHO Incorporated...
  • Page 9 Gloves also provide protection against cuts and scratches, cold environments, and reduce the transmission of machine vibration to your hands. Hearing and Ear Protection ECHO recommends wearing personal protective equipment whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit.
  • Page 10 To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine. In the absence of such information, ECHO does not recommend the use of this machine by anyone who has a pacemaker.
  • Page 11 Never touch wires directly or indirectly, otherwise serious injury or death can result. Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. X7502346700 © 11/23 ECHO Incorporated...
  • Page 12 • Turn the Power Pruner off when moving from tree to tree. • Avoid any contact with saw chain. Avoid Hot Surfaces • Keep exhaust area clear of flammable debris. Avoid contact during and immediately after operation. X7502346700 © 11/23 ECHO Incorporated...

  • Page 13: Kickback

    ECHO Incorporated will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual. X7502346700...
  • Page 14 • Check that the cutting attachment, guide bar, and saw chain is firmly attached and in safe operating condition. • Use only one ECHO extension on the pruner. • Do not hit rocks, stones, tree stumps, and other foreign objects with the saw chain.

  • Page 15: Emission Control (Exhaust & Evaporative)

    The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. X7502346700 © 11/23 ECHO Incorporated...

  • Page 16: Description

    Locate the safety decal(s) or etching(s) on your unit. Make sure they are legible, and that you understand and follow the instructions. If any cannot be read, replacements can be ordered from your ECHO dealer. Images shown below are for example only. Those on your unit might appear slightly different.
  • Page 17 15. Spark Arrester Muffler or Spark Arrester Muffler with Catalyst 16. Fuel Tank 17. Fuel Tank Cap 18. Purge Bulb 19. Air Cleaner Assembly 20. Choke 21. Spark Plug 22. Top Guard 23. Guide Bar Cover X7502346700 © 11/23 ECHO Incorporated...

  • Page 18: Contents

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. Power Head / Handle assembly Drive Shaft Assembly Cutting Attachment with Guide Bar &...

  • Page 19: Cutting Attachment To Drive Shaft Installation

    127-152 mm (5-6 in.), then slide (F) back into fiberglass lower tube exposing inner drive shaft (G). Align and join star shaped drive end of inner drive shaft with cutting attachment shaft. X7502346700 © 11/23 ECHO Incorporated...
  • Page 20 (I). Install and tighten locator screw (B). Tighten two (2) cutting attachment screws (A). Extend upper tube (F) to desired length. Tighten clamp knob (E) turning clockwise. X7502346700 © 11/23 ECHO Incorporated...

  • Page 21: Saw Chain Adjustment

    When chain is properly tensioned, tighten guide bar nuts securely. Tighten guide bar nuts to 8 - 9 N•m (71 - 80 lbf•in). DO NOT over- tighten nuts or damage may result. X7502346700 © 11/23 ECHO Incorporated...

  • Page 22: Operation

    Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause unconsciousness, serious injury, or death. Exhaust can cause serious burns. ALWAYS position unit so that exhaust is directed away from your face and body. X7502346700 © 11/23 ECHO Incorporated...

  • Page 23: Fuel

    NOT approved. Use of ECHO branded fuel is recommended to extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines. Two Stroke Oil - A two-stroke engine oil, such as ECHO branded 2-stroke oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must be used.
  • Page 24 AVOID inhaling oil mists or vapors. ◆ ECHO branded 2-stroke oils may be mixed at 50:1 ratio for application in all ECHO engines sold in the past regardless of ratio specified in those manuals. Handling Fuel Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury will result.
  • Page 25 Add remaining gasoline, close fuel container, and remix. Spilled fuel is a leading cause of hydrocarbon emissions. Some locations may require the use of automatic fuel shut-off containers to reduce fuel spillage. X7502346700 © 11/23 ECHO Incorporated...

  • Page 26: Lubricating The Guide Bar And Saw Chain

    To prevent plastic deterioration, do not use synthetic or silicone based oil. Wipe debris from around oil fill cap. Remove oil fill cap and fill reservoir with a quality, low viscosity guide bar and saw chain oil. X7502346700 © 11/23 ECHO Incorporated...

  • Page 27: Starting Cold Engine

    Stop Switch PPT-2620 Move stop switch button (A) forward, away from the STOP position. X7502346700 © 11/23 ECHO Incorporated...
  • Page 28 Pull starter handle/rope until engine starts and runs. Release throttle trigger and allow unit to warm up at idle for several minutes. X7502346700 © 11/23 ECHO Incorporated...

  • Page 29: Starting Warm Engine

    Note: If attachment moves, PPT-2620 readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. Stop Switch PPT-2620 H Move stop switch button (A) forward away from the STOP position. X7502346700 © 11/23 ECHO Incorporated...

  • Page 30: Stopping Engine

    (D) until engine fires. Note: If engine does not start after 5 pulls, use Cold Start Procedure. Stopping Engine Throttle Release throttle trigger and allow engine to return to idle before shutting off engine. Stop Switch PPT-2620 X7502346700 © 11/23 ECHO Incorporated...

  • Page 31: Pruning Techniques

    PPT-2620 H If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using unit again. Pruning Techniques Shoulder Harness (if...
  • Page 32 (4 in.) diameter or larger cut as follows: 1. Under cut 1/4 limb diameter near tree trunk. 2. Finish top cut slightly farther out on limb. 3. Flush cut stub at trunk. • DO NOT use for felling or bucking. X7502346700 © 11/23 ECHO Incorporated...

  • Page 33: Maintenance

    Level 1 = Easy to do. Common tools may be required. Level 2 = Moderate difficulty. Some specialized tools may be required. Level 3 = See your dealer. Click HERE or go to http://www.echo-usa.com/products/maintenance-kit HERE https://www.shindaiwa-usa.com/you-can.aspx X7502346700 © 11/23 ECHO Incorporated...

  • Page 34: Maintenance Intervals

    Fuel Cap Gasket Replace* IMPORTANT NOTE - Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. MAINTENANCE PROCEDURE NOTES: Apply lithium-based grease every 25 hours of use. X7502346700 © 11/23 ECHO Incorporated...

  • Page 35: Air Filter

    • Clean foam filter in water/ detergent solution and rinse with clean water. • Wrap the filter in a clean, dry cloth and squeeze (do not wring) dry. Allow to dry completely before reuse. Do not oil. X7502346700 © 11/23 ECHO Incorporated...

  • Page 36: Fuel Filter

    Do not damage fuel line while removing fuel filter from tank. Use a clean rag to remove loose dirt from around fuel cap and empty fuel tank. X7502346700 © 11/23 ECHO Incorporated...

  • Page 37: Spark Plug

    Clean the plug or replace with a new one. DO NOT sand blast to clean. Remaining sand will damage engine. 0.65 mm (0.026 in.) Adjust spark plug gap by bending outer electrode. Tighten spark plug to 102-153 kgf•cm (89-133 lbf•in). X7502346700 © 11/23 ECHO Incorporated...

  • Page 38: Cooling System

    “Normal Maintenance”. Any failure attributed to lack of maintenance is not covered by the warranty. Remove spark plug lead. Remove muffler cover (A). Remove engine cover (B). DO NOT use a metal scraper to remove dirt from the cylinder fins. X7502346700 © 11/23 ECHO Incorporated...

  • Page 39: Exhaust System

    Clean carbon deposits from muffler components. Note: When cleaning carbon deposit, be careful not to damage the catalytic element inside muffler. Replace screen if it is cracked, plugged, or has holes burned through. Assemble components in reverse order. X7502346700 © 11/23 ECHO Incorporated...
  • Page 40 Tighten muffler mounting bolts (or nuts) to 90-110 kgf•cm (80-95 lbf•in). Install muffler cover and attach spark plug lead. Start engine, and warm to operating temperature. Stop engine, and re-tighten mounting bolts (or nuts) to specifications. X7502346700 © 11/23 ECHO Incorporated...

  • Page 41: Carburetor Adjustment

    For units equipped with a clutch, be sure the cutting ◆ attachment stops moving when the engine idles. When the unit is turned off, make sure the cutting ◆ attachment has stopped before the unit is set down. X7502346700 © 11/23 ECHO Incorporated...

  • Page 42: Lubrication

    Leave 2–3 inches of flex shaft exposed. DO NOT get dirt on flex shaft. Align flexible drive shaft with drive shaft socket, and slide together until handle is fully seated into drive shaft coupling. Tighten clamping screws (A). X7502346700 © 11/23 ECHO Incorporated...

  • Page 43: Guide Bar And Saw Chain Replacement

    Turn tension adjustment screw (C) clockwise to take up slack in saw chain. Install guide bar cover (D), and tighten guide bar nuts finger tight and install guide bar cover screw (B). Adjust chain tension. X7502346700 © 11/23 ECHO Incorporated...

  • Page 44: Guide Bar Cover Cleaning

    Hold the bar nose up. Install guide bar cover (D). Install the guide bar nuts (A). Tighten the rear nut first, then tighten the front nut. Install and tighten the guide bar cover screw (B) X7502346700 © 11/23 ECHO Incorporated...

  • Page 45: Filing Standard Saw Chain

    Always wear gloves when filing saw chain, otherwise serious personal injury may result. Use a 4.5 mm round file for a 0.043 in. gauge saw chain. Use a 5/32 in. round file for 5/32 in. gauge saw chain. X7502346700 © 11/23 ECHO Incorporated...
  • Page 46 0.635 mm (0.025 in.) slot and end against front cutter raker. File cutter raker with flat file until flush with top of depth gauge. Finish cutter sharpening by rounding front raker edge with flat file. X7502346700 © 11/23 ECHO Incorporated...
  • Page 47 If saw chain is coated or clogged with resin, clean in kerosene, then soak in oil. Parallel Depth gauge 55° 30° Top plate filing angle Side plate angle X7502346700 © 11/23 ECHO Incorporated...

  • Page 48: Troubleshooting

    Clean or replace runs, but Fuel filter Contaminants Replace filter or dies Fuel filter dirty or residue in fuel replace fuel Engine Fuel vent Contaminated Fuel vent Clean or replace does not plugged fuel accelerate properly X7502346700 © 11/23 ECHO Incorporated...

  • Page 49: Storage

    Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage maintenance which includes the following: Store unit in a dry, dust free place, out of the reach of children. X7502346700 © 11/23 ECHO Incorporated...
  • Page 50 Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston reaches the top of its travel and leave it there. 10. Install the spark plug. Connect the spark plug lead to the spark plug. X7502346700 © 11/23 ECHO Incorporated...

  • Page 51: Specifications

    0.53 L (17.9 US fl. oz.) Capacity Starter System Automatic rewind starter Clutch Centrifugal type Drive Shaft Aluminum extrusion Sprocket Type 6 tooth spur, 9.53 mm (3/8 inch) pitch Gear Case Ratio 1.5:1 Oiling System Automatic X7502346700 © 11/23 ECHO Incorporated...

  • Page 52: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Incorporated. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 53 PPT-2620 / H PRODUCT REGISTRATION X7502346700 © 11/23 ECHO Incorporated...
  • Page 54 NOTES PPT-2620 / H NOTES X7502346700 © 11/23 ECHO Incorporated...
  • Page 55 PPT-2620 / H NOTES X7502346700 © 11/23 ECHO Incorporated...
  • Page 56 V01112001001 - V01112999999 V01312001001 - V01312999999 V01213001001 - V01213999999 V01413001001 - V01413999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
