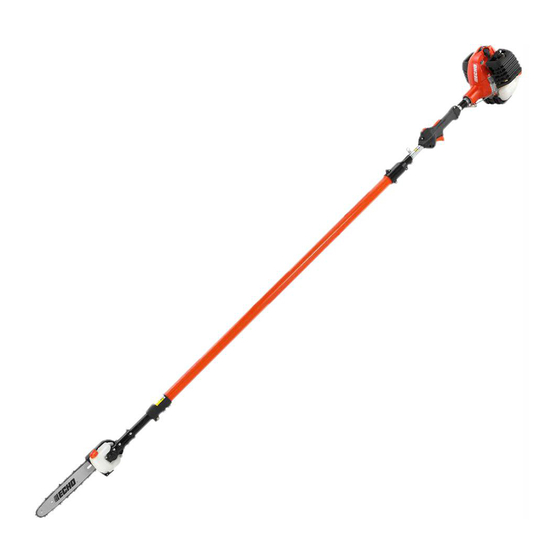

Power pruner
Hide thumbs
Table of Contents

Advertisement

Quick Links

POWER PRUNER
Operator's Manual
The muffler or catalytic muffler and surrounding cover may
become extremely hot. Always keep clear of exhaust and
muffler area, otherwise serious personal injury may occur.
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects, or other reproductive
harm.
Users of this equipment risk injury to themselves and others
if the unit is used improperly and/or safety precautions are
not followed. Echo provides an operator's manual and a
safety manual. Both must be read and understood for proper
and safe operation. Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
Specifications, descriptions and illustrative material in this literature are
as accurate as known at the time of publication, but are subject to
change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
X7507820600
© 2/2017 ECHO Inc.
PPT-2620 / H
Burn Hazard
TM

Advertisement

Table of Contents
loading

Related Manuals for Echo PPT-2620

Summary of Contents for Echo PPT-2620

  • Page 1 Users of this equipment risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. Echo provides an operator’s manual and a safety manual. Both must be read and understood for proper and safe operation. Failure to do so could result in serious injury.
  • Page 2 Introduction ....................4 Servicing Information .................. 4 Parts/Serial Number ................4 Service....................4 Echo Consumer Product Support ............5 Product Registration ................5 Additional or Replacement Manuals ............ 5 Safety ......................5 Manual Safety Symbols and Important Information ......5 International Symbols ................
  • Page 3 Guide Bar and Saw Chain Replacement........... 43 Filing Standard Saw Chain ..............44 Troubleshooting ..................47 Storage ..................... 48 Long Term Storage (Over 30 Days)........... 48 Specifications ................... 50 Product Registration ................. 52 Notes ......................54 X7507820600 © 2/2017 ECHO Inc.

  • Page 4: Introduction

    Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO (3246). Dealer information is also available on our Web Site.

  • Page 5: Echo Consumer Product Support

    Register your ECHO equipment on-line at www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your product confirms warranty coverage and provides a direct link to ECHO if we find it necessary to contact you.

  • Page 6: International Symbols

    Operator’s Manual High Speed Mixture Wear Eye, Ear and Carburetor Adjustment - Head Protection Idle Speed Wear Hand and Foot Carburetor Adjustment - Protection Low Speed Mixture Safety/Alert Emergency Stop Hot Surface Fuel and Oil Mixture X7507820600 © 2/2017 ECHO Inc.
  • Page 7 Choke Control “RUN” START” Position (Choke Position (Choke Open) Closed) Chain Lubrication Wear Slip Resistant Footwear Do not operate closer Keep bystanders at least than 15 m (50 ft.) from 4.5 m (15 ft.) away. electrical hazards. X7507820600 © 2/2017 ECHO Inc.

  • Page 8: Personal Condition And Safety Equipment

    Hearing/Ear Protection ECHO recommends wearing hearing protection whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit.
  • Page 9 To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine. In the absence of such information, ECHO does not recommend the use of this machine by anyone who has a pacemaker.
  • Page 10 To reduce the risk of RSI/CTS, do the following: • Avoid using your wrist in a bent, extended, or twisted position. Instead try to maintain a straight wrist position. Also, when grasping, use your whole hand, not just the thumb and index finger. X7507820600 © 2/2017 ECHO Inc.
  • Page 11 Keep a Solid Stance • Maintain footing and balance at all times. Do not stand on slippery, uneven or unstable surfaces. Do not work in odd positions or on ladders. Do not over reach. X7507820600 © 2/2017 ECHO Inc.

  • Page 12: Kickback

    Hold the Power PrunerTM firmly with both hands with thumbs and fingers encircling the front and rear handles. Be aware of the down and outward path the pruner will take after the cut is made. X7507820600 © 2/2017 ECHO Inc.

  • Page 13: Equipment

    If the saw chain does strike a foreign object, immediately stop the engine, inspect and repair the Power PrunerTM if necessary. Equipment Use only ECHO attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO.
  • Page 14 If damage or leaks are found, do not use unit, otherwise serious personal injury or property damage may occur. Have unit repaired by an authorized servicing dealer before using. X7507820600 © 2/2017 ECHO Inc.

  • Page 15: Emission Control (Exhaust & Evaporative)

    Maintenance Section of this manual. X7507820600 © 2/2017 ECHO Inc.

  • Page 16: Description

    Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. X7507820600...
  • Page 17 15. SPARK ARRESTOR MUFFLER OR SPARK ARRESTOR MUFFLER WITH CATALYST - The muffler or catalytic muffler controls exhaust noise and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler. Keep exhaust area clear of flammable debris. X7507820600 © 2/2017 ECHO Inc.
  • Page 18 22. TOP GUARD - Provides arm rest during operation and protects arm from hot engine. 23. GUIDE BAR COVER - Used to cover guide bar and saw chain during transport and storage. Remove guide bar cover before using unit. X7507820600 © 2/2017 ECHO Inc.

  • Page 19: Contents

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. ____1 Power Head / Handle assembly...

  • Page 20: Assembly

    Cutting Attachment to Drive Shaft Installation Saw Chain is sharp! Always wear gloves when handling assembly, otherwise serious personal injury may result Loosen the two (2) screws (A) and remove locator screw (B) on cutting attachment. X7507820600 © 2/2017 ECHO Inc.
  • Page 21 (D) in cutting attachment with locating hole (I) in upper tube. Install and tighten locator screw (B). Tighten two (2) cutting attachment screws (A). Extend upper tube to desired length. Tighten clamp knob (E) turning clockwise. X7507820600 © 2/2017 ECHO Inc.

  • Page 22: Saw Chain Adjustment

    When chain is properly tensioned, tighten guide bar nuts securely. Tighten guide bar nuts to 8 - 9 N•m (71 - 80 in. lbs.). DO NOT over- tighten nuts or damage may result. X7507820600 © 2/2017 ECHO Inc.

  • Page 23: Operation

    Fuel Diesel fuels and alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of diesel or alternative fuels may cause performance...

  • Page 24: Starting The Engine

    Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345-FD certified oil, such as Echo brand 2-stroke oils, will void the two- stroke engine warranty. Echo brand 2-stroke oils may be mixed at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio specified in those manuals.
  • Page 25 (30) days, ninety (90) days when a fuel stabilizer is added. Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use. Used oil and gasoline, and soiled towels are hazardous waste materials. Disposal laws vary by locality. X7507820600 © 2/2017 ECHO Inc.

  • Page 26: Lubricating The Guide Bar And Saw Chain

    If oil is leaking from the bar cover area, reduce the oil discharge volume. Refill the oil reservoir with each tank of fuel. X7507820600 © 2/2017 ECHO Inc.

  • Page 27: Note: Very Little Visible Oil On The Saw Chain Will Provide Sufficient Lubrication

    Move choke lever (B) to COLD START ( position. Purge Bulb Pump purge bulb (C) until fuel is visible and flows freely in the clear fuel tank return line. Pump bulb an additional 4 or 5 times. X7507820600 © 2/2017 ECHO Inc.

  • Page 28: Starting Warm Engine

    The starting procedure is the same as Cold Start except DO NOT close the choke, and do not hold throttle trigger fully depressed. The attachment should not move at idle, otherwise serious personal injury may result. X7507820600 © 2/2017 ECHO Inc.
  • Page 29 Firmly grip throttle handle and throttle trigger lockout with left hand. Rapidly pull recoil starter handle/rope (D) until engine fires. Note: If engine does not start after 5 pulls, use Cold Start Procedure. X7507820600 © 2/2017 ECHO Inc.

  • Page 30: Stopping Engine

    STOP position. If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using unit again. X7507820600 © 2/2017 ECHO Inc.

  • Page 31: Pruning Techniques

    • Plan retreat path from falling branch. Cut branches bounce Guide against branch. when striking ground. • Long branches should be removed in several pieces. • Do not stand directly beneath branch being cut. X7507820600 © 2/2017 ECHO Inc.

  • Page 32: Maintenance

    Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit. Allow unit to cool before performing service. Wear gloves to protect hands from sharp edges and hot surfaces. X7507820600 © 2/2017 ECHO Inc.

  • Page 33: Skill Levels

    PPT-2620 MAINTENANCE Your ECHO unit is designed to provide many hours of trouble free service. Regular scheduled maintenance will help your unit achieve that goal. If you are unsure or are not equipped with the necessary tools, we recommend that you take your unit to an ECHO Servicing Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded.

  • Page 34: Air Filter

    Close choke (COLD START [ ] position). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area. Remove air filter cover. Brush dirt from inside cover. X7507820600 © 2/2017 ECHO Inc.

  • Page 35: Fuel Filter

    • Lightly brush debris from filter. Replace filter if it is damaged, fuel soaked, very dirty, or the rubber sealing edges are deformed. Assemble components in reverse order. Assure air filter is assembled with pleats oriented vertically. Fuel Filter Level 1. Parts Required: Tune Up Kit. X7507820600 © 2/2017 ECHO Inc.

  • Page 36: Spark Plug

    Fines up to $37,500 may be enforced for using an un-certified replacement part. Spark Plug Level 2. Parts Required: Tune Up Kit. Use only NGK CMR7H spark plug otherwise severe engine damage may occur. X7507820600 © 2/2017 ECHO Inc.

  • Page 37: Cooling System

    This flow of air carries combustion heat away from the engine. Overheating and engine seizure can occur when: • Air intakes are blocked, preventing cooling air from reaching the cylinder. X7507820600 © 2/2017 ECHO Inc.

  • Page 38: Exhaust System

    Use brush to remove dirt from the cylinder fins. Remove grass and leaves from the grid (C) between the recoil starter and fuel tank. Assemble components in reverse order. Exhaust System Spark Arrestor Screen Level 2. X7507820600 © 2/2017 ECHO Inc.
  • Page 39 Exhaust Port Cleaning Level 2. Parts Required: As needed: Heat Shield Remove spark plug lead from spark plug, and remove muffler cover. Place piston at top dead center. Remove muffler (A) and heat shield (B). X7507820600 © 2/2017 ECHO Inc.

  • Page 40: Carburetor Adjustment

    1,100 feet above sea level (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may need to be adjusted by an authorized ECHO service dealer. X7507820600 © 2/2017 ECHO Inc.
  • Page 41 If a tachometer is available, idle speed screw (A) should be set to the specifications found on “Specifications” page of this manual. Turn idle screw (A) clockwise to increase idle speed; counterclockwise to decrease idle speed. X7507820600 © 2/2017 ECHO Inc.

  • Page 42: Lubrication

    Leave 2–3 inches of flex shaft exposed. DO NOT get dirt on flex shaft. Align flexible drive shaft with drive shaft socket, and slide together until handle is fully seated into drive shaft coupling. Tighten clamping screws (A). X7507820600 © 2/2017 ECHO Inc.

  • Page 43: Guide Bar And Saw Chain Replacement

    Install guide bar cover (D), and tighten guide bar nuts finger tight and install guide bar cover screw (B). Adjust chain tension. Guide Bar Cover Cleaning Remove two guide bar nuts (A) and guide bar cover screw (B). X7507820600 © 2/2017 ECHO Inc.

  • Page 44: Filing Standard Saw Chain

    Power Pruner Bar and Chain Combinations CHAIN LINK BAR P/N CHAIN P/N PITCH GUAGE TYPE Narrow Kerf 254 mm (10 in.) narrow bar 90PX39CQ 9.5 mm P/N 10A4CD3739 (0.375 0.043 305 mm (12 in.) in.) narrow bar 90PX44CQ P/N 12A4CD3744 X7507820600 © 2/2017 ECHO Inc.
  • Page 45 Always wear gloves when filing saw chain, otherwise serious personal injury may result. Set round file (A) in cutter at 30° angle. One fifth (1/5) of the file should be exposed above top cutter edge. ° X7507820600 © 2/2017 ECHO Inc.
  • Page 46 Apply clean oil and rotate saw chain slowly to wash away filings. Top Plate Cutting Angle If saw chain is coated or Depth Gauge clogged with resin, clean in kerosene, then soak in oil. X7507820600 © 2/2017 ECHO Inc.

  • Page 47: Troubleshooting

    Vibration Adjust adjustment does not acceler- Cooling Extended oper- Cooling system dirty ation in dirty or Clean system properly or plugged dusty locations Spark arres- Spark arres- tor screen Normal wear Replace tor screen plugged X7507820600 © 2/2017 ECHO Inc.

  • Page 48: Storage

    Do not store in enclosure where fuel fumes may accumulate or reach an open flame or spark. Place the stop switch in the “OFF” position. Remove accumulation of grease, oil, dirt and debris from exterior of unit. X7507820600 © 2/2017 ECHO Inc.
  • Page 49 Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston reaches the top of its travel and leave it there. Install the spark plug. Install the sprocket guard on the guide bar and saw chain during storage. X7507820600 © 2/2017 ECHO Inc.

  • Page 50: Specifications

    NGK CMR 7H (Gap 0.65 mm [0.026 in.]) Fuel Mixed (Gasoline and Two-stroke Oil) ® 50 : 1 Power Blend X or ECHO Red Armor ISO-L-EGD Fuel/Oil Ratio (ISO/CD 13738) and J.A.S.O. M345- FD, two-stroke, air- cooled engine oil. Use 89 Octane unleaded. Do not use fuel containing methyl Gasoline alcohol, more than 10% ethyl alcohol or 15% MTBE.
  • Page 51 PPT-2620 SPECIFICATIONS Model PPT-2620 PPT-2620H Clutch Engagement 4,100 Speed Wide Open Throttle 11,250 Speed (W.O.T.) Guide Bar and Saw 305 mm (12 in.); 9.53 mm (3/8 inch) pitch chain, 0.050 Chain (91) gauge X7507820600 © 2/2017 ECHO Inc.

  • Page 52: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 53 PPT-2620 PRODUCT REGISTRATION X7507820600 © 2/2017 ECHO Inc.

  • Page 54: Notes

    NOTES PPT-2620 NOTES X7507820600 © 2/2017 ECHO Inc.
  • Page 55 PPT-2620 NOTES X7507820600 © 2/2017 ECHO Inc.
  • Page 56 E60415001001 - E60415999999 E60515001001 - E60515999999 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
