StarTech.com WALLMOUNT4 Quick Start Manual

Wall-Mount Bracket for Shallow Rack-Mount Equipment - 4U

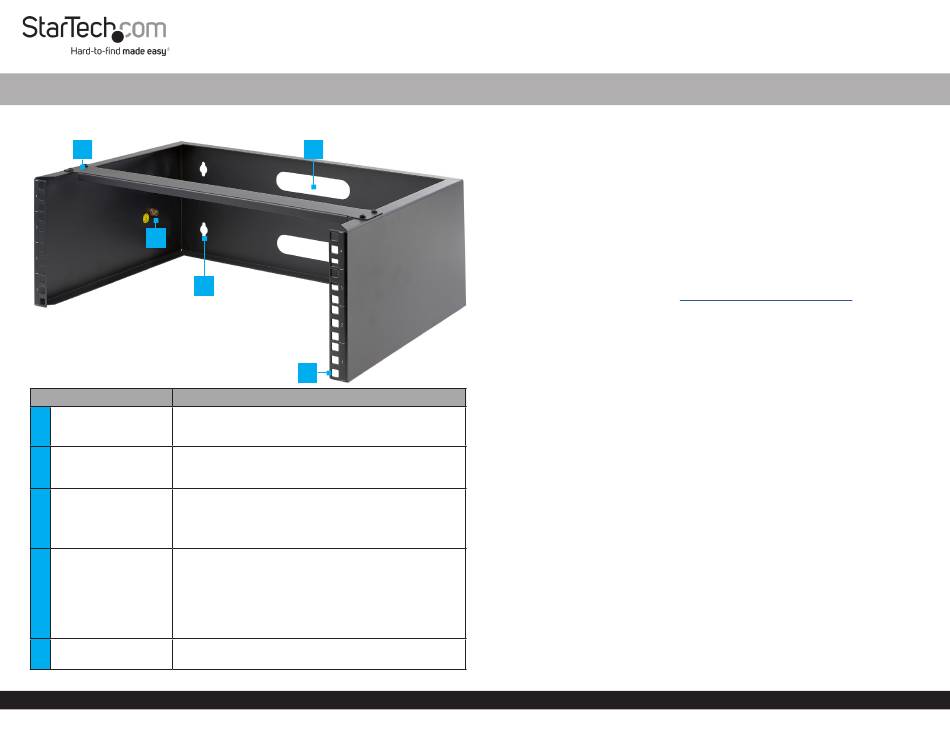

Product Diagram (WALLMOUNT4)
1
2
3
Component
• Stabilize the Wall-Mount Bracket when equipment is
1 Stabilizer Bar
loaded
• Attach a Grounding Wire (sold separately) to the
2 Grounding Stud Wall-Mount Bracket and to an Earth Ground
Connection
• Wall mount the Wall-Mount Bracket
Note: Product mounting should be completed by a
3 Installation Holes (x 4)
certified professional as per the local safety and building
code guidelines.
• (Optional) Route the equipment Cables
Notes: An appropriate size hole in the wall will be
necessary, behind the Wall-Mount Bracket, to route the
Cable Management
4
Cables.
Slots (x 2)
The Cables can be routed out of the bottom of the Wall-
Mount Bracket
• Use Cage Nuts to mount equipment into the Wall-
5
Cage Nut Holes
Mount Bracket
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
5
Function
Package Contents
• Wall Mounting Bracket for Patch Panel x 1
• M6 Screws x 16
• M6 Cage Nuts x 16
• M6 Plastic Cup Washers x 16
• Plastic Wall Anchors x 4
• M5-25 Flat-head screws x 4
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit
• Grounding Wire x 1
• Earth Ground Connection x 1
• Phillips Head Screwdriver
• 10mm Wrench x 1
• (Optional) Cage Nut Tool x 1
Grounding the Wall-Mount Bracket
1. Remove the M6 Nut on the Grounding Stud with a 10mm Wrench.
2. Slide the Grounding Lug from the Grounding Wire over the Grounding Stud.
3. Thread the M6 Nut onto the Grounding Stud and tighten with a 10mm Wrench.
4. Attach the other end of the Grounding Wire to an Earth Ground Connection.
Adding Equipment to the Wall-Mount Bracket
Use the included M6 Cage Nuts, Screws, and M6 Plastic Cup Washers to install
equipment into the Wall-Mount Bracket.
1. Insert the Wing (side) of an M6 Cage Nut into the back of the desired Cage Nut
Hole.
2. Apply pressure by hand, or with the Cage Nut Tool, to insert the second Wing of the
M6 Cage Nut into the desired Cage Nut Hole.
3. Repeat steps 1 and 2 to insert the desired number of Cage Nuts for the application.
4. Thread an M6 Plastic Cup Washer over an M6 Screw. Repeat until the desired
number of M6 Screws have been prepared.
Quick-Start Guide
www.startech.com/WALLMOUNT4
Manual Revision: October 27, 2020 6:55 PM
