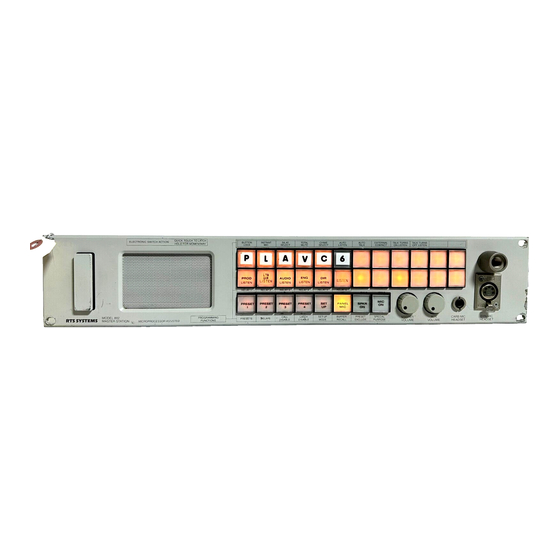

RTS 802 Technical Data Manual

Master station two wire intercom series
Hide thumbs Also See for 802:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual
Technical Data Package
Models 802 and 802A

Master Station

9300-3510-00 Rev F
5/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 802 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTS 802

Summary of Contents for RTS 802

  • Page 1: Master Station

    Technical Data Package Models 802 and 802A Master Station 9300-3510-00 Rev F 5/2006...
  • Page 2 OTICE The product information and design disclosed herein were originated by and are the property of Telex Communications, Inc. Telex reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.

  • Page 3: Table Of Contents

    TABLE CONTENTS Chapter 1 Description, Operation, and Specifications ...5 Model 802 Description / Operation ...5 Functional Components ...6 Front Panel: Description and Operation ...7 Preset 1 through Preset 4 (6) ...8 Call Signal (7) ...8 Panel Mic (8) ...8 Speaker ON (9) ...8 Microphone ON (10) ...8...
  • Page 4 External Speaker Output (See Figure 13) ... 21 Headsets ... 21 Headset Requirements ... 21 Headset Connections ... 22 Model 802 to Model 801 / Model 860 ... 23 Case 1: ... 23 Case 2: ... 23 Model 802 - Telephone ... 25 Method 1: ...
  • Page 5 Examples of Commands and Responses ... 53 Eavesdrop Mode ... 53 802 Software Update ... 54 Appendix D Summary of 802 Software Versions ... 55 Version 4.7 ... 55 Version 4.6 ... 55 Version 4.5 ... 55 Version 4.4 ... 56 Version 4.3 ...

  • Page 7: Description, Operation, And Specifications

    • as a combination of the above two bullets. The Master Station Block Diagram, Figure 1, “Model 802 Block Diagram,” on page 6, shows the Master Station functional components, input/output connections, and controls. CHAPTER 1...

  • Page 8: Functional Components

    Description, Operation, and Specifications Model 802 Block Diagram FIGURE 1. Functional Components • Two microphone preamplifiers each with a limiter • A panel microphone/headset microphone select electronic switch A microphone ON/OFF electronic switch • • “Talk circuitry” consisting of: Talk channel select electronic switches...

  • Page 9: Front Panel: Description And Operation

    Additional outputs to control some options “Reset” switch (tells microprocessor to reconfigure, using adjustment and mother board programming inputs) Factory installed “firmware” (operating system for microprocessor) Model 802 Front Panel FIGURE 2. Front Panel: Description and Operation The front panel contains 24 selector buttons (4), eight operation buttons (5), master (11) and auxiliary (12) volume controls, loudspeaker (2), gooseneck microphone (3), dynamic (14) and carbon (13) microphone headset connectors, and access to the adjustment board (1).

  • Page 10: Preset 1 Through Preset 4 (6)

    “Programming the Model 802” on page 43 for programming instructions. In the basic Model 802, the first twelve selection buttons (4A) activate the talk circuits (top buttons), and listen circuits (bottom buttons) of intercom channels 1 through 6. The remaining twelve selection buttons (4B) become operational with the addition of options.

  • Page 11: Adjustment Board: Description And Operation

    Adjustment Board: Description and Operation Adjustment Board: Description and Operation Model 802 Adjustment Board FIGURE 3. The Adjustment Board is located to the left of the loudspeaker. Release the board by first pressing and releasing the small rectangular panel (1) on the front panel illustration, and then pulling it forward.

  • Page 12: Assignment Switches

    The Programming Switches (C) are used to set up various special operating modes. See Figure 36 on page 39for illustration. Rear Panel: Description and Operation The Model 802 is connected to other Model 802’s, other systems, and external equipment using the connections on the Rear Panel.

  • Page 13: 4-Wire Connector

    Interfacing to Other Equipment DIRECT: An 802 connects directly to external equipment via the line connector, the back panel terminals and the Ancillary connector. SYSTEM: The Model 862 System Interconnect provides direct connection of up to 12 channels of TW Intercom, as well as audio inputs and output, and switching circuits.

  • Page 14: Specifications

    Description, Operation, and Specifications Specifications Color: Gray, Federal Stand 595A: Color #26492 Weight: 18 pounds (8.2 kilograms) Dimensions 3.5 inches (89 millimeters) high x 19.0 inches (483 millimeters) wide x 14.3 inches (363 millimeters) deep (excluding connector/microphone and adjustment board clearances. Inputs Dynamic Microphone Source Impedance...

  • Page 15: Chapter 2 Installation

    If the headset connector is remotely located, allow space between this cable and interfering sources such as TV monitors, power supplies and equipment with internal power supplies. The Mode 56-16 power supply, when used, should be mounted at least 1 to 2 feet away from the Model 802 to minimize hum pickup.

  • Page 16: Grounding

    Secure the cable connector by screwing the captive screw in the connector into the hole left in step (1), above. Use a cable tie to secure the other side of the connector, using the cable tie loop on the rear panel of the Model 802.
  • Page 17 Electrical Installation All Master Station System FIGURE 5. Terminator Plug FIGURE 6. Master Station System with Model 862 FIGURE 7.
  • Page 18 (Figure 10 on page 17), consists of four Model PS31 (or PS-30) power supply systems and Model BP- 300 user stations. To interface the TW Intercom System to the Model 802 Master Station System, connect PS-31 (PS-30) #1 output 1-2-3 to 862 input “CH 1-2-3”...
  • Page 19 Electrical Installation Use a cable tie to secure the other side of the connector, using the cable tie loop on the rear panel of the Model 802. Channel 12 Termination FIGURE 9. Model 802/TW Intercom System Bloc Diagram FIGURE 10.
  • Page 20 Installation Some block diagrams in this manual use codes contained in Table 1, Connector Code Table. Note, in this table, only chassis- mount connectors are specified. All male connectors are colored black. Connector Code Table TABLE 1. CODE PART NO. XLR-3-31 XLR-3-32 XLR-4-31...

  • Page 21: Signals - Features

    Press one of twelve talk buttons on the front panel of the Model 802 activates one of the twelve key outputs (respectively). Connections to these output are shown on sheet 20 of the Model 802 schematic. Figure 11 on page 18 show a typical output.
  • Page 22 Installation Model 802 Rear Panel Connections FIGURE 13.

  • Page 23: Vcp Connector (See Figure 13)

    TB10. When using an external microphone, disconnect the front panel microphone by unplugging connector, P1, from the motherboard. Electret microphone may also be used with the Mode 802. Both 2-wire and 3-wire microphones are accommodated. To use a 2-wire electret microphone, install resistor R3 on the motherboard.

  • Page 24: Headset Connections

    Installation Single cable, two shielded twisted pair: 10 feet (3.05 m). Dual ribbed cable, two shielded twisted pair: 30 feet (9.14 m). Separate cables, shielded twisted pair in each: 50 feet (15.24 m). Balanced microphone input: up to 100 feet (30.48 m). Headset Connections Dynamic Microphone Headset Connector: XLR-5-31 type receptacle...

  • Page 25: Model 802 To Model 801 / Model 860

    Case 1: Six channels of intercom, no SAs, no IFBs, no Slate, no Monitor Mute: use a standard six channel Model 802 to connect to a six channel “801” system. A wiring diagram for connecting a 6-channel Model 802 to an 801 system is shown in Figure 14.
  • Page 26 Installation Case 1: Front Panel Button Legend FIGURE 15. Case 2: 12-channel 802 to 6-channel 801 Interconnections FIGURE 16.

  • Page 27: Model 802 - Telephone

    Method 1: Connect a party-line (PL) channel from either one 802 or from an 862 to either a dry or wet phone line via a step-up transformer as shown in Figure 19 on page 26. Terminate the phone line with an 820 ohm resistor across the transformer...

  • Page 28: Method 2

    NOTE: The 200 ohm resistor termination is not required if a PS-31 (PS-30/60) is also connected. Method 4: Connect a Model 802 with 4-wire option (OPT802-C2, or OPT803-C3) to a TWI-326 as shown in Figure 22 on page 28. This method will work better than the two methods above.
  • Page 29 Electrical Installation Method 2: 802 to Telephone Interconnection FIGURE 20. Method 3: Model 802 to Telephone Interconnection FIGURE 21.

  • Page 30: Model 802 - Series 4000 Ifb

    Model 802 - Series 4000 IFB The Model 802 may be used in either of two ways with the 4000 series IFB system. Method “A” uses a line level, unswitched microphone output from the Model 802 to drive Models 4001, 4002, or 4003 IFB Control Stations. Method “B” emulates either a Model 4001 or 4002 IFB control station and requires no external parts, but it does require: 1) the installation of one or two IFB option boards, 2) that mother board programming switch(es) be actuated and 3) a microprocessor reset be executed.
  • Page 31 Electrical Installation Method “A”: Model 802 to IFB Connection (4 IFBs) FIGURE 23.
  • Page 32 Installation Method “A”: Model 802 to IFB Connection (8 IFBs) FIGURE 24.
  • Page 33 Electrical Installation Method “B”: Model 802 to IFB Connections (4 IFBs) FIGURE 25.
  • Page 34 Installation Method “B” Model 802 to IFB Connections (8 IFBs) FIGURE 26.

  • Page 35: Series 1000 Squawk

    Series 1000 Squawk The Model 802 may be used in either of two ways with the series 1000 squawk system. Method “A” requires an external model MCP-1010 squawk station that is connected to use the microphone and speaker in the 802. Method “B” emulates a model MCP-1010 squawk station with no external parts required.
  • Page 36 Incoming audio level is controlled by the adjustment board squawk level pot only and is not affected by front panel VOLUME control. Model 802 Front Panel Button Arrangement for 6 Squawks FIGURE 29. Model 802 Front Panel Button Arrangement for 10 Squawks...
  • Page 37 Electrical Installation Method “A”: Model 802 to Squawk Connection FIGURE 31.

  • Page 38: Camera (Video) Iso

    Camera (Video) ISO The Model 802 may be used in either of two way with the VIE-306 video iso electronics. Method “A” requires a model VCP- 6 or VCP-12 video iso control panel. Method “B” will emulate a model VCP-6 video control panel stations and requires no external parts.
  • Page 39 Electrical Installation Model 802 Front Panel Button Arrangement for ISO (Method “B) FIGURE 33.
  • Page 40 Installation Method “A”: Model 802 to ISO Connection FIGURE 34.
  • Page 41 Electrical Installation Method “B”: Model 802 to ISO Connection FIGURE 35. Adjustment Board Command Switch FIGURE 36.
  • Page 42 Installation Motherboard DIP Switch Assignments FIGURE 37.
  • Page 43 Electrical Installation...
  • Page 44 Installation...

  • Page 45: Programming The Model 802

    FIGURE 38. Introduction There are two kinds of programming functions on the Mode 802: Hardware and Software. The hardware programming is accomplished via “dip switches” and by plugging in option boards. The software programming is accomplished via the front panel buttons.

  • Page 46: Dip Switches

    If, after entering the SET-UP mode, no button is pressed within 13 seconds, the Model 802 will exit or leave the SET-UP mode and return to normal operation. If, however, a selection is made, the unit will remain in SET-UP mode until intentionally exited.

  • Page 47: Relays Programming Function

    The CALL DISABLE (call signal receive disable) programming function is only enabled if the Model 802 is equipped with a Call Signal option. In a multiple Master Station system, all 802’s may not want to receive incoming CALL signals from all channels.

  • Page 48: Latch Disable Programming Function

    Programming the Model 802 LATCH DISABLE Programming Function The LATCH DISABLE programming function allows the latching action of any dual-action button to be disabled. This means a button can be programmed to function as a momentary action button only. A logical application would be when a TALK button is programmed to key a two-way radio transmitter.

  • Page 49: Update For Compatibility With Models Vcp-6A1 And Vcp-12A

    If an 802 unit, with any ISO options (H0, H1, H5), does not appear to have the global reset function, remove the bottom cover and check the revision letter on the mother board (AW3000-1). 802 units with mother boards having revision letters of “G” or less have not been updated.
  • Page 50 Jumper wires should be #24 or #22 AWG. DETAIL: VCP-6A updates to the 802 Mother Board, AW 3000-1 (Circuit side shown)

  • Page 51: Model 802 Special Purpose Programming Mode Functions

    Appendix B Model 802 Special Purpose Programming Mode Functions Special Purpose Programming Mode The SPECIAL PURPOSE Programming Mode allows the user to choose additional operating features. These features are described within this chapter. The description includes instructions for the user to implement the features.

  • Page 52: Chime Select

    CHIME SELECT is used with Chime Options, E1, only. You have a choice of several chime tones which are Dissonant Tone, Bell Tone, Sweep Tone, and no tone. Only one tone can be used at a time. Normally, the 802 uses the Bell Tone which sounds after the software version is shown on the 802 front panel after “power up”...

  • Page 53: Addendum To Technical Data Package

    The following criteria are established as requirements for the RS232 communications option for the RTS Systems Model 802. Operate and interrogate all front panel buttons. Inhibit operation of front panel buttons. Determine Status of all DIP switches (byte wide). Read and modify all programmable (RAM) memory.

  • Page 54: Command Structure

    The operator tells the 802 whether to turn something on (+) or off (-) or to inquire about its present state (?). Some commands have no modifiers or operators such as WARM START or COLD START or VERSION.

  • Page 55: Examples Of Commands And Responses

    I12? B12R5+ B12R5- B12R5? G12+ G12- G12? K12+ K12- K12? M0100, 04, 0D D0100 X0100 HOST COMMAND 802 RESPONSE NONE NONE + or - NONE NONE + or - NONE NONE + or - NONE NONE + or - NONE...

  • Page 56: 802 Software Update

    802 Software Update The 802A unit is an updated edition of the 802 unit with a new CPU board installed; the new and improved 802A software version 5.2 has been released and is identical to version 5.1, with the exception of the software problems, which have been corrected.

  • Page 57: Summary Of 802 Software Versions

    Versions 4.5/4.6 are the first to use four EPROM’s, previous versions used three EPROMs Bilat 13/14 talk/listen gates not lifted/saved, (For example: during ISO). Version 4.5 Same as Version 4.6, but not released because of a bug: External ISO doesn’t key ON the mic. Summary of 802 Software Versions Appendix D...

  • Page 58: Version 4.4

    Summary of 802 Software Versions Version 4.4 This version never issued. Version 4.3 Correct minor bugs in version 4.2. Version 4.2 Added features: • Added Global Reset button for VCP-6A and VCP-12A options • Instant mic is now programmable to individual buttons Version 4.1...

  • Page 59: Documentation Summary Software

    Version 4.6 Mother Board DIP Switch Assignments Call light time-out selection OFF=1-6 talks, ON=7-12 talks. ON=801 emulation. ISO select. OFF=external contact, ON=buttons. ON=disable listen buttons when ISO active. ON=ISO system enabled. Not used. ON=disable talk buttons when IFB active. Adjustment Board DIP Switch Assignments Not used (old auto-call).

  • Page 62: Chime Choices

    Chime Choices Dissonant tone (DISS). Bell. Sweep tone (PHaSoR) Version 4.7 Mother Board DIP Assignments Call light time-out selection OFF=1-6 talks, ON=7-12 talks. ON=801 emulation. ISO select. OFF=external contact, ON=buttons. ON=disable listen buttons when ISO active. ON=ISO system enabled. Not used. ON=disable talk buttons when IFB active.

  • Page 65: Option Numbering System And Ordering Sy0Stem

    Each option for the 802 is listed as a separate model number (derived from the coding system below) which always starts with OPT802- followed by a suffix containing both a letter and a number. (i.e. OPT802-B). The suffix letter designates what the option is:...
  • Page 66 OPT802-E1 OPT802-G1 OPTION NAME/NUMBER DESCRIPTION “Option Base”: Required to support certain options (indicated below). NOTE: Only one “Options Base, is required per individual 802 OPT802-A0 Option Base, not installed OPT 802-A1 Option Base, installed “Talk” Option: Adds circuitry to channels 7-12...
  • Page 67 OPTION NAME/NUMBER DESCRIPTION “IFB” Option: Emulates a Model 4001 or Model 4002 IFB Control Station OPT802-G0 IFB, not installed OPT802-G1 IFB, 4001, (IFB 1-4, SA1) OPT802-G5 IFB, 4002, (IFB 5-8, SA2) NOTE: Requires “Option Base” Option G5 also requires option G1 G1 and G5 are both installed “ISO”...
