Summary of Contents for RTS ARP-32

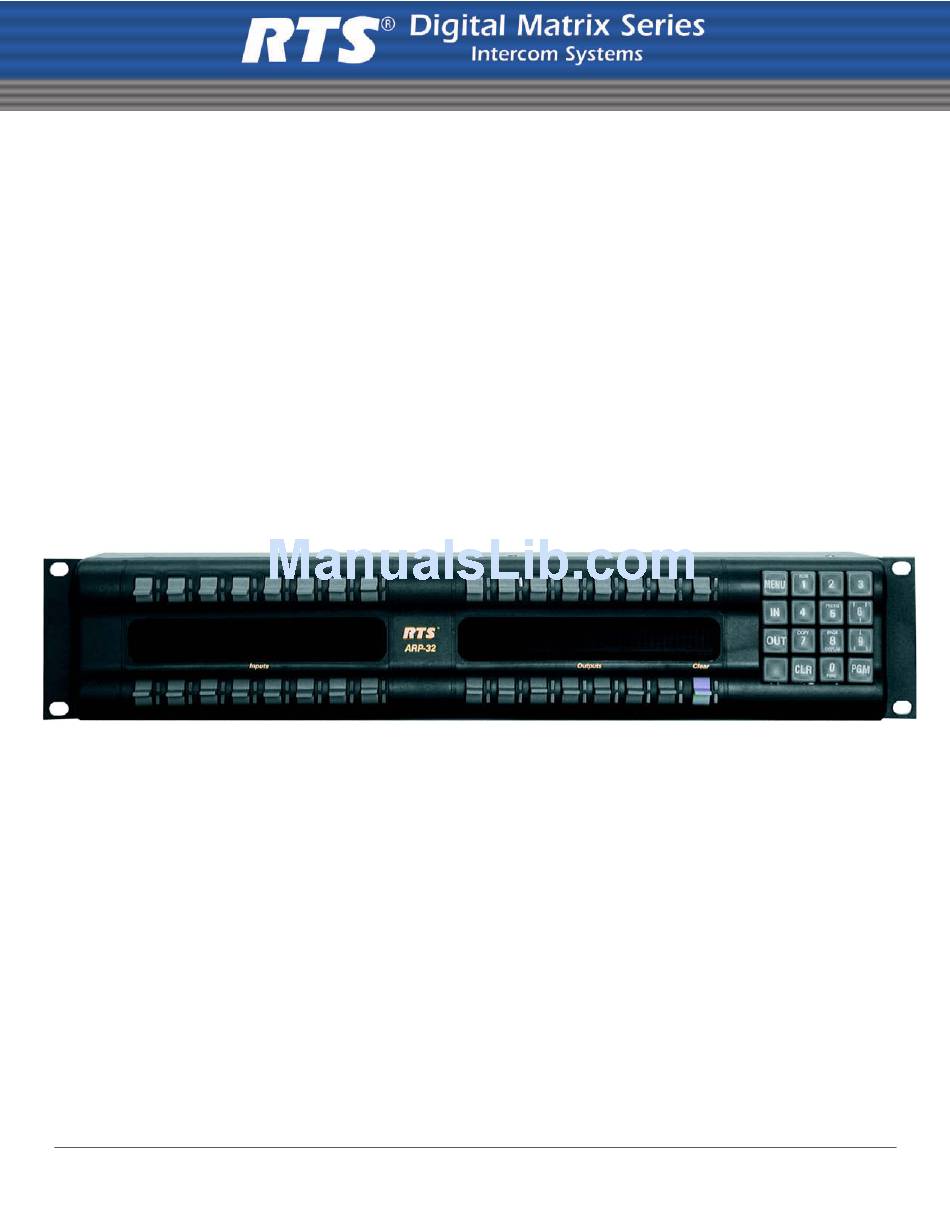

- Page 1 MODEL ARP-32 Audio Routing Panel Upto and including Version 0.0.1 9350-7849-000 Rev A 5/2007...
- Page 2 OTICE The product information and design disclosed herein were originated by and are the property of Telex Communications, Inc. Telex reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.
-
Page 3: Table Of Contents
Changing Audio Paths ...10 Scrolling ...10 Clear the Scroll Window ...10 Keypad Operation ...11 AZedit and the ARP-32 ...11 Assign Key Assignments ...11 Downloading Firmware to the ARP-32 ...12 Table Contents Menu Mode ...15 Display ...15 Item # ...15 Panel ID ...15 Setup Pages ...15... -
Page 5: Introduction
Uses AZedit’s Crosspoint screen as a graphical interface for the user to force and inhibit configured ports. • The ARP-32 supports up to a maximum of three expansion panels, allowing a total of 64 input keys and 63 output keys, in addition to a scroll key. - Page 6 Introduction ARP-32 Reference View FIGURE 1.
-
Page 7: Specifications
Specifications Specifications Matrix Connections DE-9S Female RJ12 Female Power Requirements 100-240 VAC. 50/60 Hz, 1A Environmental Operating Temperature 0° C to 50° C Storage Temperature -20° C to 75° C Humidity (Operating and Storage) 0%-95%, non-condensing Dimensions 3.44” (88mm) high 19”... - Page 8 Introduction...
-
Page 9: Configuration And Operation
A16-position rotary switch is used to select the polling ID. Valid IDs are 1-15. (Note, letters A through F on the rotary switch represent IDs 10 through 15.) There can be at most one ARP-32 or LCP-102 at any given ID. Use a small flat blade screw driver to rotate the switch to the desired setting. -
Page 10: Connections
Configuration and Operation Connections The ARP-32 connects to the UIO-256/PAP port, J3 on an ADAM system. The baud rate, as with all UIO-256, PAP, and LCP- 102 devices, can be either 9600 baud or 76.8 K baud. A cable must be made to connect the ARP-32 to the system. -
Page 11: Operation
The ARP-32 hardware consists of 32 keys, physically separated into two groups (see Figure 1, “ARP-32 Reference View,” on page 4). The keys on the left side of the ARP-32 panel are configured with input ports, while the keys on the right side of the panel are configured with output ports. -
Page 12: Changing Audio Paths
When using the scroll key to force/unforce, a crosspoint can be used as an input or an output key. If a crosspoint (or its reciprocal) is inhibited, attempting to force or unforce the crosspoint has no effect. The ARP-32 cannot change the crosspoint until the inhibit status is changed via AZedit. -
Page 13: Keypad Operation
You can also us the ARP-32 port alpha drop-down menu to select the port. NOTE: You can only assign point-to-point assignments. There are 3 three ways to assign ports to the ARP-32 (in either the input or output assignments): • Manually enter the port number (N001, N002, etc.) or port alpha. -
Page 14: Downloading Firmware To The Arp-32
Configuration and Operation Downloading Firmware to the ARP-32 NOTE: The ARP-32 firmware cannot be downloaded when the panel is operating as an ARP panel. To download firmware to an ARP-32, do the following: Power OFF the panel. Disconnect the panel from the intercom. - Page 15 Downloading Firmware to the ARP-32 Click Open. The Download Device Firmware window appears. Click Begin Download. The download begins. Once the download is complete, a success message appears.
- Page 16 Configuration and Operation Click OK. The ARP-32 firmware download is complete. This may take a few minutes to occur. Verify the version upgrade in the Keypanel Version Information window is correct. Power OFF the panel. Set DIP Switch 8 to OPEN.
-
Page 17: Menu Mode
15 seconds, or when the CLR key is pressed. Panel ID The Panel ID menu item displays the polling ID of the ARP-32 (in the range 1 through 15). Setup Pages Use the Setup Pages menu item to display different configuration pages. For example, to display expansion panel 2 input configuration, select X2/Inp. -
Page 18: Service
Menu Mode Service To access the Service menu via the front panel, do the following: On the ARP-32 keypad, press MENU. Menu mode opens and Display appears. Using the keypad, press either Press PGM. Baud appears in the right most display. -
Page 19: Notes
Notes Notes...
