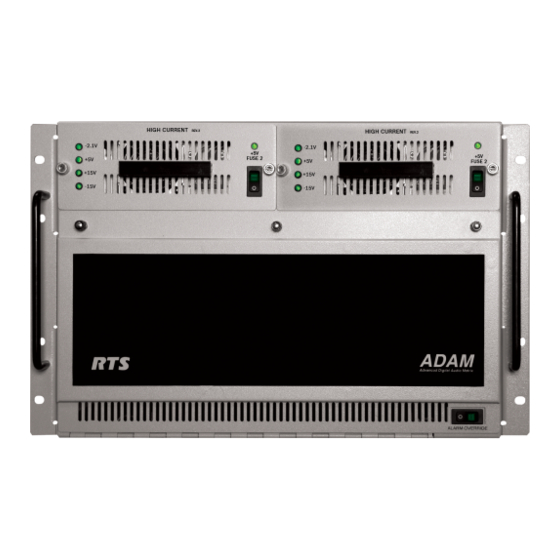

RTS MC-ADAM System Installation Manual

Advanced digital audio matrix
Hide thumbs Also See for MC-ADAM:
Table of Contents

Advertisement

Quick Links

TM
ADAM
Advanced Digital Audio Matrix
SYSTEM INSTALLATION GUIDE
™
Advanced Digital Audio Matrix
™
9330-7467-000 Rev E
8/97
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-ADAM and is the answer not in the manual?

Questions and answers

Related Manuals for RTS MC-ADAM

Summary of Contents for RTS MC-ADAM

  • Page 1 ADAM Advanced Digital Audio Matrix SYSTEM INSTALLATION GUIDE ™ Advanced Digital Audio Matrix ™ 9330-7467-000 Rev E 8/97...

  • Page 2: Table Of Contents

    Contents Unpacking the Components 1 Mounting the Central Matrix Components 1 ADAM Circuit Cards 1 Front Card Access 1 Card Removal and Installation 1 Unused Back Card Slots 2 Master Controller Card DIP Switches 2 Power Supply Removal/Installation 2 AC Power Connection 2 ADAM Frame Power-Up 2 Circuit Card Reset and Fail Indication 2 Alarm Operation 2...

  • Page 3: Unpacking The Components

    Unpacking the Components Unpack the contents of the shipping crates and carefully inspect for damage. Notify the freight carrier immediately if any damage is noted. Check off all items as noted in the packing lists. Safety Tip Use caution when lifting the system components. A fully loaded ADAM Card Frame, for example, weighs approxi- mately 75 lbs (34 kg).

  • Page 4: Unused Back Card Slots

    vided by the Audio Input/Output Card in slot number 8. Therefore, if your intercom system uses fewer than ten Audio Input/Output Cards, make sure that slots 9 and 8 are filled in any case. Also, never remove cards 9 and 8 at the same time as the intercom system will cease to operate.

  • Page 5: Connections To The Adam Card Frame

    Note The power supply alarm will also sound if a power supply is turned off. This is normal. Either turn on the power sup- ply, or turn off the ALARM OVERRIDE switch. Connections to the ADAM Card Frame An ADAM Intercom System can be setup in a variety of configurations to meet different user requirements.

  • Page 6: Uio-256 Input/Output Frame

    number 1. Reset the switches, as shown in Table 5, page 11, so that each PAP has a unique panel number. By default, all PAP’s are supplied with the lower of two ranges of IFB’s selected. For example, a PAP-952 is set by default to work with IFB numbers 1 to 24.

  • Page 7: Connecting To A Trunking Master Controller

    Once an input has been assigned to a key, it is then neces- sary to define a device to be activated by that key. This is accomplished in the keypanel edit screen for the port to which the digital input was assigned. (See “Key Panel Setup: Key Assignments and Key Restrictions”...

  • Page 8: Logical Keypanel Numbers

    then makes the necessary talk and listen connections so that a conversation can take place. It also sends data to the device being called; for example, to display the caller’s name at a keypanel, or to activate a telephone line at a TIF-951 Telephone Interface etc.

  • Page 9: Program Source Notes

    numeric displays should change from asterisks (****) to dashes (----). • When the KP-12’s keypanel address is initially set, it is automatically saved. Unlike KP-9X series key- panels, no power-off reset is required. To change the intercom port number at a later time, see “Service Menu”...
  • Page 10 Pressing a PL4 key will activate its talk/listen assignment, and at the same time, it will disable the PL1 through PL3 keys directly above it. When the ISO key is turned off, the previous state of the other three keys will be restored. This ISO feature is selectable using an internal DIP switch in the CDP-950.
  • Page 11 Table 1. ADAM Master Controller Card DIP Switch Settings (S1) Switch Description (On=closed; Off=open) CSedit baud rate select Off: 9600 baud On: 38.4 Kbaud Keypanel Incoming message option Off: Normal operation On: All callers displayed in Incoming Messages window Keypanel "busy" and "in-use" flash Off: Enable On: Disable Trunk master baud rate select.
  • Page 12 Table 2. Relationship between Audio Input/Output Cards, Intercom Ports, and Logical Keypanel Numbers Logical Keypanel Number * The cards in slots 8 and 9 provide the main and backup system clock signals. These slots must be filled for proper operation. Intercom Port Numbers, Grouped by Audio I/O Card Number...
  • Page 13 Table 3. Address DIP Switch Settings for KP-95/96/97/98 Keypanels and the TIF-951 Telephone Interface Logical Keypanel SW 4 Number Closed Open Closed Open Closed Open Closed Open Table 4. CDP-950 intercom Range Selection Ports DIP Switch Number Controlled* #1 only Open Closed Closed...
  • Page 14 Table 7. UIO-256 DIP Switch SW1 Settings for Input/Output Range Range 1-16* Open Open 17-32 Open Open 33-48 Open Open 49-64 Open Open * Default Table 8. UIO-256 Relay Outputs Connector (J5) Pin Numbers Relay Output Numbers* NC Contact Common 1/17/33/49 2/18/34/50 3/19/35/51...
  • Page 15 Intercom System Planning Worksheet, Sheet 1 of 6 ADAM Logical Intercom Audio I/O Keypanel Port No. Card No. Number* CSedit CSedit Alpha Alias Description (Device type, location, user etc.) ADAM Installation Manual 13...
  • Page 16 Intercom System Planning Worksheet, Sheet 2 of 6 Intercom ADAM Logical Port No. Audio I/O Keypanel Card No. Number* 14 ADAM Installation Manual CSedit CSedit Alpha Alias Description (Device type, location, user etc.)
  • Page 17 Intercom System Planning Worksheet, Sheet 3 of 6 ADAM Logical Intercom Audio I/O Keypanel Port No. Card No. Number* CSedit CSedit Alpha Alias Description (Device type, location, user etc.) ADAM Installation Manual 15...
  • Page 18 Intercom System Planning Worksheet, Sheet 4 of 6 ADAM Logical Intercom Audio I/O Keypanel Port No. Card No. Number* 16 ADAM Installation Manual CSedit CSedit Alpha Alias Description (Device type, location, user etc.)
  • Page 19 Intercom System Planning Worksheet, Sheet 5 of 6 ADAM Logical Intercom Audio I/O Keypanel Port No. Card No. Number* CSedit CSedit Alpha Alias Description (Device type, location, user etc.) ADAM Installation Manual 17...
  • Page 20 Intercom System Planning Worksheet, Sheet 6 of 6 ADAM Logical Intercom Audio I/O Keypanel Port No. Card No. Number* 18 ADAM Installation Manual CSedit CSedit Alpha Alias Description (Device type, location, user etc.)
  • Page 21 1001 XCP-40-RJ11 INTERCOM STATION BREAKOUT PANEL 1002 PORT NO. 1 - 40 1003 PANEL NO. 1 1004 SEE DRAWINGS 9027-7494-000 1005 9030-7494-000 1006 XCP-40-RJ11 INTERCOM STATION BREAKOUT PANEL 1007 PORT NO. 41 - 80 1008 PANEL NO. 2 1009 SEE DRAWINGS 9027-7494-000 1010 9030-7494-000...
  • Page 22 1001 XCP-40-DB9 INTERCOM STATION BREAKOUT PANEL 1002 PORT NO. 1 - 40 1003 PANEL NO. 1 1004 SEE DRAWINGS 9027-7515-000 1005 9030-7515-000 1006 XCP-40-DB9 INTERCOM STATION BREAKOUT PANEL 1007 PORT NO. 41 - 80 1008 PANEL NO. 2 1009 SEE DRAWINGS 9027-7494-000 1010 9030-7494-000...
  • Page 23 AUDIO IN 1101 1001 XCP-955 1 - 24 STATION JACKFIELD BREAK AUDIO OUT 1102 1002 1 - 24 PORTS 1 - 24 JACKFIELD KP DATA 2101 2001 1 - 24 JACKFIELD USED AUDIO IN 1103 1003 XCP-955 25 - 48 STATION JACKFIELD BREAK...
  • Page 24 AUDIO IN 1001 XCP-955 1 - 24 STATION JACKFIELD BREAK AUDIO OUT 1002 PORTS 1 - 24 1 - 24 JACKFIELD KP DATA 2001 1 - 24 JACKFIELD USED AUDIO IN 1003 XCP-955 25 - 48 STATION JACKFIELD BREAK AUDIO OUT 1004 25 - 48 PORTS...
  • Page 25 AUDIO IN 1101 1001 XCP-955 1 - 24 STATION JACKFIELD BREAK AUDIO OUT 1102 1002 1 - 24 PORTS 1 - 24 JACKFIELD 2001 USED AUDIO IN 1103 1003 XCP-955 25 - 48 STATION JACKFIELD BREAK AUDIO OUT 1104 1004 PORTS 25 - 48 25 - 48...
  • Page 26 AUDIO IN 1001 XCP-955 1 - 24 STATION JACKFIELD BREAK AUDIO OUT 1002 PORTS 1 - 24 1 - 24 JACKFIELD USED AUDIO IN 1003 XCP-955 25 - 48 STATION JACKFIELD BREAK AUDIO OUT 1004 PORTS 25 - 48 25 - 48 JACKFIELD USED AUDIO IN...
  • Page 27 AUDIO IN 1101 1001 1 - 24 JACKFIELD AUDIO OUT 1102 1002 1 - 24 JACKFIELD XCP954-48 KP DATA 2101 STATION 2001 1 - 24 BREAK JACKFIELD PORTS 1 - 48 AUDIO IN 1103 1003 25 - 48 JACKFIELD AUDIO OUT 1104 1004 25 - 48...
  • Page 28 AUDIO IN 1001 1 - 24 JACKFIELD AUDIO OUT 1002 1 - 24 JACKFIELD XCP954-48 KP DATA 2001 STATION 1 - 24 BREAK JACKFIELD PORTS AUDIO IN 1 - 48 1003 25 - 48 JACKFIELD AUDIO OUT 1004 25 - 48 JACKFIELD KP DATA 2002...
  • Page 29 ADAM MATRIX FRAME REAR VIEW AIO-BC-8 CARDS SEE OPTIONS BELOW AIO-BC-8-RJ AIO-BC-8-SCSI REAR CONNECTOR REAR CONNECTOR PN 90007512000 PN 90007511000 RJ11, 6 PINS REAR CONNECTOR KEY PANEL CARD OPTION DATA RS485 RJ45, 8 PINS OUTPUT 1-4 RJ45, 8 PINS OUTPUT 5-8 RJ45, 8 PINS INPUT 1-4 RJ45, 8 PINS...
  • Page 30 TYPICAL 25 PAIRS 50 PINS SCSI-2 CABLE MALE SCSI-2 CONNECTOR PAIR 01 PAIR 02 PAIR 03 PAIR 04 PAIR 05 PAIR 06 PAIR 07 PAIR 08 PAIR 09 PAIR 10 PAIR 11 PAIR 12 PAIR 13 PAIR 14 PAIR 15 PAIR 16 PAIR 17 PAIR 18...
  • Page 31 TYPICAL 25 PAIRS 50 PINS TELCO CABLE MALE TELCO CONNECTOR PAIR 01 PAIR 02 PAIR 03 PAIR 04 PAIR 05 PAIR 06 PAIR 07 PAIR 08 PAIR 09 PAIR 10 PAIR 11 PAIR 12 PAIR 13 PAIR 14 PAIR 15 PAIR 16 PAIR 17 PAIR 18...
  • Page 32 TYPICAL 25 PAIRS 50 PINS TO RJ45 CABLE MALE TELCO CONNECTOR TYPICAL DENOTES TWISTED PAIRS NOTE: CABLE DETAILS FOR 8 PINS MALE RJ45 CONNECTOR RJ45 CONNECTOR RJ45 CONNECTOR RJ45 CONNECTOR RJ45 CONNECTOR RJ45 CONNECTOR RJ45 CONNECTOR REVISIONS ZONE DESCRIPTION ASSEMBLY DETAIL TELCO 50 PINS, MALE 90 DEGREE COVER PART NO.
  • Page 33 CABLE DETAILS INTERCOM KEY PANEL CH. 1 - 8 INTERCOM KEY PANEL CH. 9 - 16 INTERCOM TELCO 50 PIN KEY PANEL MALE CONNECTOR CH. 17-24 CINCH 57-30500 SOLDER PINS NOT USED --- RJ11 CONNECT TO AIO-8-BC, J2 RS485 + RS485 - RS485 + RS485 -...
  • Page 34 CABLE DETAILS INTERCOM KEY PANEL CH. 1 - 8 INTERCOM KEY PANEL CH. 9 - 16 INTERCOM KEY PANEL CH. 17-24 TELCO 50 PIN MALE CONNECTOR CINCH 57-30500 SOLDER PINS NOT USED --- DE-9-P CONNECT TO XCP954-48 REVISIONS ZONE DESCRIPTION DATE ASSEMBLY DETAILS TELCO 50 PIN, MALE...
  • Page 35 TYPICAL 34 PAIRS 50 PINS SCSI-2 CABLE MALE SCSI-2 CONNECTOR TYPICAL DENOTES TWISTED PAIRS CABLE DETAILS FOR : 50 PINS MALE SCSI-2 CONNECTOR REVISIONS ZONE DESCRIPTION ASSEMBLY DETAILS SCSI-2 68 PINS MALE CONNECTOR NOMINAL LENGTH : 8 FT. SCSI-2 68 PIN MALE CONNECTOR POSITION 1 POSITION 2...
  • Page 36 DE-9-P MALE, 9 PINS " D " SUB CONNECT TO MATRIX GROUND XCP-ADAM-MC DE-9-P MALE, 9 PINS " D " SUB CONNECT TO MATRIX GROUND XCP-ADAM-MC DE-9-S FEMALE, 9 PINS " D " SUB CONNECT TO P . C. GROUND RS232C SERIAL PORT COM.
  • Page 37 DE-9-P MALE, 9 PINS " D " SUB CONNECT TO MATRIX XCP-ADAM-MC RS485 + RS485 - GROUND TRUNK MASTER CONTROLLER COMMUNICATION PORTS TELCO AMP CHAMP ASSIGNMENT TABLE MALE, 50 PINS RS485 SERIAL CONNECT TO TM9589 COMM. PORT CONN. PIN + PIN - RS485 + RS485 -...
  • Page 38 DA-15P DA-15P (MALE) (MALE) CONNECT TO MATRIX RS485 + RS485 - GROUND UIO-256 TO UIO-256 INTERCONNECT CABLE DE-9-P MALE, 9 PINS " D " SUB TO XCP-ADAM-MC, J3 RS485 + RS485 - GROUND PAP-940, PAP-951, OR PAP-952 TO XCP-ADAM-MC MASTER CONTROLLER BREAKOUT PANEL DE-9-P MALE, 9 PINS "...
  • Page 39 CONTACTS RJ 11 MOD PLUG 123456 (VIEW FROM CABLE ENTRANCE) LATCH 3 TWISTED PAIR TELEPHONE CABLE PAIR 1: AUDIO TO MATRIX PAIR 2: AUDIO FROM MATRIX PAIR 3: DATA DATA - AUDIO FROM MATRIX + AUDIO TO MATRIX + AUDIO TO MATRIX - AUDIO FROM MATRIX - DATA + RJ-11 INTERCOM CABLE...
  • Page 40 TO INTERCOM STATION BREAKOUT PANEL TO INTERCOM STATION BREAKOUT PANEL CDP-950 DE-9S (FEMALE) DE-9S DE-9P (FEMALE) (MALE) SINGLE PAIR DATA CABLE FOR CONNECTION OF CDP-950 ONLY CDP-950 CABLES FOR CONNECTION TO INTERCOM STATION BREAKOUT PANELS WITH 9-PIN D-SUB CONNECTORS INTERCOM STATION TO INTERCOM STATION BREAKOUT PANEL...

  • Page 41: Index

    Index CDP-950 Camera Delegate Panel DIP switch settings for range selection General information Interconnect cable wiring diagrams Circuit Cards Access Card slot numbering and usage Master Controller Card DIP Switches Removal and Installation Reset and Fail Indication System clock signals Unused Back Card Slots Configuration Computer Connection and Check...
