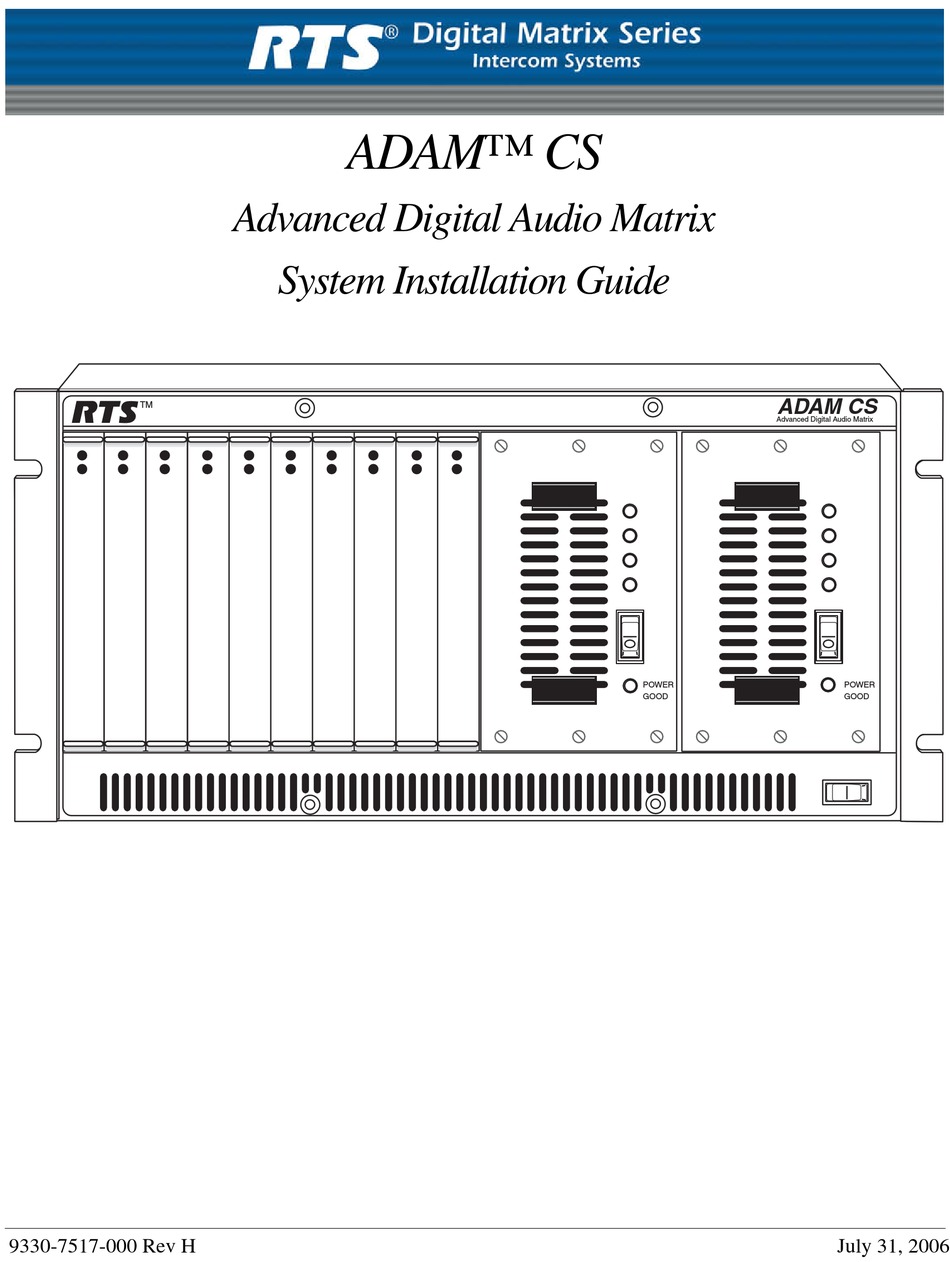

  • Page 1 Advanced Digital Audio Matrix 9330-7517-000 Rev H ADAM™ CS System Installation Guide ADAM CS Advanced Digital Audio Matrix POWER POWER GOOD GOOD July 31, 2006...
  • Page 2 OTICE The product information and design disclosed herein were originated by and are the property of Telex Communications, Inc. Telex reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.

  • Page 3: Table Of Contents

    Chapter 1 Introduction and Installation ...3 ADAM CS Front Panel ...3 ADAM CS Back Panel ...3 ADAM CS Frame Installation ...4 Circuit Cards ...4 Card Installation and Removal ...4 Unused Card Slots ...4 Card Reset and Fail Indication ...4 Audio I/O Card Notes ...4 Master Controller Notes ...5 Power Supply Removal /Installation ...5 AC Power Connection ...5...
  • Page 5 List Tables ADAM CS, J903 Connector Pinout ...15 ADAM CS Master Controller Card DIP Switch Settings (S1) ...19 Relationship between Audio Input/Output Cards, Intercom Ports, and Logical Keypanel Numbers ...20 Address Switch Settings for KP-95/96/97/98 Keypanels and the TIF-2000 Telephone Interface ...20 UIO-256 DIP Switch SW1 Setting for Input/Output Range ...21 UIO-256 GPI Outputs Connectors (J5) ...21 UIO-256 GPI Inputs Connector (J7) ...22...
  • Page 7 List Figures ADAM CS Front View ... 11 ADAM CS Back View (Shown with RJ-11 Connector Panel) ... 12 ADAM CS J900 to Computer Interconnect Cables (ADAM CS with male J900 Connector) ... 13 ADAM CS J900 to Computer Interconnect Cables (ADAM CS with female J900 Connector) ... 13 RJ-12 Intercom Keypanel Cable ...

  • Page 9: Introduction And Installation

    NOTICE: These servicing instructions are for use by qualified personnel only. To avoid electric shock do not perform any servicing other than that contained in the Operating Instructions unless you are qualified to do so. ADAM CS Front Panel There are 10 card slots in the front panel. Starting from the left side, slots 1 through 8 are for Audio Input/Output (AIO) Cards. Slots 9 and 10 are for main and backup Master Controller Cards.

  • Page 10: Adam Cs Frame Installation

    Introduction and Installation ADAM CS Frame Installation The ADAM CS Frame is equipped with rubber feet for placement on a desktop. For installation in an equipment rack, it may be necessary to remove the feet. Verify that the ventilation holes on the front and back are not obstructed. Allow space in back for attachment of connectors (at least 24 inches).

  • Page 11: Master Controller Notes

    Power Supply Removal /Installation Master Controller Notes • As shipped from the factory, all master controller card DIP switches are set for default operation. These settings will be satisfactory for most applications. Optional settings are summarized in Table 2, “ADAM CS Master Controller Card DIP Switch Settings (S1),”...
  • Page 12 Introduction and Installation...

  • Page 13: Chapter 2 Operation

    System Power Up NOTE: For proper power supply loading, at least two circuit cards should be installed in the frame before turning on the power supplies. Place the AC switches on the back of the ADAM CS Frame in the ON position. The AC fans should turn on.

  • Page 14: Software Installation

    Operation Software Installation Now that the ADAM CS frame is operating and the configuration computer is connected, you are ready to install the AZedit software and verify the computer can communicate with the intercom system. Follow the directions to install the software that accompanied the AZedit CD.

  • Page 15: Trunking System

    Trunking System • Briefly note the device type (keypanel, TIF, program source, CDP-950, etc.). Other useful information might include the device location and usage, as well as any labeling on the intercom cable. • Write down a name of up to eight characters in the “Alpha” column of the worksheet. You will enter this name inot the intercom system later using AZedit.

  • Page 16: Uio-256 Input/Output Frame

    Operation intercom system. There is no apparent difference to keypanel operators, but what actually occurs in the system electronics is slightly different. When a keypanel operator activates a key to talk to a destination located in another intercom system, the intercom system’s master controller does not act itself to close any crosspoints, but rather, it sends this information to the trunking system via the data connection.

  • Page 17: Additonal Uio-256S

    UIO-256 Input/Output Frame Additonal UIO-256s Up to 15 additional UIO-256 frames may be connected in a parallel bus configuration using the 15-pin ribbon cables provided. Connect the J3 output of the ADAM MC to the J2 connection on the UIO-256. Connect J2 output of the first UIO- 256 to the input for the second UIO-256 to the J2 input of the third UIO-256.

  • Page 18: Adam Cs Back View (Shown With Rj-11 Connector Panel)

    Operation J900 J901 J902 J900: RS232 TO CONFIGURATION PC J901: RS422/232 TO TRUNK MASTER J902: RS422/232 TO ACCESSORIES (PAP,UIO-256) J903: GENERAL PURPOSE INPUT/OUTPUT ADAM CS Back View (Shown with RJ-11 Connector Panel) FIGURE 2. J500 J501 J502 J503 J504 J505 J506 J507 J100 J101 J102 J103 J104 J105 J106 J107 J600 J601 J602 J603 J604 J605 J606 J607 J200 J201 J202 J203 J204 J205 J206 J207...

  • Page 19: Adam Cs J900 To Computer Interconnect Cables (Adam Cs With Male J900 Connector)

    UIO-256 Input/Output Frame ADAM CS J900 to Computer Interconnect Cables (ADAM CS with male J900 FIGURE 3. Connector) TO INTERCOM SYSTEM RX 4 TX 3 GND 1 9-PIN MALE CONNECTOR (DE-9P) TO INTERCOM SYSTEM RX 4 TX 3 GND 1 9-PIN MALE CONNECTOR (DE-9P)

  • Page 20: Rj-12 Intercom Keypanel Cable

    Operation AMP 5-555042-3 or equivalent (View from cable entrance) FIGURE 5. FIGURE 6. Use AMP Chordal RJ12 MODULAR PLUG 123456 Crimp Tool 231648-1 or equivalent 3 TWISTED PAIR TELEPHONE CABLE PAIR 1: AUDIO TO MATRIX PAIR 2: AUDIO FROM MATRIX PAIR 3: DATA DATA - AUDIO FROM MATRIX +...

  • Page 21: To 9-Pin Intercom Cable. Used For Tif Connection To Adam Cs With Rj-11 Back Panel

    UIO-256 Input/Output Frame Use any convenient ground pin for each digital input and digital output. TABLE 1. RJ-11 to 9-pin Intercom Cable. Used for TIF connection to ADAM CS with FIGURE 7. RJ-11 Back Panel Pin No. Function Digital (GPI) Input #1 High Digital (GPI) Input #2 High Digital (GPI) Input #3 High Digital (GPI) Input #4 High...

  • Page 22: Cable For Connection Of A Uio-256 Or A Program Assign Panel

    Operation Cable for Connection of a UIO-256 or a Program Assign Panel FIGURE 8. Using an ADAM CS GPI Output to Operate a Relay (See Table 1 on page 15 for GPI FIGURE 9. Connector Pin-out)

  • Page 23: Using An Adam Gpi Input

    UIO-256 Input/Output Frame GPI Input 5-12 VDC Common EXTERNAL CIRCUIT Using an ADAM GPI Input (See Table 1 on page 15 for GPI FIGURE 10. Connector Pin-out CDP-950 Cable Wiring Diagrams FIGURE 11.

  • Page 24: 50-Pin Telco Cable Wiring Diagram

    Operation 50-Pin Telco Cable Wiring Diagram FIGURE 12.
  • Page 25 UIO-256 Input/Output Frame Switch No. AZedit baud rate select OFF: 9600baud ON: 38.4k baud Keypanel incoming message option OFF: Normal Operation ON: All callers display in Incoming Message window Keypanel “in-use” and “busy” flash OFF: Enable ON: Disable Not Used, set to OFF Used to set Altera version Not Used, set to OFF Primary/Secondary card frame select.

  • Page 26: Addressing

    Operation ADAM CS Intercom Port Numbers (Grouped by Audio Input/Output Card Numbers) Card 1 Card 2 Card 3 Relationship between Audio Input/Output Cards, Intercom Ports, and Logical Keypanel Numbers TABLE 3. Logical Keypanel TABLE 4. Telephone Interface KP-32 Addressing A rotary switch is used to indicate the locgical port address the keypanel is to use when communicating with the Matrix. The switch is read continuously through polling by the Matrix.
  • Page 27 KP-32 Addressing UIO-256 Frame Input/Output Range 1-16 17-32 33-48 49-64 UIO-256 DIP Switch SW1 Setting for Input/Output Range TABLE 5. Relay Output Numbers UIO-256 #1 UIO-256 #2 UIO-256 GPI Outputs Connectors (J5) TABLE 6. a. Dependent on UIO-256 DIP Switch SW1, settings for Input/Output Range as summarized in Table 5 on page 21. b.
  • Page 28 Operation GPI Input Numbers UIO-256 UIO-256 Frame #1 Frame #2 UIO-256 GPI Inputs Connector (J7) TABLE 7. a. Dependent on UIO-256 DIP Switch SW1 Settings for Input/Output Range as summarized in Table 5 on page 21. b. Inputs will sink 100 mA max at a maximum input voltage of +18 VDC. For operation from an external DC voltage source, connect the external control voltage to the “plus”...
  • Page 29 KP-32 Addressing Planning Worksheet for ADAM CS with RJ-11 or DE9 Back Panel TABLE 8. ADAM CS ADAM CS Audio I/O Connector No. Card No. J100 J101 J102 J103 J104 J105 J106 J107 J200 J201 J202 J203 J204 J205 J206 J207 J300 J301...
  • Page 30 Operation Planning Worksheet for ADAM CS with RJ-11 or DE9 Back Panel TABLE 8. ADAM CS ADAM CS Audio I/O Connector No. Card No. J602 J603 J604 J605 J606 J607 J700 J701 J702 J703 J704 J705 J706 J707 J800 J801 J802 J803 J804...
  • Page 31 Planning Worksheet for ADAM CS with 50-pin Telco Back Panel TABLE 9. ADAM CS Audio Audio Audio Input/ Data Input Output Output Card Caonnector Connector Connector Logical Keypanel (+) Pin (-) Pin Part No. Alpha Number Description Alias (Device type, location, user, etc.)
  • Page 32 Planning Worksheet for ADAM CS with 50-pin Telco Back Panel TABLE 9. ADAM CS Audio Audio Audio Input/ Data Input Output Output Card Caonnector Connector Connector a. The Logical Keypanel Number is used to set the address DIP switches when connecting a KP-9X Series Keypanel or TIF. See Table 3 on page 20 for address DIP switch settings. Logical Keypanel (+) Pin...
