Godox TL30 - RGB LED Tube Light Manual

Foreword

Thank you for purchasing this Godox Product!
This RGB Tube Light TL30 is a multifunctional RGB light with dual color temperature, high light brightness and wireless adjustment. Suitable for almost all shooting occasions e.g. live, camping, make up, portrait shooting, make up, video, wedding, children photography, etc. It's portable and easy to be operated.

Features:

• Freely switch LED CCT mode, RGB mode and 37 special effects modes.
• Easy to adjust color temperature, light brightness, hue and color saturation.
• Remote control by smartphone APP.
• Use in combination to make more creative light groups.
• Both ends have magnetic absorption function, can be attached to the plane of iron products.
• Lightweight and portable, it can be held by hand, and the angle can be flexibly changed.

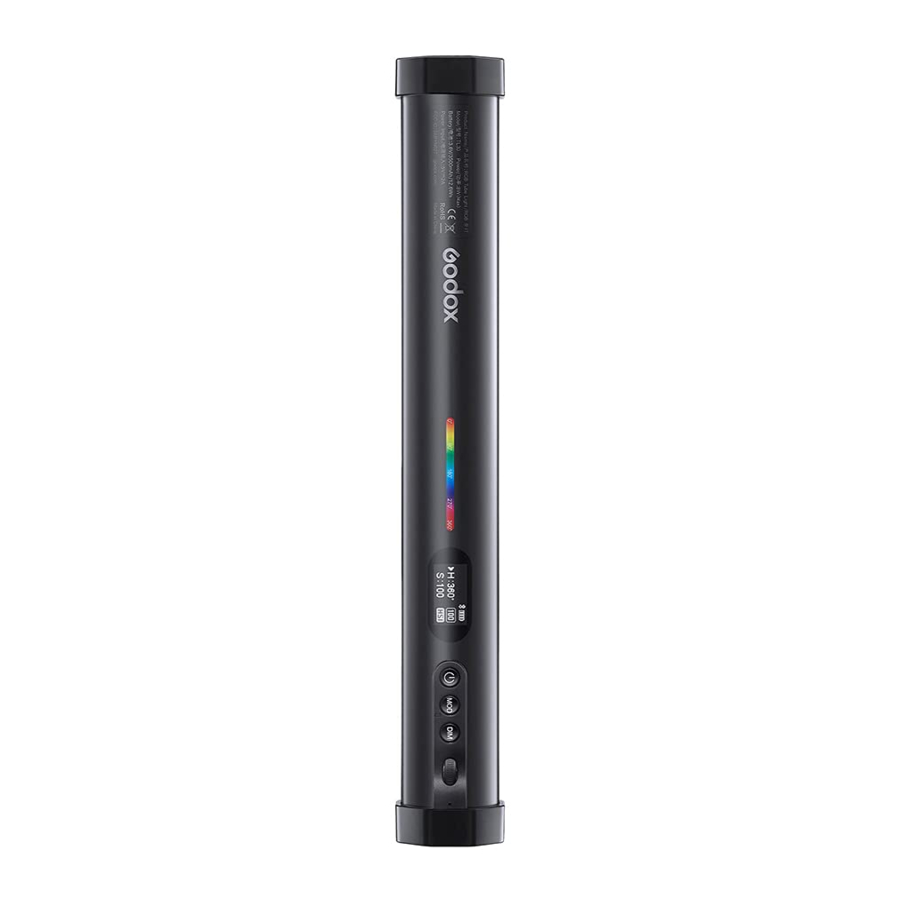

Names of Parts

1. Main Body
2. Power Switch
3. MOD Button
4. DIM Button
5. Select Dial
6. Display
7. Type-C USB Port
8. Screw Hole
9. Magnetic Absorption

What's in the Box

Battery Management

Power Supply

With built-in lithium battery which can offer about 1 hour's lighting in 100% brightness once got fully charged.
The light can also be charged through USB cable.

Charge

The whole charging takes about 1 hour and 30 minutes when using 5V/2A charger (optional). The charge grids indicator will be blinking in charging while displaying full grids once got fully charged.

Operation

Power Switch

Long press the switch power button for 1.5s to turn on or offi. Then, the current information will be displayed on the OLED panel.

Mode Selection: CCT Mode/RGB Mode/ Special Effects Mode

Press MOD button to switch different modes:

CCT displayed on the screen means CCT mode

HSI displayed on the screen means RGB mode

FX means special effects mode

Bicolor Mode

Color temperature adjustment: turn the select dial to adjust the color temperature from 2700K to 6500K.
Adjustment in 500 values quickly or 100 value normally by turning the select dial.
Press DIM button again to confirm, and the parameter stops flashing.

Press the DIM button, then, press DIM button and the brightness value will be blinking. Turn the select dial to adjust the value. Adjustment in 10 values quickly or 1 value normally by turning the select dial.

Hue adjustment: press the MOD button to switch to CCT interface. Press down the select dial to choose G/M and turn the select dial to adjust hue from -50 to 0 and 0 to +50. Adjustment in 5 values quickly or 1 value normally by turning the select dial.

Colorful Mode

Adjust hue H: press the MOD button to switch to HSI interface. Press down the select dial to choose H and turn the select dial to adjust hue. Adjustment in 10 values quickly or 1 value normally by turning the select dial.

Adjust saturation S: in HSI interface, press down the select dial to choose S and turn the select dial to adjust saturation. Adjustment in 10 values quickly or 1 value normally by turning the select dial.

Special Effects Modes (13 categories divided into 37 kinds)

Press the MOD button to switch to FX interface.
Turn the select dial to choose light effects categories from 1 to 13.

After choosing the current mode, press down the FN multifunctional select dial from I, II and III.

There're 37 kinds of situational special effects mode which are divided into 13 categories for your choice.

No.	Display	Situation	Display	Display II	Display III
1		RGB cycle	Slow speed	Medium speed	Quick speed
2		Flash	Flash	Press conference	Paparazzi
3		Laser	Birthday party	KTV	Disco
4		Lightning	Discontinuous	Frequent	Sustainable
5		Broken bulb	Discontinuous	Frequent	Sustainable
6		TV	Slow speed	Medium speed	Quick speed
7		Candle	Discontinuous	Frequent	Sustainable
8		Fire	Firewood	Campfire	Fire hazard
9		Firework	Brief	Continuous	Show
10		Police car	Strong flash	Frequent flash	Quick flash
11		Fire truck	Strong flash	Frequent flash	Quick flash
12		Ambulance	Strong flash	Frequent flash	Quick flash
13		SOS

Bluetooth Control

Bluetooth ON/OFF: long press the MOD button to enter Bluetooth interface.
Turn the select dial to choose the Bluetooth and press down to set it to ON or OFF.

Scan the QR code to download the "Godox Light" smartphone APP(can be used by Android and Apple system). For more smartphone APP operations, please open the "help" in APP to gain detailed guidance.

Bluetooth reset function: in Bluetooth interface, turn the select dial to choose RESET. Then, press down the select dial until the RESET is displayed. The screen will auto back to Bluetooth interface after being successfully reset.

Note: the APP can be used directly o the firstly installed device (smartphone or iPad). When changing to other mobile device, the light shall be reset before the normal usage of APP.

Technical Data

* Product design and specifications are subject to change without notice.

Warning

• Always keep this product dry. Do not use in rain or in damp conditions.
• Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
• Keep out of reach of children.
• As this product do not have waterproof function, please take measures of waterproof in rainy or damp environment.
• Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain circumstance, these materials may be sensitive to the strong light emitting from this flash unit and fire or electromagnetic interference may result.
• As this product has built-in lithium battery, do not disassemble, impact, squeeze or put it into fire. If serious bulge occurs, please do not use. Do not use or store the product if the ambient temperature reads over 40°C.

Tel: +86-755-29609320(8062)
Fax: +86-755-25723423
E-mail: godox@godox.com

godox.com
