Godox CL10 - LED Webcasting Ambient Light Manual

Foreword

Thank you for purchasing this Godox Product!

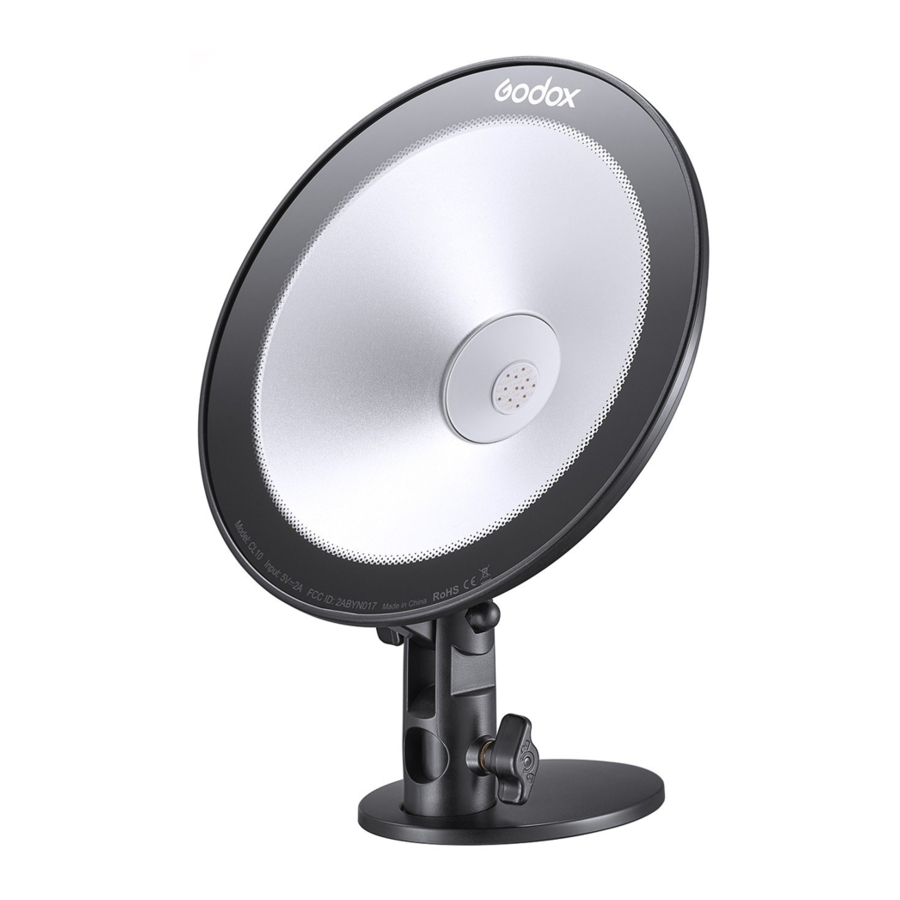

LED Webcasting Ambient Light CL10 is a RGB light with colorful lights e.g. red, green, blue, white, orange, yellow, green, purple, etc. Adjusted brightness, hue and 39 special effects modes(14 categories) by wireless remote control and smartphone APP, CL10 can be served as background light or interior light for studio shooting, livestream and various of creative shooting.

Features:

• Freely switch LED colorful mode and 39 situational special effects modes
• Easy to adjust colors and light brightness by wireless remote control or smartphone APP
• Blink and change colors with the rhythm of music
• Fashionable, compact and versatile

Name of Body

1. Light Body
2. LED Beads
3. Lens of LED Beads
4. Remote Control Receive Port
5. Power Switch
6. Indicator
7. Type-C Port
8. MIC Hole
9. Detachable Holder
10. Fan Inlet
11. Thermovent 1
12. Thermovent 2

What's in the Box

Power Supply

Connect the LED light to power source through Type-C port. Press the power switch to turn on the LED light.

Operation

• Power Switch:
  After connecting to the power source, short press the power switch to power on or off the light.


Wireless Control by Remote Control

As the LED Webcasting Ambient Light processes wireless remote control functions, the brightness values, power on or off, color changes and light effects settings can by controlled by RC-R10 remote control.

: brightness -, brightness +, turn off OFF, turn on ON

: R red, red orange, yellow orange, light orange

: G green, cyan green, yellow green, yellow

: B blue, indigo blue, cyan blue, light blue

: W white, dark cyan, light purple, pink

: purple, magenta, carmine, purple pink

: hue -, hue +, saturation -, saturation +

: RGB recycle, flash, frequency -, frequency +

: laser, lightning, broken bulb, TV

: candle, fire, firework, SOS

: police car, ambulance, fire truck, music mode

1. Press the OFF or ON button on the remote control to achieve the power off or power on function of LED light.
2. Brightness adjustment: press the brightness – or + button on the remote control to adjust the brightness from 0% to 100%. Short press the brightness button once to adjust in 5 values while long pressing the button to achieve quick adjustment from 0% to 100%.
3. Static color lights: The buttons from the second row to the sixth row on remote control are static color lights button. You can also select different colors from 0 to 360° by pressing hue - or hue + button.
4. Hue adjustment: the range of hue is 0 to 360°. Short press the hue - or hue + button to adjust in 10 values while long pressing the button to achieve quick adjustment from 0 to 360°.
5. Saturation adjustment: the range of saturation is 0 to 100%. Short press the saturation - or + button to adjust in 10 values while long pressing the button to achieve quick adjustment from 0% to 100%.
6. There are 39 light effects modes which are divided into 39 kinds. Press the frequency – or + button to adjust after selecting the scene:

No.	Display	Scene	Display I	Display II	Display III
1		Flash	Flash	Press conference	Paparazzi
2		Lightning	Discontinuous	Frequent	Sustainable
3		Broken bulb	Discontinuous	Frequent	Sustainable
4		TV	Slow speed	Medium speed	Quick speed
5		RGB cycle	Slow speed	Medium speed	Quick speed
6		Laser	Birthday party	KTV	Disco
7		Candle	Discontinuous	Frequent	Sustainable
8		Fire	Firewood	Campfire	Fire hazard
9		Firework	Brief	Continuous	Show
10		Police car	Strong flash	Frequent flash	Quick flash
11		Fire truck	Strong flash	Frequent flash	Quick flash
12		Ambulance	Strong flash	Frequent flash	Quick flash
13		Music	Mode 1	Mode 2
14		SOS

Note:

1. When the buttons of brightness +, brightness -, hue -, hue +, saturation - and saturation + have hit the bottom, the blue indicator will blink for 3 times.
2. The remote control should aim at the infrared receive window whose angular deviation in left and right are no more than 15° and distance no more than 15m.

Bluetooth Wireless Control

1. Scan the QR code to download the "Godox Light" smartphone APP (can be used on Android and Apple system).
2. After connecting to power supply, open the APP on smartphone to match or create studio.

For more smartphone APP operations, please open the "help" in APP to gain detailed guidance.

Technical Data

* Product design and specifications are subject to change without notice.

Maintenance

This product, except consumables e.g. charger and charger cable, is supported with a one-year warranty.
Avoid sudden impacts and the product should be dedusted regularly. Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories.
Unauthorized service will void the warranty.
If the product had failures or was wetted, do not use it until it is repaired by professionals.
Changes made to the specifications or designs may not be reflected in this manual.

Warning

• Always keep this product dry. Do not use in rain or in damp conditions.
• Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
• Keep out of reach of children.
• As this product do not have waterproof function, please take measures of waterproof in rainy or damp environment.
• As this product may heat up in working, please do not touch.
