Godox LEDM150 - LED Video Light Manual

Foreword

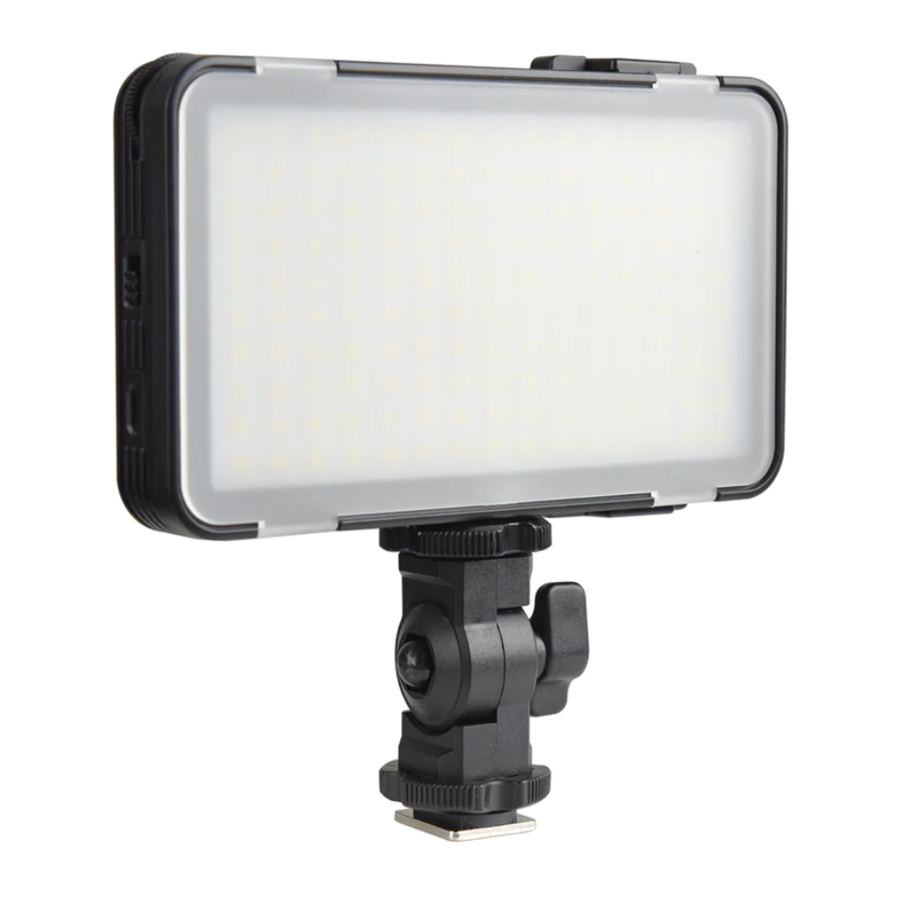

LEDM150 Mini video light is excellent for macrophotography, wedding shooting, product shooting, photojournalistic and video recording, etc. The lightweight and portable light provides high brightness and convenient operation.

Features:

• High-quality LED bulbs
• Built-in lithium battery with great portability
• Soft light and even illumination
• Included with a L-type bracket
• Fits almost any cameras, camcorders and mobile phones

Parts

• Body


Power Management

1. Power Supply
   Built-in large capacity lithium battery 3.7V/3000mAh.

   • LEDM150 is able to provide the maximum brightness continously up to 60 minutes when fully charged.
     Note: The indicator light is to display the battery level, when the light is blinking, please charge in time.
2. Charging the Battery
   • Insert the mobile phone charger to the USB Port, after 4 hours, the light can be fully charged (with 5V1A charger).
     The Status Indicator Lamp lights up when charging and turn off when the battery is fully charged.


Using the Video Light

1. By the Handle

   • Install the L-type Bracket onto the 1/4" Bracket Mounting Hole.
   • tighten the upper locking ring of the L-type Bracket.
2. On the Light Stand

   • Install the L-type Bracket onto the 1/4" Bracket Mounting Hole and tighten the upper locking ring of the L-type Bracket.
   • Install the light stand onto the 1/4" Bracket Mounting Hole.
3. On the Mobile Phone

   • Push into and lock the Mounting Bracket from the right direction of the light, pull out from the opposite direction of pushing in.
   • Install the Mobile Phone onto the Mounting Bracket.

Operation

1. Before Usage
   • Switch the power on, the video light giving out light.

2. Light Brightness Adjustment
   • Turn the Select Dial for Light Brightness to adjust the light brightness.
   • Light Brightness Range: 10%-100%


What's in the Box of LEDM150?

Technical Data

* Product design and specifications are subject to change without notice.

Warning

Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures of waterproof in rainy or damp environment.
Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain circumstance, these materials may be sensitive to the strong light emitting from this flash unit and fire or electromagnetic interference may result.
As this product has built-in lithium battery, do not disassemble, impact, squeeze or put it into fire. If serious bulge occurs, please do not use. Do not use or store the product if the ambient temperature reads over 50°C. Please charge the product with specialized charger and correctly operate it within the defined voltage and working temperate according to the instruction manual.
