Godox SZ200Bi - Zoom Bi-color LED Video Light Manual

Foreword

Thank you for purchasing this Godox Product!
This Zoom Bi-color LED Video Light SZ200Bi is a continuous light with multiple functions. Suitable for almost all shooting occasions e.g. live, camping, portrait shooting, make up, video, wedding, children photography, etc. It's portable and easy to be operated.

Features:

• Freely switch LED bicolor mode and 22 situational special effects modes
• Easy to adjust color temperature, light brightness
• Combined control by smartphone APP/2.4G wireless/DMX control
• Without noise and interference in silent mode
• Offer strong light in light burst mode
• With a colored display to clearly show the parameters
• Excellent heat dissipation system

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.

Keep out of reach of children.

As this product do not have waterproof function, please take measures of waterproof in rainy or damp environment.

As this product may heat up in working, please do not touch.

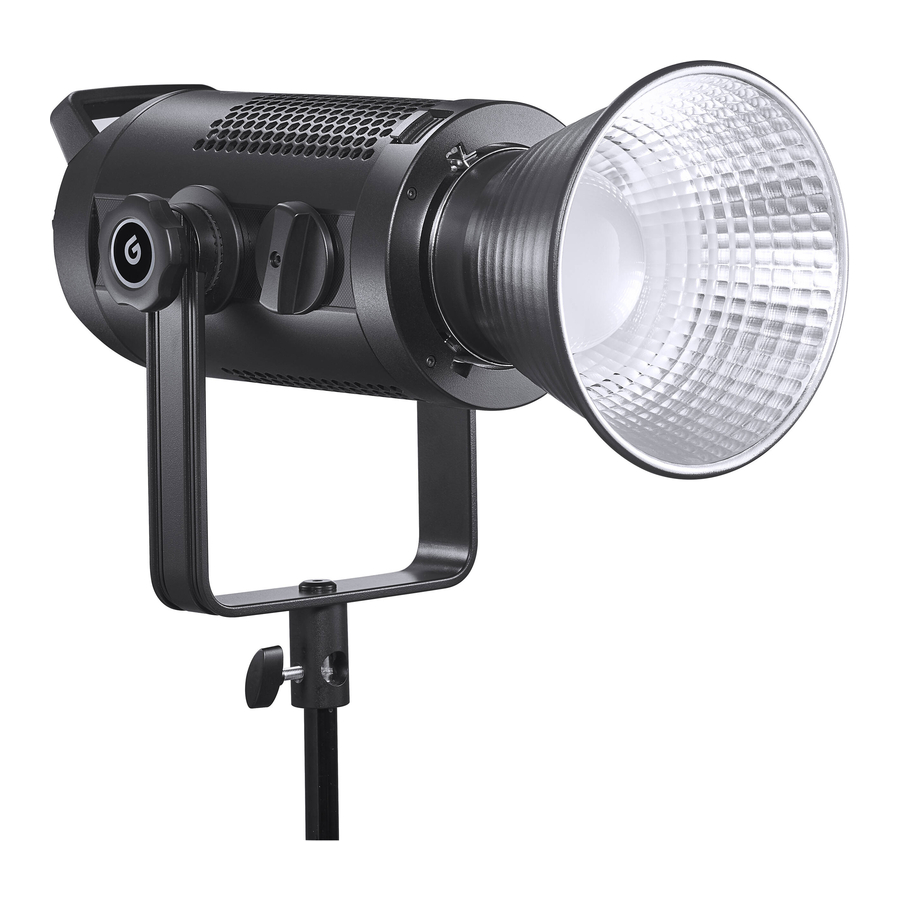

Name of Body

1. Body
2. LED Beads
3. Protect Cover
4. Bowens-mount
5. Accessory Locking Ring
6. Bracket Screw
7. U-type Bracket
8. Zooming knob
9. Thermovent 1
10. Thermovent 2
11. Handle
12. Power Socket
13. Power Switch
14. Menu Button
15. FX Button
16. DMX Button
17. Fan Button
18. CCT/FN Adjusting Button
19. DIM Adjusting Button
20. USB Upgrade Port
21. RJ45 Port x2

LCD Panel

Menu Interface

1. CH Chanel
2. GR Group
3. 2.4G Wireless ID
4. Bluetooth Reset Function
5. V0.3 (version number)
6. MAC(Bluetooth number)

FX Interface

1. FX Special Effects Display from 1 to 8


CCT Interface

1. CCT Function Display from 2800K to 6500K


DMX Interface

1. DMX Channel Display (OFF/1 to 512)


Included Items

Optional Accessory

The product can be used in combination with the following optional accessories so as to achieve best photography effects:
RC-A6 Remote control, inverter, softbox, umbrella, light stand, honey comb, beauty dish, snoot, etc.

Power Supply

Connect the LED light to power source with adapter and power cable. Press the power switch to turn on the LED light.

Operation

• Menu Button
  Press the MENU button and the LED light will enter menu interface. In this interface, CH channel (1 to 32), GR group (A/B/C/D/E/F,O-9), ID (OFF/OI to 99), Bluetooth function (RESET), etc.

• FX Button
  Turn the CCT/FN select dial to choose the special effect modes from 1 to 8 categories. After choosing the current mode, short press the CCT/FN select dial to switch the modes from I, II and III.

  22 different special effects which are divided into 8 categories according to your demands.

No.	Display	Situation	Display I	Display II	Display III
1		Flash	Flash	Press conference	Paparazzi
2		Lightning	Discontinuous	Frequent	Sustainable
3		Broken bulb	Discontinuous	Frequent	Sustainable
4		TV	Slow speed	Medium speed	Quick speed
5		Candle	Discontinuous	Frequent	Sustainable
6		Fire	Firewood	Campfire	Fire hazard
7		Firework	Brief	Continuous	Show
8		SOS

• DMX Button
  Short press the DMX button to enter the setting interface. Choose DMX channels from OFF, 001 to 512. By connecting to the control center through RJ45 port. The parameters of LED light can be controlled by the control center.
• Color temperature
  The LED light will auto enter color temperature adjustment interface. Turn the CCT/FX button to choose color temperature from 2800K to 6500K.
• Brightness adjustment
  In FX or CCT interface, turn the DIM select dial to adjust brightness from 0% to 100%. Press the DIM select dial once to turn off the brightness and press it again ton recover the brightness set before.
  Note: when the LED light is powered on, press the DIM select dial once can turn on or off the brightness quickly in any interface.
• Fan Button
  Short press the fan button to control the on/off of the fan.
  1. When the fan is off, the LED light will enter silent mode. There is no noise and interference in this mode and the brightness can be adjusted from 0% to 35%.
  2. When the fan is on, the LED light can be set to strong light mode. The LED light's power will up to the maximum in this mode.

• Zooming Knob
  By adjusting this knob, the beam angle can be changed from 20 ° to 65 ° .

• USB Upgrade Port
  1. Download the new firmware into U disk from official website http://www.godox.com.cn/Downloads.html.
  2. Turn off the LED light. Insert the U disk with new firmware into the USB upgrade port.
  3. Turn on the LED light, and it will automatically enter the upgrading interface.
  4. The LED light will automatically back to the main interface.

     Note:
     1. The newest firmware must be the official website and stored in the root directory of U disk. And there can only be one BIN document.
     2. The USB port can only support firmware upgrade function.

Control Mode Selection

1. DMX Control Setting
   In NENU interface, choose DMX options to set DMX channels (OFF/001~512). Connect the LED light to DMX control panel by RJ45 port. Set them to the same channel, the LED lights can be controlled by control panel.
   Set them to the same channel, the LED lights can be controlled by control panel.


2. 2.4G Wireless Control
   With 2.4G wireless system, SZ series LED video light has remote grouping and control function. It is recommended to purchase RC-A6 remote control(optional) to achieve wireless control. Up to 16 groups of LED lights can be controlled, 32 channels and 99 IDs are available with strong anti-interference capability.
   Note:
   1. Please make LED light's channel(CH), group(GR) and ID to the same as remote control's.
   2. The wireless signals can only be received in the situation that the LED light is powered on.
      Press the MENU button to enter MENU interface and turn the CCT/FN select dial:

      Select CH and turn the DIM select dial to CH32 GR A MENU choose channels from 1 to 32.
      Select ID and turn the DIM select dial to
      Select GR and turn the DIM select dial to choose groups from A to E and 0 to 9.

3. Bluetooth Control
   1. Bluetooth reset function: in MENU interface, turn the CCT/FN select dial to choose RESET. Then, short press CCT/FN select dial to reset.
      Note: the APP can be used directly on the firstly installed device (smartphone or iPad). When change to other mobile device(smartphone or iPad), the light shall be reset before the normal connection of APP.

   2. Scan the QR code to download the "Godox Light" smartphone APP(can be used by Android and Apple system). For more smartphone APP operations, please open the "help" in APP to gain detailed guidance.


Technical Data

* Product design and specifications are subject to change without notice.

Maintenance

This product, except consumables e.g. adapter and adapter cable, is supported with a one-year warranty.
Avoid sudden impacts and the product should be dedusted regularly.
Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories.
Unauthorized service will void the warranty.
If the product had failures or was wetted, do not use it until it is repaired by professionals.
Changes made to the specifications or designs may not be reflected in this manual.
