深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong
深圳市神牛摄影器材有限公司
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-29609320(8062)
传真/Fax: +86-755-25723423
邮箱/E-mail: godox@godox.com
LED Video Light
Instruction Manual | 说明手册
705-LE5000-00
Chinese English Bilingual | 中英文双语
型号: LED500
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Godox LED500W
Summary of Contents for Godox LED500W

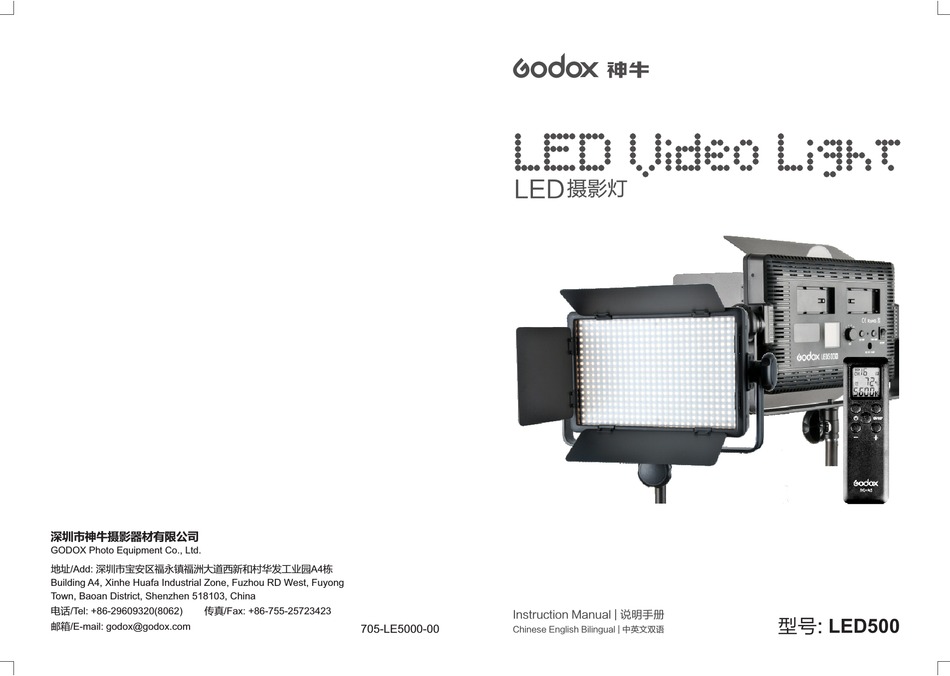

- Page 1 LED Video Light 深圳市神牛摄影器材有限公司 GODOX Photo Equipment Co., Ltd. 地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋 Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong 深圳市神牛摄影器材有限公司 Town, Baoan District, Shenzhen 518103, China 电话/Tel: +86-29609320(8062) 传真/Fax: +86-755-25723423 Instruction Manual | 说明手册 型号: LED500 邮箱/E-mail: godox@godox.com 705-LE5000-00 Chinese English Bilingual | 中英文双语...

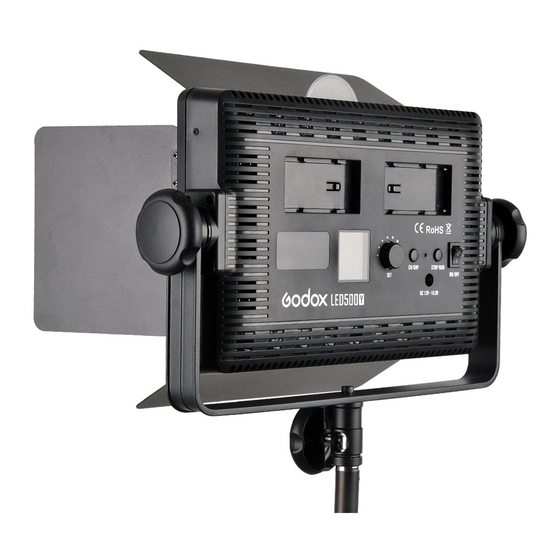

- Page 2 This LED500 video light provides a wide spectrum, beautifully soft and even illumination for video and still photography. The four reflective barndoors can maximize the light efficiency. Three models are available: LED500W White Version (5600K), LED500Y LED Video Light Yellow Version (3300K), and LED500C Changeable Version (3300K~5600K). Equipped with a remote control, this light can wirelessly adjust its brightness and color temperature.
- Page 3 Parts Remote Control: 01. LCD Panel (Black in 05. "-" Button White) 06. "+" Button 02. Power Switch 07. Battery Compartment 03. CH/GRP Button 08. Battery Compartment 04. SET Button Cover Wireless Signal Power Management 1. Power Supply Two power supply modes are available: LCD Panel Battery Controllable...
- Page 4 3300K~5600K ● Screw the Knob C (14) to the highest point and install the light stand onto the NOTE:Color temperature of LED500W or LED500Y is invariable. Bracket Mounting Hole (16). The LCD panel only shows 5600K or 3300K. ● Tighten the Knob C (14).
- Page 5 1 PCS Tips of Using Remote Control: Remote Control 1 PCS 1 PCS 1 PCS (1)When using the White Version LED500W, please set the color temperature of Power Adapter 1 PCS 1 PCS 1 PCS the remote control as 5600K constantly;...
-
Page 6: Technical Data
Technical Data LED500 White Version Yellow Version Changeable Version Video Light LED500W LED500Y LED500C Lithium Battery SONY: NP-F970*2(lithium battery) (sold separately) DC Power Supply 13~16.8V Channel Group 6 groups(A,B,C,D,E,F) Power Max. 32W Color Temperature 5600K±300K 3300K±300K 3300K~5600K ±300K Brightness(LUX) 2900 (1m)
