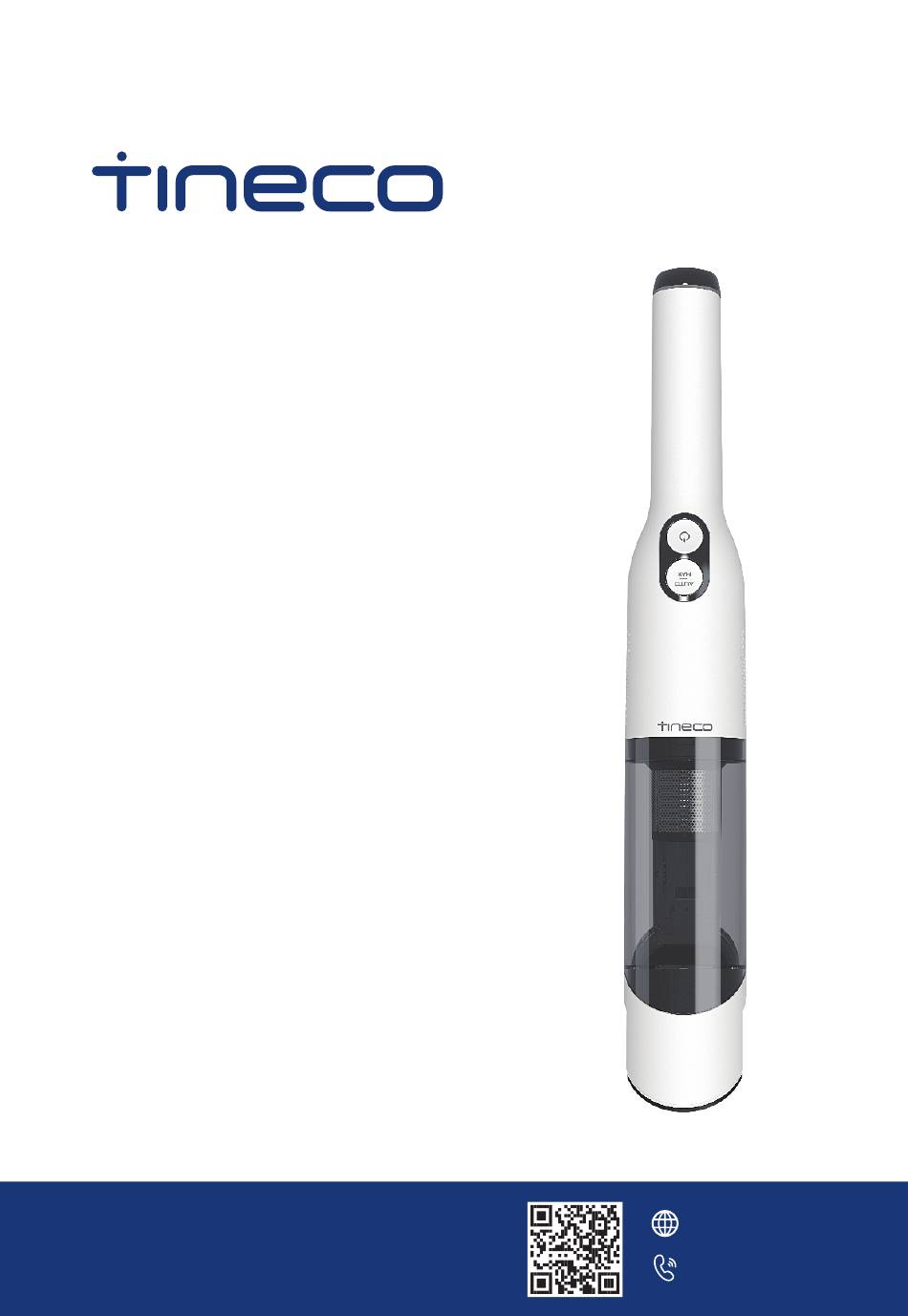

- Page 1 PURE ONE MINI S4 Smart Cordless Hand Vac Instruction Manual Manual De Uso Mode D’emploi *Actual product may differ from illustration. TINECO IS HERE TO HELP. www.tineco.com 1-855-292-8864 We’ll get back to you within 1 business day. Mon. - Fri. 9am - 6pm (CST)
-
Page 2: Table Of Contents
Assembly ..................7 Operation ..................8 Maintenance .................. 11 Specifications ................. 13 Troubleshooting ................14 Warranty ..................15 TINECO IS HERE TO HELP. www.tineco.com 1-855-292-8864 We’ll get back to you within 1 business day. Mon. - Fri. 9am - 6pm (CST) -
Page 3: Important Safety Instructions
Important Safety Instructions SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 4 17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
- Page 5 24. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. 25. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
-
Page 6: Overview

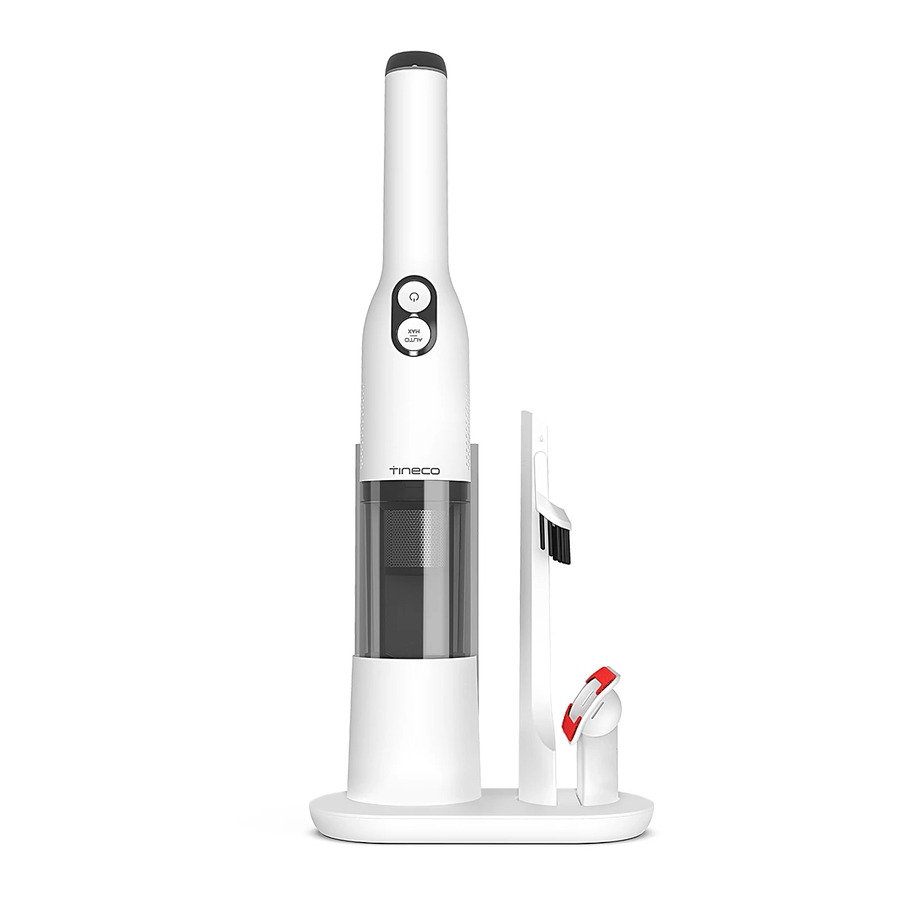

Overview A. Power switch D. Dustbin release button B. AUTO/MAX button E. Dustbin lock C. LED loop F. Dustbin lid... -
Page 7: Accessories
Accessories Note: • Test an accessory on a small, inconspicuous area before use on sensitive surfaces. • Accessories included can be attached directly to the appliance. Crevice tool Crevice brush is suitable for dusting screens, delicate surfaces, keyboard and more. Flip down to expose a flat nozzle for cleaning corners and hard-to-reach areas. -
Page 8: Assembly
1. Determine the best wall location for mounting the dock. We recommend leaving 2.2” (56mm) between the two screw holes. 2. Use the screws provided by Tineco to affix the dock to the wall. Warning: 1. Ensure the wall surrounding the mounting area is free of gas, water pipes, electrical cables and wires. -
Page 9: Operation
Operation Preparing for Use Note: • Before the first use, please charge the appliance (see “Charging the Battery”) for 3-4 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C). AUTO ① ② ③ 1. Press the power switch to turn on the appliance, and press it again to turn off. - Page 10 Warning: • Only use the Tineco-provided adaptor to charge the appliance. • During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
- Page 11 • Estimated runtime data was obtained by a Tineco Laboratory. Charging Time • A full charge takes approximately 3-4 hours. • Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C). Indicator When in Use Solid blue light.
-
Page 12: Maintenance
Maintenance Note: • Turn power switch off and disconnect plug from electrical outlet before performing maintenance. • For optimal performance, wash and dry the mesh filter and HEPA bi-weekly, replacing both parts every 6 months. Dustbin ① ② ③ 1. With the power off, open the lock and slide the dustbin forward to open and empty contents. - Page 13 Mesh Filter & HEPA Filter With the dustbin uninstalled, turn counter- clockwise to remove the mesh filter. Remove HEPA from the mesh filter, clean with the hair cleaning tool. Or wash both parts with water and air dry completely if necessary (recommended every two weeks).
-
Page 14: Specifications
Specifications Product PURE ONE MINI S4 Voltage 10.8V Rated Power Dustbin Capacity 0.2L Battery 2000mAh AC Input 100-240V~ 0.5A MAX DC Output 14.4V 0.7A Disposal • The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded. -
Page 15: Troubleshooting
The adaptor is not Reinsert the adaptor correctly inserted correctly LED loop is The suction mouth is Check and remove blinking red blocked blockages Note: If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support. -
Page 16: Warranty
• This warranty will only be valid if the appliance is used in the country in which it was sold. WHAT IS NOT COVERED? Tineco shall not be liable for costs, damages or repairs incurred as a result of: • Appliances purchased from an unauthorized dealer. - Page 17 Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it. All work will be carried out by Tineco or an authorized agent. Any replaced defective parts will become the property of Tineco.
- Page 18 Contact us - We’ll get back to you within 1 business day. www.tineco.com Comuníquese con nosotros, lo contactaremos dentro de 1 día hábil. 1-855-292-8864 Contactez-nous – Nous vous répondrons dans un délai d’un jour ouvrable. Mon. - Fri. 9am - 6pm (CST)
