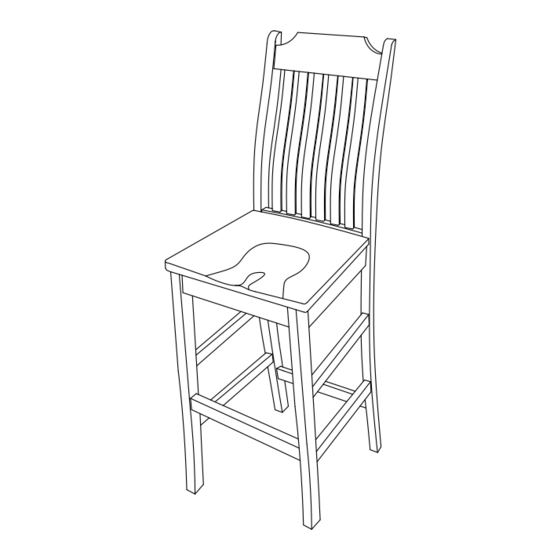

- Page 1 ASSEMBLY INSTRUCTIONS Description : 30 IN STEAMBENT MISSION STOOL Item No. : S-343 ITEM NO. : S-343 Printed in Vietnam ISSUED MAY 16, 2016 - 1 -...
-
Page 2: Before Assembly
Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO. : S-343 Printed in Vietnam ISSUED MAY 16, 2016 - 2 -... -
Page 3: Part List
Long bolt Wood Screw (M6 x 80mm) (M4 x 35mm) Flat washer Lock washer (6.5 x 19mm) (6.5 x 11mm) Allen key (M4 x 30mm x 120mm) ITEM NO. : S-343 Printed in Vietnam ISSUED MAY 16, 2016 - 3 -... - Page 4 Attach front stretchers (G) to front legs (D) with screws (4), then attach side stretchers (E) and (F) to front legs (D) and legs of the back (A) with screws (4) as shown below. Tighten with a screwdriver. ITEM NO. : S-343 Printed in Vietnam...
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (4) as shown below. Tighten with a screwdriver. ITEM NO. : S-343 Printed in Vietnam ISSUED MAY 16, 2016 - 5 -...
