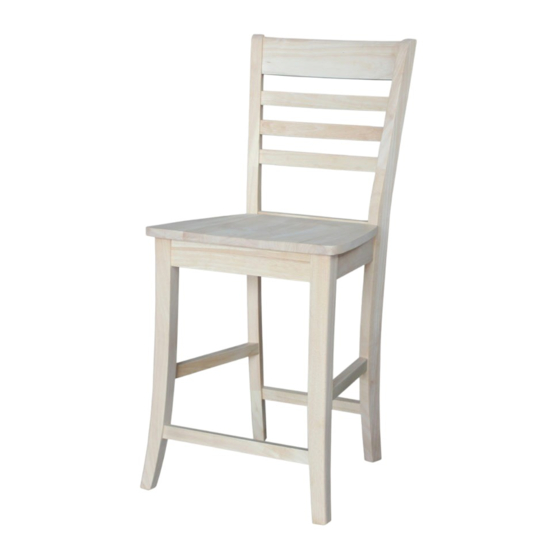

- Page 1 ASSEMBLY INSTRUCTIONS : ROMA STOOL W/WOOD SEAT Description : S-3102 Item No. ITEM NO.: S-3102 Printed in Vietnam REVISED JUL 23, 2013 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. If a part is missing or defective, please contact the store where purchased.
- Page 3 HARDWARE LIST When unpacking, please carefully not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Short bolt Medium bolt ( M6 x 40mm) (M6 x 60mm) Long bolt Wood Screw (M6 x 80mm)
- Page 4 STEP 2 Attach front legs (D) to the seat frame (B) with bolts (2), and washers (5) and (6). Tighten with Allen key (7). Place side stretchers (E) and (F) between front and back legs. Attach stretchers with the screws (4) as shown below.
