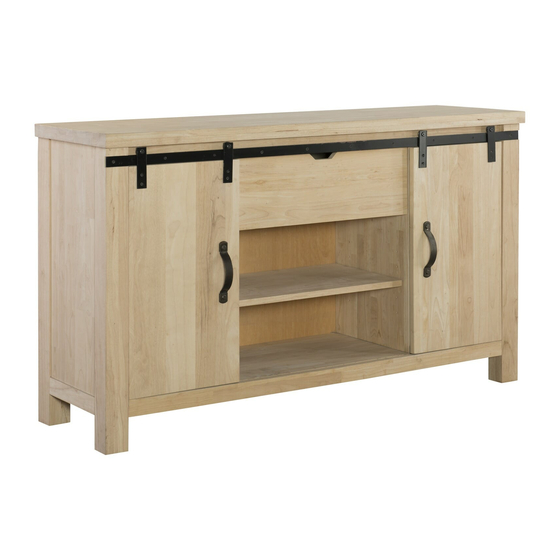

- Page 1 ASSEMBLY INSTRUCTIONS : BARN DOOR SERVER Description : SV-38A AND SV-38B Item No. ITEM NO.: SV-38 AND SV-38B Printed in Vietnam ISSUED DEC 20, 2017 THIS ITEM IS PACKED IN TWO CARTONS - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. - Page 3 PART LIST SV-38A When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Bottom panel Side Shelf Center Shelf (L-R) Drawer side Drawer front...
- Page 4 PART LIST SV-38B When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Vertical panel Side panel (L-R) (L-R) Center Back Side Back panel panel Door (L-R) ITEM NO.: SV-38 AND SV-38B...
-
Page 5: Hardware List
HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Bolt Lock Washer (M6 x 35mm) (‡6.5 x 11mm) Flat Washer Screw (‡6.5 x 19mm) - Page 6 STEP 1 Attach vertical panels (J) to top (A) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (13). STEP 2 Attach bottom panel (B) to vertical panels (J) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (13).
- Page 7 STEP 3 Attach side panels (K) to bottom panel (B) and top (A) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (13). Attach the steel rail of top (A) to side panels (K) with screws (4) as shown below. Tighten with a screwdriver.
- Page 8 STEP 5 Attach drawer sides (F) to drawer front (E) with screws (6) as shown below. Tighten with a screwdriver. Insert drawer bottom (H) into the grooves at bottom of drawer sides (F) and drawer front (E) as shown below. Attach drawer back (G) to drawer sides (F) with screws (6) as shown below.
- Page 9 STEP 7 Attach door rollers (8) to doors (N) with screws (4) as shown below. Tighten with a screwdriver. Attach handles (9) to doors (N) with screws (11) and washers (10) as shown below. Tighten with wrench (14). STEP 8 Attach steel bands (12) to the unit with screws (5) and attach the steel bands to the wall with screws (6) as shown below (to secure the product and prevent tipping).
