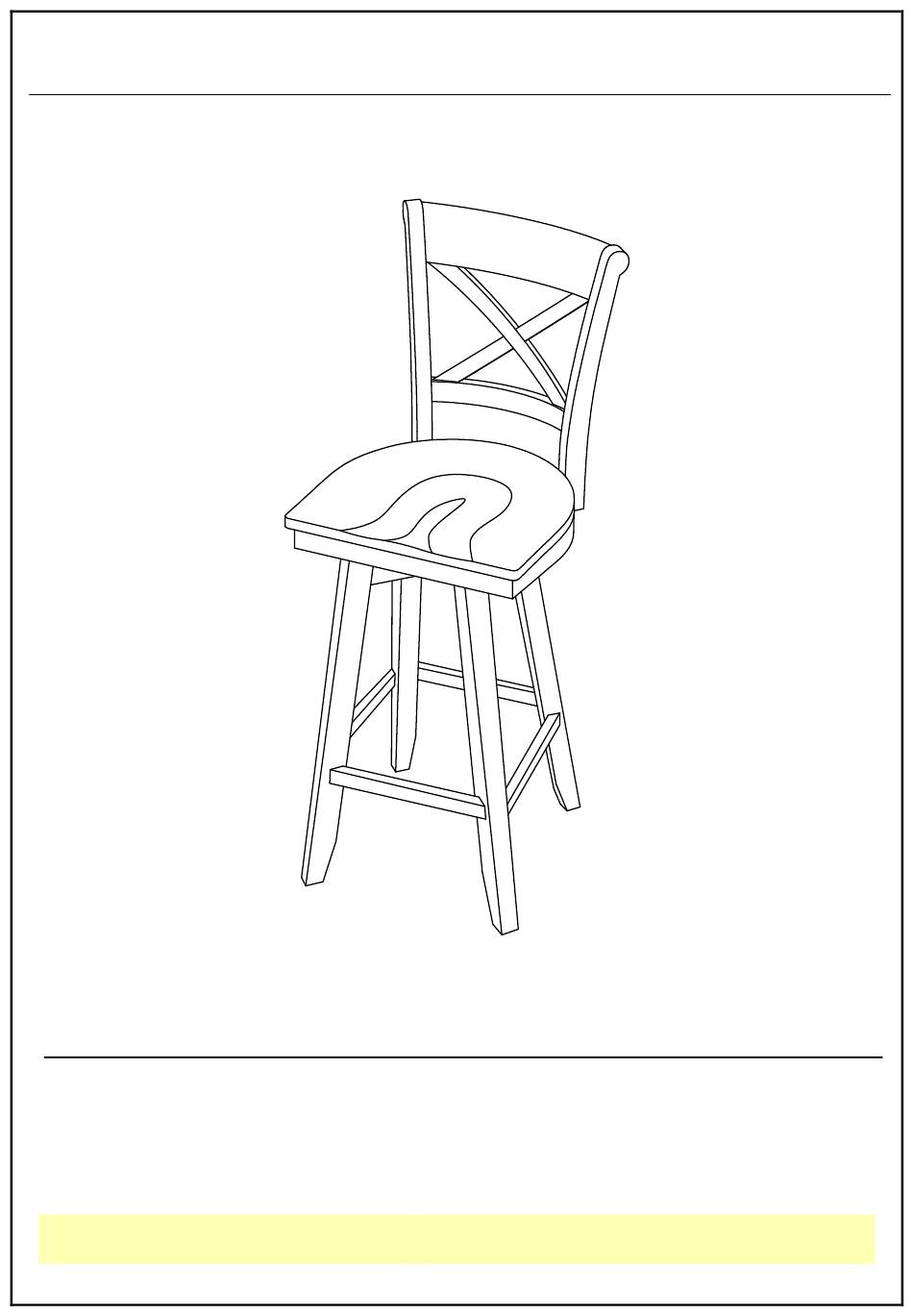

- Page 1 ASSEMBLY INSTRUCTIONS : 30 IN CHARLOTTE SWIVEL STOOL Description : S-313SW Item No. ITEM NO.: S-313SW Printed in Vietnam ISSUED NOV 15, 2017 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Chair back Seat Frame Stretcher Chair Seat HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch...
- Page 4 STEP 1 Attach seat frame (B) to the back (A) with bolts (2), and washers (3) and (4) as shown below. Tighten with Allen key (7). Note: DO NOT tighten any of the bolts, until the stool is assembled, then put on a flat level surface to make sure the stool is level and then tighten the bolts.
- Page 5 STEP 3 Attach the swivel plate underneath the seat frame (B) to legs (C) and (D) with bolts (1), and washers (3) and (4), as shown below. Tighten with Allen key (7). STEP 4 Attach the seat (F) to top of the seat frame (B) with screws (6). Tighten with a screwdriver. ITEM NO.: S-313SW Printed in Vietnam ISSUED NOV 15, 2017...
