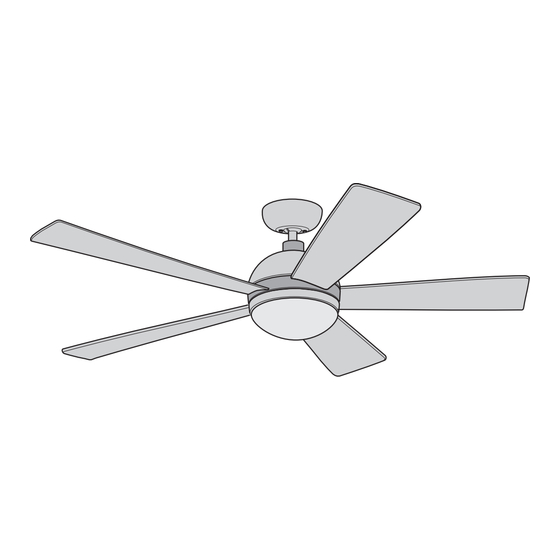

CEILING FAN
52" Ceiling Fan Owner's Manual
BBCF235

Advertisement

Table of Contents
loading

Related Manuals for Parrot Uncle BBCF235

Summary of Contents for Parrot Uncle BBCF235

  • Page 1 CEILING FAN 52” Ceiling Fan Owner’s Manual BBCF235...

  • Page 2: Table Of Contents

    Table of Contents Section Page ection Page Safety Instructions ....... 2 6.

  • Page 3: Unpacking Instructions

    Hanger Ball / 4.5” Downrod Assembly designated specifically with this product Receiver and Hardware by Parrot Uncle. Remote Control Transmitter, with Wall Bracket and Hardware Fan Blades Open Carton containing the Fan. Remove top half of styrofoam unit. Remove Parts and check to see that...

  • Page 4: Electrical Requirements

    1. Unpacking Instructions (Continued) This Manual Is Designed to Make it as Easy as Possible for You to Assemble, Install, Operate and Maintain Your Ceiling Fan Tools Needed for Assembly WARNING One Phillips Head Screwdriver One Stepladder Before assembling your ceiling fan, refer to section One 1/4”...

  • Page 5: Ceiling Fan Assembly

    3. Ceiling Fan Assembly Slide a Blade through the Fan Motor Assembly Center #8-32 x 11mm WASHER HEAD SCREWS Blade Slot. (3 per blade) Mount the Blade to Fan Motor Assembly using Three FAN BLADE #8-32 x 11mm Washer Head Screws (supplied) (Figure 1).
  • Page 6 3. Ceiling Fan Assembly (Continued) LOWER HOUSING Position the Lower Housing onto the Fan Motor Assembly by rotating the Lower Housing Clockwise to engage the Two loosened #6-32 x 3/8” Pan Head Screws with Lockwashers in the Two Key Slots (Figure 3).
  • Page 7 3. Ceiling Fan Assembly (Continued) Carefully turn the partially assembled Ceiling Fan right side up and place the Fan securely into the packing styrofoam. Remove the Hanger Ball by loosening the Phillips Head Set Screw in the Hanger Ball until the Ball falls freely down the 4.5”...
  • Page 8 3. Ceiling Fan Assembly (Continued) DOWNROD Loosen the Two Phillips Head Set Screws in the Motor Coupler for installation of the 4.5” Downrod (Figure 7). Seat the 4.5” Downrod in the Motor Coupler (Figure 7). MOTOR Rotate and align the 4.5” Downrod holes with the Two COUPLER LOOSEN SET Holes in the Motor Coupler (Figure 7).
  • Page 9 3. Ceiling Fan Assembly (Continued) While pulling up on the 4.5” Downrod, retighten the Two Phillips Head Set Screws to secure the 4.5” Downrod in the Motor Coupler (Figure 9). MOTOR NOTE: The Set Screws must be properly installed COUPLER as described above, or fan wobble could result.
  • Page 10 3. Ceiling Fan Assembly (Continued) 3.12 HANGER BALL Route the three Motor Wires through the Hanger Ball (Figure 12). 4.5" Reinstall the Hanger Ball on the 4.5” Downrod as DOWNROD follows: SET SCREW Position the Pin through the Two Holes in the 4.5” Downrod and align the Hanger Ball so the Pin is captured in the Groove in the top of the Hanger Ball (Figure 12).

  • Page 11: How To Hang Your Ceiling Fan

    CAUTION CEILING To reduce the risk of injury, install the fan so that the blades are at least 7 ft. (2.1m) above the floor (Figure 14). WARNING Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
  • Page 12 Securely attach the Hanger Bracket to the Outlet Box using the Two Screws supplied with the Outlet Box (Figure 16). OUTLET TWO SCREWS SUPPLIED WITH HANGER OUTLET BOX BRACKET ANTI-ROTATION TAB Figure 16 Carefully lift the Fan and seat the Hanger Ball/ Downrod Assembly on the Hanger Bracket that was just attached to the Outlet Box (Figure 17).

  • Page 13: How To Wire Your Ceiling Fan

    5. How to Wire Your Ceiling Fan If you feel that you do not have enough electrical wiring knowledge or experience, have your fan CAUTION: To reduce the risk of electrical shock, installed by a licensed electrician. disconnect the electrical supply circuit before installing the fan, light kit or receiver.
  • Page 14 5. How to Wire Your Ceiling Fan (Continued) NOTE: Make all wiring connections using the wire connectors supplied in the hardware kit and receiver parts bag. Make sure that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the supply circuit ground wire.
  • Page 15 5. How to Wire Your Ceiling Fan (Continued) Securely connect the Receiver Black Wire (AC IN L) to the Supply Black Wire (hot) using the 12 ga. Wire Connector (supplied in parts bag) (Figure 21). 18 ga. WIRE CONNECTOR FAN AND RECEIVER WHITE WIRES Figure 21...
  • Page 16 5. How to Wire Your Ceiling Fan (Continued) Securely connect the Receiver Black Wire (TO MOTOR L) to the Fan Motor Black Wire using the 18 ga. Wire Connector (supplied with the receiver) (Figure 23). SUPPLY AND RECEIVER BLACK WIRES 18 ga.
  • Page 17 5. How to Wire Your Ceiling Fan (Continued) While inserting the Receiver fully into the Hanger WIRE CONNECTORS Bracket, turn Wires upward and carefully push Wires (Tucked Inside into the Outlet Box, with the White and Green Wires Outlet Box) on one side of the Outlet Box and position the Black and Blue Wires on the other side of the Outlet Box (Figure 25).

  • Page 18: Final Assembly

    Lift the Ceiling Cover up to the Threaded Studs and turn until Studs protrude through the holes in the Ceiling Cover (Figure 28). Secure the Ceiling Cover in place by sliding Lockwashers over the Threaded Studs and installing the two Knurled Knobs (supplied). (Figure 28). Tighten the Knurled Knobs securely until the Ceiling Cover fits snugly against the ceiling and the hole in the Ceiling Cover is clear of the Downrod.
  • Page 19 The two Connectors are Keyed and Color-Coded and must be mated correctly (color-to-color) before they can be engaged (L to L and A to A), as follows: Engage the Fan Motor Assembly Color-Coded Connector to the LED Light Fixture Assembly Color- Coded Connector (Figure 29).

  • Page 20: Remote Control Procedures

    Place the Shade into the opening in the Lower Housing, REVERSE SWITCH aligning the Three Flat Areas on the top edge of the Shade with the Lower Housing Three Raised Dimples and turn the Shade Clockwise until it stops (Figure 31). NOTE: Periodically check that the Shade is seated fully clockwise in the Lower Housing.
  • Page 21 7. Remote Control Procedures (Continued) 7.2: Installation of Batteries The Remote Control Transmitter is powered by two AAA Alkaline Batteries. To prevent possible battery leakage damage, be sure to remove the Batteries when the Control is not to be used for an extended period of time. Remove the Battery Cover by pressing firmly below the arrow and sliding the Cover off the Remote Control.
  • Page 22 FOR FANS WITH PULL CHAINS: For your Fan/Light POWER INDICATOR Control to operate properly, the Fan Pull Chain Switch LIGHT must be set to operate the Fan at HIGH Speed, and FAN OFF the Light Kit must be switched to ON position. To avoid BUTTON accidental Pull Chain use, shorten Chains.
  • Page 23 POWER INDICATOR The Light Push Button ( ) turns the Light ON and LIGHT OFF and controls the Light Intensity (Figure 36). To vary the Intensity of the Light, hold the Light Button ) down until the desired Light Intensity is reached, then release the Button (Figure 36).

  • Page 24: Reverse Switch Operation

    8. Reverse Switch Operation Turn the Shade Counter-Clockwise and remove it from the Lower Housing (Figure 39). REVERSE SWITCH Retain the Shade for reassembly in Step 8.3. LOWER HOUSING SHADE COUNTER-CLOCKWISE Figure 39...
  • Page 25 8. Reverse Switch Operation (Continued) Slide the Reverse Switch (located on the side of the LED Light Fixture Assembly) to the opposite position, REVERSE SWITCH and turn the Ceiling Fan ON again (Figure 40). The Fan Blades will turn in the opposite direction and reverse the airflow.

  • Page 26: Energy Efficient Use Of Ceiling Fan

    9. Energy Efficient Use of Ceiling Fans Using the Ceiling Fan Year Round. In the summer, Ceiling Fan performance and energy savings rely heavily on the proper installation and use of the use the Ceiling Fan in the counter-clockwise direction. Ceiling Fan.

  • Page 27: Troubleshooting

    11. Troubleshooting WARNING FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLESHOOTING YOUR FAN. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1. Fuse or Circuit Breaker blown. 1. Check Main and Branch Circuit Fuses or Circuit Breakers. WARNING Make sure main power is turned OFF.
