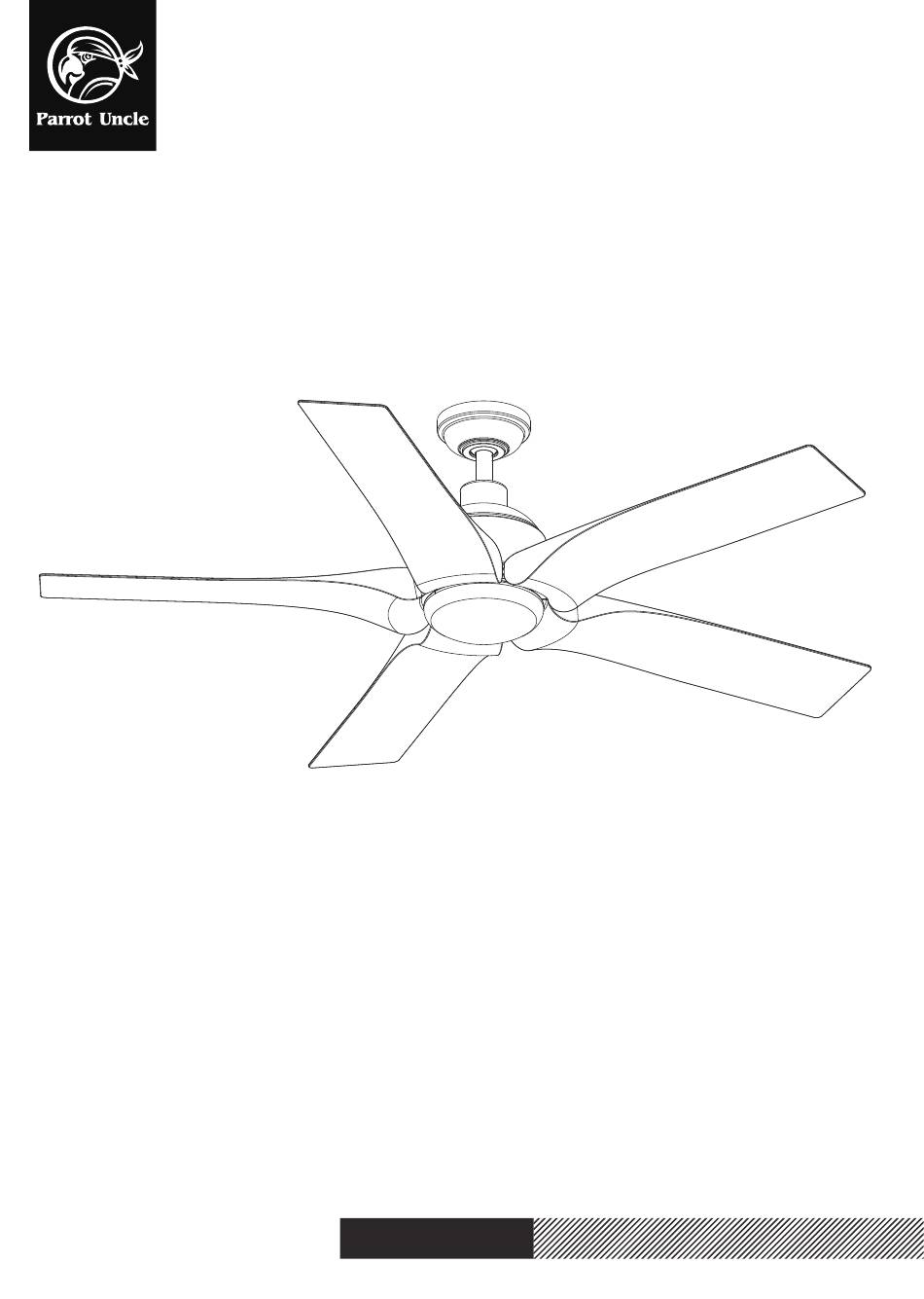

- Page 1 BBLDA158A English / Espanol ñ / Francais ç www.parrotuncle.com...
-
Page 2: Technical Information
BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Safety Information 1. To reduce the risk of electric shock, the electricity has been WARNING: TO reduce the risk of personal injury, turned off at the circuit breaker or fuse box before begin. - Page 3 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Plastic wire nut (4PCS) Mounting screws (2PCS) Blade screw (11PCS) Screws (2PCS) Washer (2PCS) Mounting bracket Hanging Pin 4.5" ball/downrod assembly “R”...
- Page 4 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Check existing outlet box (not included) to ensure it is securely fastened to at least two points in a structural ceiling member and can support the full weight of the fan.
- Page 5 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER 6 to 9 in Slide downrod into the coupling on top of the motor. Install the hanging pin by aligning the holes in the coupling with holes in the downrod.
- Page 6 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Outlet box WHITE (AC IN N) BLACK (AC IN L) BLUE (FOR LIGHT L) BLUE (FOR LIGHT) WHITE (FOR LIGHT N)
- Page 7 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Securely attach and tighten the canopy cover over the screws in the mounting bracket utilizing the key slot twist-lock feature.
- Page 8 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Assemble the switch housing assembly to the support bracket using the two key slots in the switch housing assembly.
- Page 9 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Secure the shade to the switch housing assembly by twisting in a clockwise direction. Do not over-tighten. Whole structure...
- Page 10 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER...
- Page 11 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER WIRING SCHEMATIC DIAGRAM FOR RECEIVER Black wire White Power supply live-wire Light neutral-wire Blue Light live-wire White wire Power supply neutral-wire...
- Page 12 BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER SIZE OF PRODUCT Ø5.9" 2.1" 4.5" 10.6" 15" Ø7.9"...
-
Page 13: Troubleshooting Guide
Measurements should be within 1/8 inch. b) If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer Service Support@parrot Uncle. com to order a complimentary Blade Balancing Kit -If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer service Support@Parrot Uncle. -
Page 14: After Installation
BBLDA158A Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER AFTER INSTALLATION Wobble The fan blades have been adjusted in the factory to minimize any wobble Note: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. - Page 15 120Vac...
