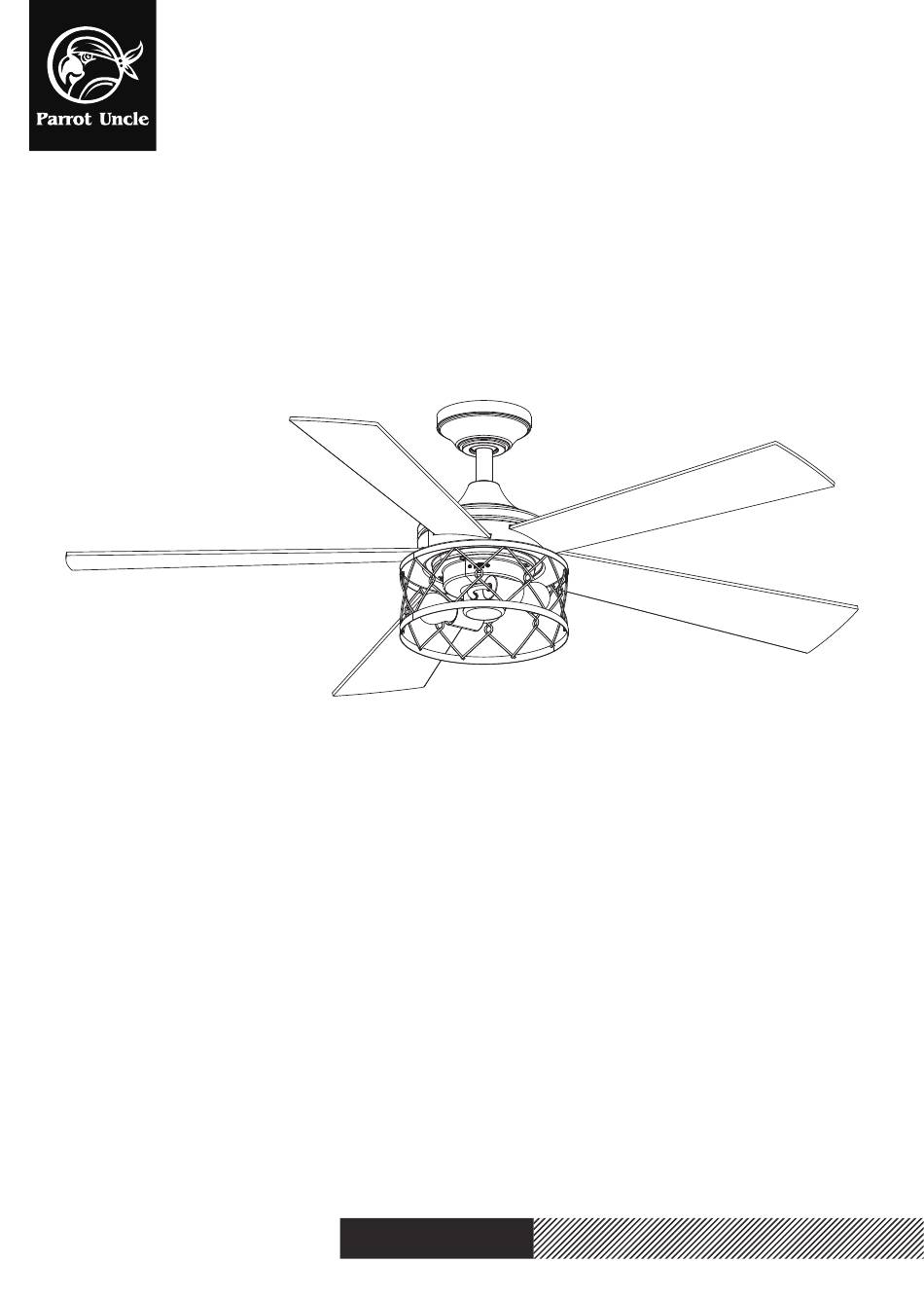

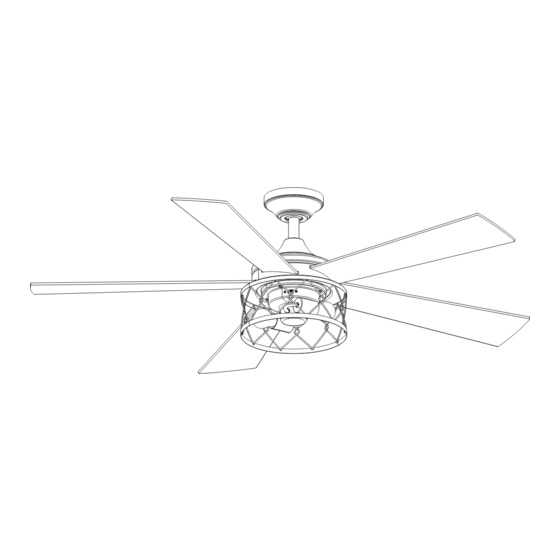

- Page 1 BBLAB025A0 English / Espanol ñ / Francais ç www.parrotuncle.com...
-
Page 2: Safety Information
BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Safety Information 1. To reduce the risk of electric shock, the electricity has been WARNING: TO reduce the risk of personal injury, turned off at the circuit breaker or fuse box before begin. - Page 3 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Plastic wire nut (4PCS) Mounting screws (2PCS) Blade screw (16PCS) Screws (2PCS) Washer (2PCS) Mounting bracet Hanging Pin 4.5" ball/downrod assembly “R”...
- Page 4 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Check existing outlet box (not included) to ensure it is securely fastened to at least two points in a structural ceiling member and can support the full weight of the fan.
- Page 5 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER 6 to 9 in Slide downrod into the coupling on top of the motor. Install the hanging pin by aligning the holes in the coupling with holes in the downrod.
- Page 6 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER WHITE (AC IN N) BLACK (AC IN L) BLUE (FOR LIGHT L) BLUE (FOR LIGHT) WHITE (TO MOTOR N)
- Page 7 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Securely attach and tighten the canopy cover over the screws in the mounting bracket utilizing the key slot twist-lock feature.
- Page 8 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Attach the Light Kit fitter assembly housing to the mounting plate on the motor assembly by placing the keyhole slots from the Light Kit fitter assembly housing onto the two protruding mounting screws heads.
- Page 9 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Insert two (2) MAXIMUM 5W E26 LED bulbs (not included) into lamp holders. Dry your hands before installing bulbs. Keeping the bulbs clean is important as useful lifetime of a dirty bulb could be shorter than a clean bulb.
- Page 10 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER...
- Page 11 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER WIRING SCHEMATIC DIAGRAM FOR RECEIVER Black wire Blue Light live-wire Power supply live-wire White White wire To Motor wire...
- Page 12 BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER SIZE OF PRODUCT 5.9" 2.1" 4.5" 8.4" 14.5" 10.5"...
-
Page 13: Troubleshooting Guide
Measurements should be within 1/8 inch. b) If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer Service Support@parrot Uncle. com to order a complimentary Blade Balancing Kit -If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer service Support@Parrot Uncle. -
Page 14: Care And Cleaning
BBLAB025A0 Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER AFTER INSTALLATION AFTER INSTALLATION Wobble The fan blades have been adjusted in the factory to minimize any wobble Note: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. - Page 15 120Vac 2XE26 MAX5W...
- Page 24 120 V...
- Page 28 120Vac 2XE26 MAX5W...
- Page 37 120 V...
