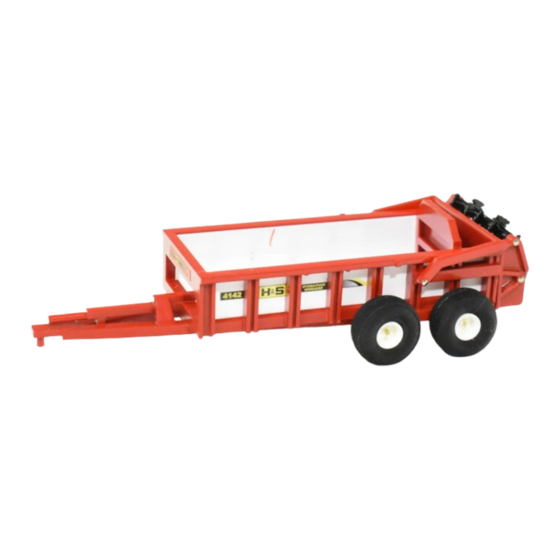

MANURE SPREADER
MANURE SPREADER
MANURE SPREADER
MANURE SPREADER
MANURE SPREADER
OPERA
OPERA T T T T T OR'S MANU
OPERA
OPERA
OPERA
WARNING
Revision #01
HPH4142 Starting Serial #911HP42005
HPV4155 Starting Serial #911HP55001
HPV4142 Starting Serial #911VP42016
HPV4155 Starting Serial #911VP55009
H&S MANUFACTURING CO.,INC.
4142/4155
4142/4155
4142/4155
4142/4155
4142/4155
OR'S MANU
OR'S MANU
OR'S MANU AL
OR'S MANU
P.O. BOX 768 (715) 387-3414 FAX (715) 384-5463
MARSHFIELD, WISCONSIN 54449
Hydra-Push
Spreader
READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT.
UNSAFE OPERATION OR MAINTENANCE OF
THIS EQUIPMENT CAN RESULT IN SERIOUS
INJURY OR DEATH.
Manufactured By
HSMFG1218
AL
AL
AL
AL
Part #75895
Advertisement
Table of Contents
Related Manuals for H&S 4142
Summary of Contents for H&S 4142
- Page 1 Hydra-Push Spreader 4142/4155 4142/4155 4142/4155 4142/4155 4142/4155 MANURE SPREADER MANURE SPREADER MANURE SPREADER MANURE SPREADER MANURE SPREADER OPERA OPERA T T T T T OR’S MANU OPERA OR’S MANU OR’S MANU OR’S MANU AL OPERA OPERA OR’S MANU READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS EQUIPMENT.
-
Page 2: Table Of Contents
CONTENTS Warranty ................1 Manufacturers Statement . - Page 6 Intentionally Left Blank...
-
Page 7: Dealer Pre-Delivery Checklist
H&S DEALER PRE-DELIVERY CHECK LIST AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS After the Manure Spreader has been completely set-up, check to be certain it is in correct operating order before delivering to the customer. The following is a list of points to inspect. Check off each item as you have made the proper adjustments and found the item operating satisfactorily. - Page 8 Intentionally Left Blank...
-
Page 9: Dealer Delivery Checklist
DEALER DELIVERY CHECK LIST AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS This check list that follows is an important reminder of valuable information that should be passed on to the customer at the time this Manure Spreader is delivered. Check off each item as you explain it to the customer. - Page 10 Intentionally Left Blank...
-
Page 11: Safety Information - Be Alert Symbol
SAFETY INFORMATION YOUR SAFETY IS INVOLVED. ALERT! THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE. -
Page 12: Safety Information - Explanation Of Safety Signs
SAFETY INFORMATION RECOGNIZE SAFETY INFORMATION This is the safety-alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. UNDERSTAND SIGNAL WORDS A signal word;... -
Page 13: Safety Decals
SAFETY DECALS -11-... - Page 14 SAFETY DECALS -12-...
- Page 15 SAFETY DECALS -13-...
-
Page 16: Safety Information - Warning - Owner Must Read And Understand
SAFETY INFORMATION TRACTOR: This operators manual uses the term “Tractor” when identifying the power source. W A R N I N G TO PREVENT SERIOUS INJURY OR DEATH BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING INFORMATION. -
Page 17: Cap Screw Torque Values
-15-... -
Page 18: Set-Up & Assembly
1. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to the appropriate torque.Wheel bolts should be tightened at 100 ft/lbs. of torque on 4142 and 300 ft/lbs. of torque on the 4155. 2. Check the tires and inflate to the recommended pressure(425/65R-22.5 tires to 85 psi.). -
Page 19: Transporting
TRANSPORTING TRANSPORT LIGHTING & REFLECTORS When transporting on the highway, connect the spreader to the tractor with a lighting power cord. lighting system is to be connected to the 7 pin power receptacle (per SAEJ560B) on your tractor. If your tractor is not equipped with the proper receptacle, see your tractor dealer for details. -
Page 20: Preparing For Operation
PREPARING FOR OPERATION TRACTOR CONNECTIONS Tractor Hitch ATTENTION: Remove tractor quick coupler (If equipped). Tractor three point arms should be removed or positioned so they cannot come in contact with spreader. Failure to heed will cause damage to spreader and Void Warranty. Fasten the spreader hitch to the drawbar with a hitch pin with a safety locking device. - Page 21 PREPARING FOR OPERATION PTO ASSEMBLY Attach the PTO of the spreader to the tractor by sliding the spring loaded locking collar on PTO yoke rearward, then sliding it onto the tractor PTO shaft. Release spring loaded collar. Be sure the pins fall into the groove of the tractor PTO shaft and collar snaps forward into locking position.
-
Page 22: Operation
OPERATION EMERGENCY SHUTDOWN If a foreign object becomes lodged in the beater area and shears the shear bolt, disengage the PTO and stop the hydraulic pusher. Stop the tractor engine, remove the ignition key, and allow all mechanisms to stop before cleaning or working on the spreader. LOADING Begin loading the spreader at the front end and work toward the rear until loading is completed. -
Page 23: Service & Adjustments
Do not attempt to clean, grease or lubricate while the machine is running. Never allow riders in or on the machine. 540 RPM (4142) OR 1000 RPM (4142/4155) DRIVELINE PROTECTION TORQUE LIMITER DISCONNECT CLUTCH The driveline may be protected by a Torque Limiter Disconnect Clutch located in the PTO at the front of the spreader. -
Page 24: Adjustments
ADJUSTMENTS HORIZONTAL BEATER DRIVE CHAINS Both beater drive chains can be adjusted by loosening bolts (A) and sliding the poly tensioners toward the chain until 1/2” of deflection can be obtained on the opposite side (B). Retighten the bolts (A) when deflection is obtained. VERTICAL BEATER DRIVE CHAINS Shields Opened for Clarity Vertical beater drive chains have a spring loaded tightener... -
Page 25: Vertical Beaters
VERTICAL BEATERS BEATER REMOVAL The beater attachment can easily be removed for various reasons such as manure stock piling. Remove bolts, nuts and lockwashers (A). Remove connector link on chain (B). Strip chain from sprockets. Set bolts and chain aside. Securely attach a lifting chain to lifting eyes at the top of the beater assembly (C). -
Page 26: Optional Equipment
OPTIONAL EQUIPMENT REAR PAN - HORIZONTAL BEATER The rear pan shown to the right is optional equipment on the 4142 & 4155 spreader. The rear pan option allows for an even spread when light applications are needed. -24-... -
Page 27: Lubrication Guide
LUBRICATION GUIDE GENERAL INFORMATION IMPORTANT: Catch and dispose of fluid per local waste disposal regulations whenever service is performed on hydraulic components, valves, cylinders, hoses, etc. The operator should become familiar with all lubrication points and establish a systematic routine to ensure complete and quick lubrication of the machine. - Page 28 LUBRICATION GUIDE Shields Removed for Clarity C (Behind Shield on bearing) CHAIN OILER The Vertical Beater attachment is equipped with a chain oiler. The oiler will place a prescribed amount of oil to the drive chains every time the hydraulic endgate is raised. In warm weather, the oiler should be filled with a #30 oil, and #10 oil in cold weather.
-
Page 29: Decal Location
Hydra Push Spreader Decal - HP4142/HP4155 Right Side 67132 Hydra Push Spreader Decal - HP4142/HP4155 Front 71233 Model Decal - 4142 Left and Right Side 71232 Model Decal - 4155 Left and Right Side 71237 Model Decal - 4142 Front... - Page 30 DECAL LOCATION 111593C 123002 1494K 58703 111593A 66076 1494J 093366 093020 DCAMB 66076 1494B 1906F 093020 111593C 1494A 111593A 1494J 1494K 093366 123002 093020 32597A 093020 1906F -28-...
- Page 31 DECAL LOCATION 71233 - 4142 123002 111593C 67131 - 4142/4155 71232 - 4155 1906D DCAMB 3494A 1906F 093020 1906F 9194A 11599 82508 1906C 9194A 82602 1906D 9194A -29-...
- Page 32 DECAL LOCATION 71236 - 4142 1906E 71237 - 4155 67132 - 4142/4155 54033 1906E 1494J DCAMB 11599 1906F 111510 72203A DCAMB 9194B 58703 82602 51606 66076 -30-...
- Page 33 DECAL LOCATION 1906C 82508 71706 9194A 11599 9194A 66076 82602 9194A 66076 093020 1906D 71188B 71233 - 4142 71232 - 4155 67130 - 4142/4155 123002 111593C 12794 58703 1494J 11593A 093020 1906F DCAMB 1906F 3494A DCAMB -31-...
- Page 34 DECAL LOCATION 71494A UNDER 12794 12794 SHIELD DCB12 DCRED DCRED JD5922 -32-...
-
Page 35: Trouble Shooting
TROUBLE SHOOTING WARNING: MAKE SURE THAT THE TRACTOR IS SHUT OFF AND THE SPREADER CAN NOT MOVE BEFORE SERVICING THE MANURE SPREADER. MAINTENANCE AND REPAIR SERVICE WORK TO BE PERFORMED BY A QUALIFIED SERVICE PERSON ONLY. TROUBLE... POSSIBLE CAUSE... POSSIBLE REMEDY... Beater Will Not Run Tractor PTO Not Turning Engage Tractor PTO... -
Page 36: Service Notes
SERVICE NOTES _____________________________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ -34-... - Page 38 H&S MFG H&S MFG ..CO H&S MFG CO ..H&S MFG H&S MFG products approved for the FEMA FEMA FEMA FEMA FEMA SEAL OF Q SEAL OF Q U U U U U ALITY SEAL OF Q ALITY ALITY...
