QUICK START PROCEDURE

Connect DC1338B to a DC590 USB serial controller using
the supplied 14 conductor ribbon cable. Connect DC590
to host PC with a standard USB A/B cable. Run the evalu-
ation software supplied with DC590 or downloaded from
http://www.linear.com/software. The correct program
2
will be loaded automatically. Click the COLLECT button to
start reading the input voltage (COLLECT button becomes
PAUSE after collection has been initiated). Details on
software features are documented in the control panel's
help menu.

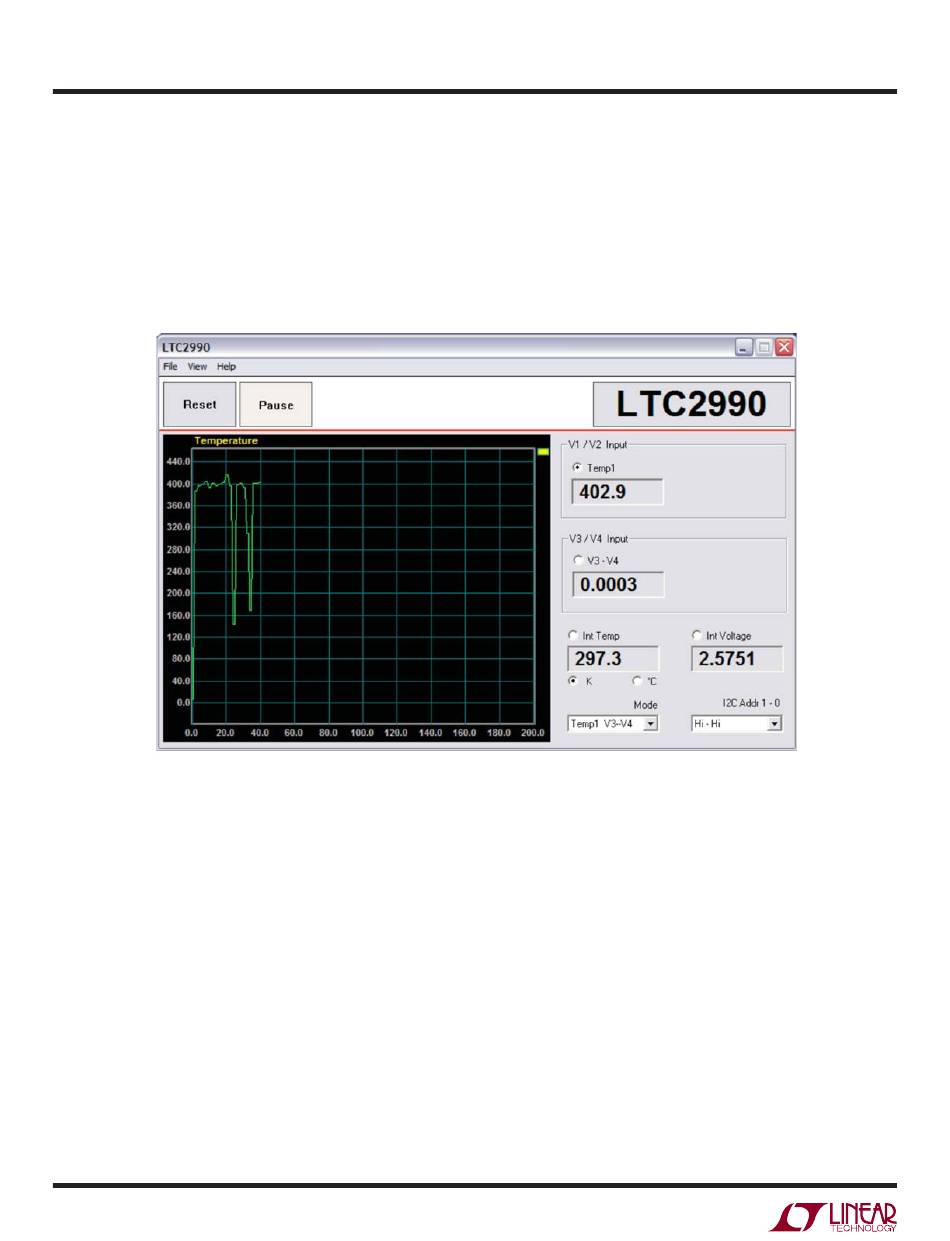

Figure 2. Software Screenshot
