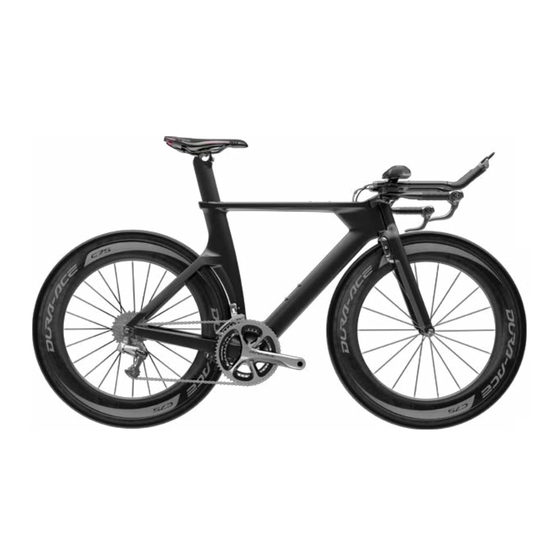

All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE...
Page 2
All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE The following steps will help you to quickly disassemble the E-118 NEXT front-end for travelling purposes.
Page 3
All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE 1. First remove the 3 stem cap screws and the stem cap to get access to the handlebar.
Page 4
All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE 2. Remove the 4 M6 screws...
Page 5
All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE 3. Carefully lift the handlebar upward. You can replace the handlebar screws on the fork head to avoid losing any parts.
Page 6
All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE 4. Place the handlebar as shown in the picture. You should use protective material between the frame and the handlebar to avoid any damage.
Page 7
All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE 5. Secure the handlebar to the frame and fork by using straps.
Page 8
All manuals and user guides at all-guides.com E-118 NEXT: TRAVEL GUIDE Note : If you use an electronic shifting system, you may have to unplug the connector wires.
