adjUST TINe HeIGHT
The tine height is pre-adjusted for average lawn and
may not need to be changed. Changes can be made to
tine height if working conditions require it. Only make
adjustments to tine height when Power Rake is turned
off and unplugged from a power source. There are 5
positions for the tines (.7", .9", 1.1", 1.4" and 1.7"). Pull
adjustment arm out from engagement hole, move it and
then let it re-engage in the desired height position. Make
adjustments by 1-step increments only and alternate
between left and right sides when making adjustments.
Adjustment arms must always be same height position
when using the machine.

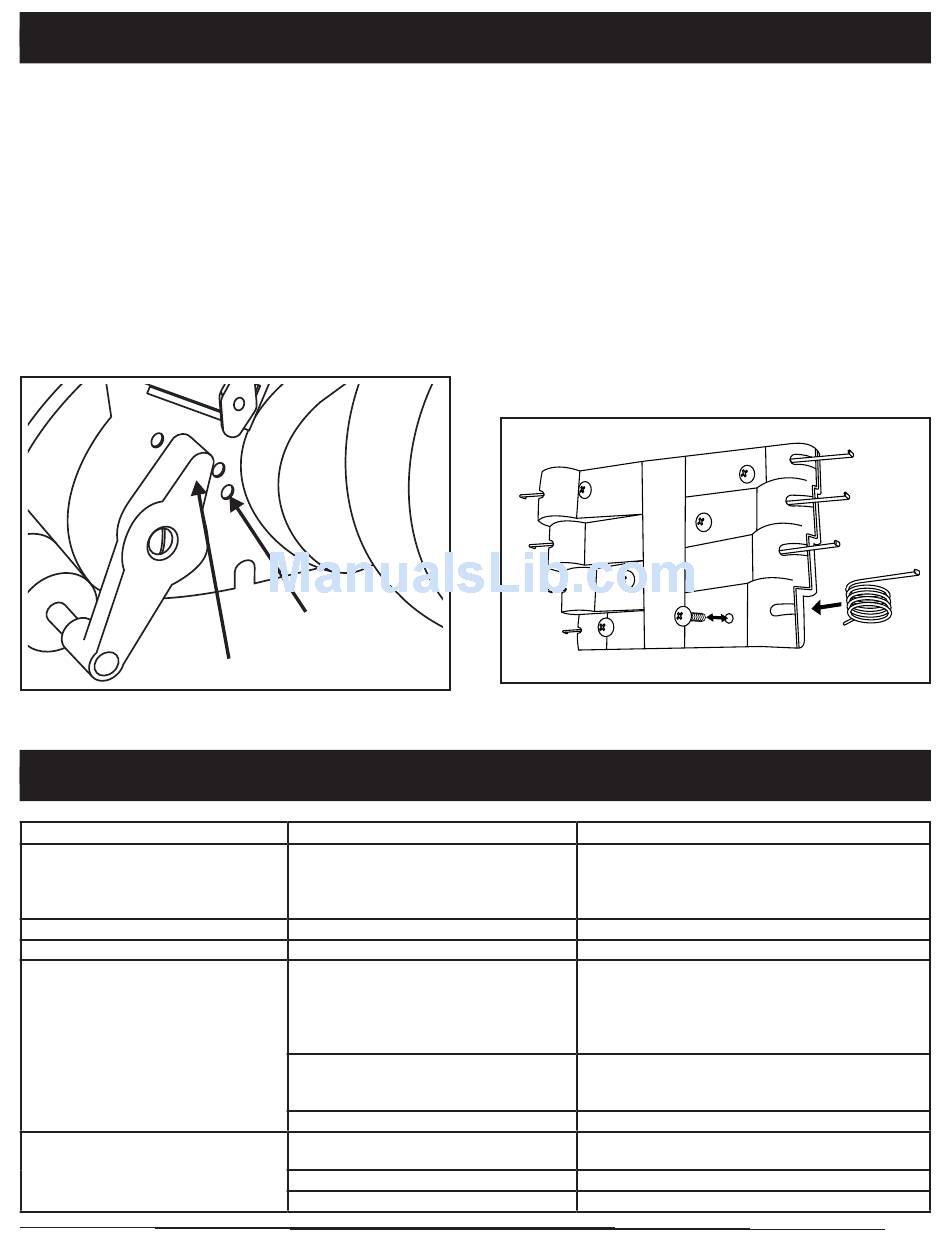

ADJUSTMENT ARM
FIGUre 10
PrOBLeM
Noise in unit
whistling sound from unit
Power rake not starting
Motor cuts out during operation
dethatching is not satisfactory
Call 1-866-576-8388 for missing parts or assembly help
DO NOT RETURN TO STORE

ServICe aNd adjUSTMeNTS

ENGAGEMENT HOLE

TrOUBLeSHOOTING

CaUSe
Foreign objects in Power Rake.
Belt (part number 79) is slipping
Faulty cable/wiring.
Tine rotation blocked by foreign objects
Tine depth set too low.
Grass is too tall.
Spring tines have excessive wear.
Belt (part number 6) malfunctioning.
Grass is too tall.
rePLaCe daMaGed Or wOrN TINeS
If a tine becomes worn a damaged, it can be replaced.
To replace any worn or damaged tines, follow the steps
below:
1.
Make sure the dethatcher is turned off and unplugged
from a power source.
2.
Turn dethatcher over so tines can be easily accessed.
3.
Remove the six screws holding the section together
where the damaged tine resides and remove the top
section.
4.
Pull out damaged tine and replace it with a new tine.
5.
Reattach the top section removed in step 3 with the
screws that were removed.
FIGUre 11
1.
Turn off Power Rake, unplug from outlet and
wait for rotation to stop.
2.
Remove foreign objects from housing.
3.
Check Power Rake for any other damage.
1.
Contact your local Sears Service Center.
1.
Contact your local Sears Service Center.
1.
Turn off Power Rake, unplug from outlet and
wait for rotation to stop.
2.
Remove foreign objects from housing.
3.
Wait approximately 1 minute and then plug-in
and turn on Power Rake.
1.
Turn off Power Rake, unplug from outlet and
wait for motor to cool down.
2.
Set tine depth to appropriate height.
1.
Mow lawn before using Power Rake.
1.
Replace spring tines (see Service and
Adjustments section on page 7.)
1.
Contact your local Sears Service Center.
1.
Mow lawn before using Power Rake.
COrreCTION
7
