User Instructions

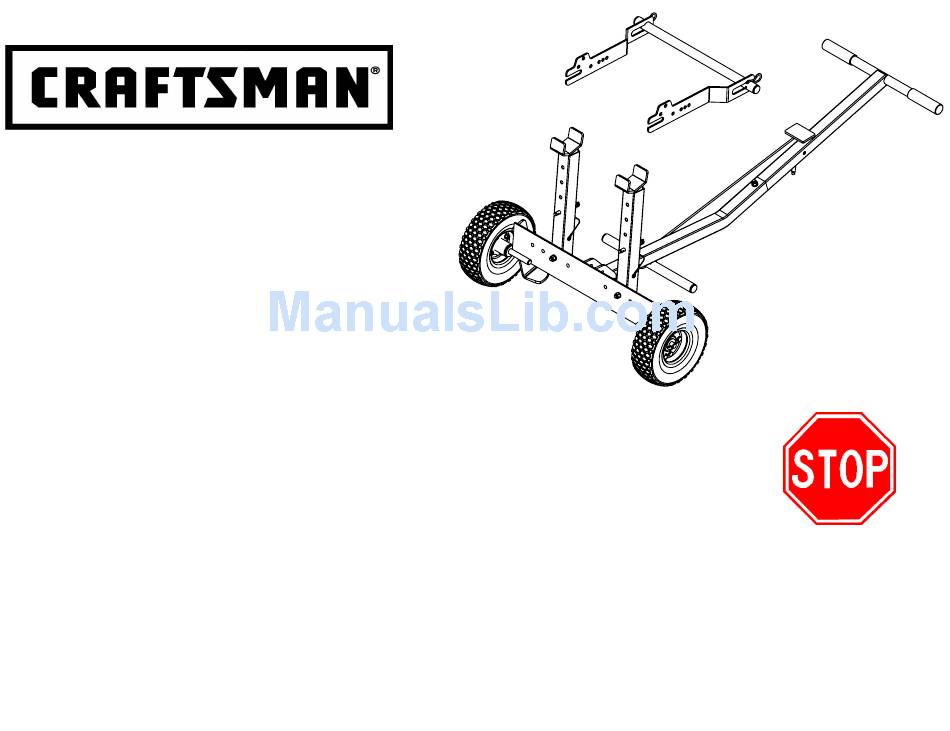

TRACTOR LIFT
Model Number 610.24600
Provides access to mower deck for easy
cleaning and service
Fits all 1985 through current models
of CRAFTSMAN front engine tractors
and Zero Turn Mowers
Can be fitted to most major front engine tractor brands
Adjustable arms for greater versatility
Extra heavy duty gauge steel construction
If you read and follow these instructions, this product can be
assembled in approximately 20 minutes
Assemble unit on cardboard to avoid scratches or damage to parts
Can easily be assembled by one person
All fasteners for this Tractor Lift can be purchased at Sears or any
hardware store
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
Patent Pending
If there are any missing
parts, or if you have any
questions on assembly,
operation, maintenance
or safety, please call
1-800-652-6231
610.24600-REV B 3/08

Advertisement

loading

  Related Manuals for Craftsman TRACTOR LIFT 610.246

  Summary of Contents for Craftsman TRACTOR LIFT 610.246

  • Page 1 • Provides access to mower deck for easy cleaning and service • Fits all 1985 through current models of CRAFTSMAN front engine tractors and Zero Turn Mowers • Can be fitted to most major front engine tractor brands • Adjustable arms for greater versatility •...
  • Page 2: Safety Instructions

    WARNINGS • Always use the stabilizer bar provided when using tractor lift. Make sure stabilizer bar is properly in place before starting any work on tractor. • Read and understand all safety and operating instructions before using the tractor lift. Never allow anyone unfamiliar with these instructions to use the tractor lift.
  • Page 3: Operation

    41009 51005 OPERATION Tractor Lift can be used out of the box on all Craftsman tractors with bumpers or brush guards. Tractor Lift mounting hardware is provided if your tractor does not have a bumper or brush guard. TOOLS REQUIRED FOR ASSEMBLY 9/16"...
  • Page 4 Hardware Contents FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T. Page 4.
  • Page 5 Setting up Lift Mounting Hardware - Tractor Front Tractor Lift can be used out of the box on all Craftsman tractors with bumpers or brush guards. Tractor Lift mounting hardware is provided. If your tractor does not have a bumper or brush guard, follow the steps below: Note: Left and Right sides are determined by standing behind tractor looking forward.
  • Page 6 Note: The higher the lift tube extensions (5) are positioned, the harder the tractor will be to lift. FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T. Front of Craftsman Zero Turn Page 6. Determining the width between lift tubes.
  • Page 7 Assemble Tractor Lift Attach Handle to Angle Frame Step 1. Attach handle bottom ( 3 ) to angle frame ( 1 ) using hex bolt ( 22 ), flat washer ( 24 ), split lock washer ( 23 ) and hex nut (25 ). Step 2.
  • Page 8 Assemble Tractor Lift Attach Stabilizer Bar Step 1. Slide stabilizer bar ( 8 ) onto foot bar tube as shown. Step 2. Press snap button and slide stabilizer bar against handle. Step 3. Insert ring grip pin ( 30 ) through stabilizer bar and handle top. FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m.
  • Page 10 OPERATION Using the Tractor Lift Step 3. Engaging Stabilizer Bar Stabilizer bar MUST be engaged immediately after raising the tractor. WARNING: Failure to engage stabilizer bar may result in serious personal injury and or property damage. • Remove ring grip pin ( 30 ) from tube handle. Press snap button and slide stabilizer bar ( 8 ) from foot bar tube.
  • Page 11 Repair Parts List MODEL NUMBER - 610.24600 FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T. Page 11. Peel off backing, adhere to handle.
  • Page 12: Product Record

    PRODUCT RECORD In the space below record the model number and purchase date of your cart. The model number can be found on the front cover of the user guide. Model Number___________________________. Purchase Date___________________________. Keep this booklet and your Sears receipt in a safe place for future reference.
  • Page 13 Get it fixed, at your home or ours! For expert troubleshooting and home solutions advice: For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner’s manuals that you need to do-it-yourself.
