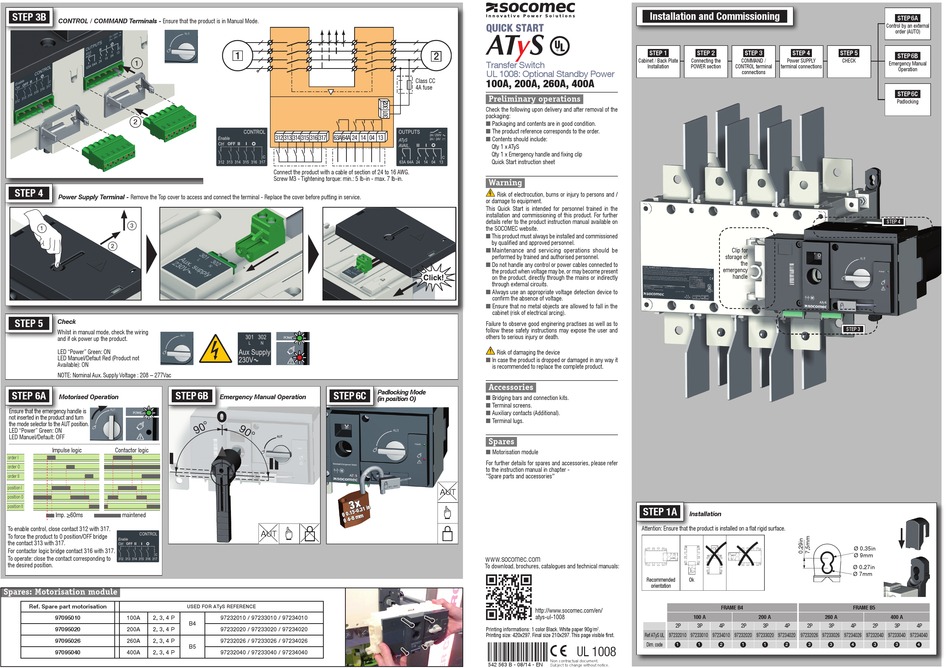

socomec 97232010 Quick Start

STEP 3B
CONTROL / COMMAND Terminals - Ensure that the product is in Manual Mode.
1
2
STEP 4
Power Supply Terminal - Remove the Top cover to access and connect the terminal - Replace the cover before putting in service.
3
1
2
STEP 5 Check
Whilst in manual mode, check the wiring
and if ok power up the product.
LED "Power" Green: ON
LED Manuel/Defaut Red (Product not
Available): ON
NOTE: Nominal Aux. Supply Voltage : 208 – 277Vac
STEP 6A STEP 6B
Motorised Operation
Ensure that the emergency handle is
not inserted in the product and turn
the mode selector to the AUT position.
LED "Power" Green: ON
LED Manuel/Default: OFF
___________________________________________________________
Impulse logic Contactor logic
I
order I
order 0
order II
position I
position 0
position II
Imp. ≥60ms maintened
To enable control, close contact 312 with 317.
To force the product to 0 position/OFF bridge
the contact 313 with 317.
For contactor logic bridge contact 316 with 317.
To operate: close the contact corresponding to
the desired position.
Spares: Motorisation module
Ref. Spare part motorisation
97095010 100A 2, 3, 4 P
97095020 200A 2, 3, 4 P
97095026
260A 2, 3, 4 P
97095040 400A 2, 3, 4 P
1
312 313 314 315 316 317 63A 64A 24 14 04 13
CONTROL OUTPUTS
Connect the product with a cable of section of 24 to 16 AWG.
Screw M3 - Tightening torque: min.: 5 lb-in - max. 7 lb-in.
STEP 6C
Emergency Manual Operation
0
AUT
II
AUT
USED FOR ATyS REFERENCE
97232010 / 97233010 / 97234010
B4
97232020 / 97233020 / 97234020
97232026 / 97233026 / 97234026
B5
97232040 / 97233040 / 97234040
quick start
ATyS
2
Transfer Switch
UL 1008: Optional Standby Power
Class CC
100a, 200a, 260a, 400a
4A fuse

Preliminary operations

Check the following upon delivery and after removal of the
packaging:
Packaging and contents are in good condition.
n
n The product reference corresponds to the order.
Contents should include:
n
Qty 1 x ATyS
Qty 1 x Emergency handle and fixing clip
Quick Start instruction sheet
Warning
Risk of electrocution, burns or injury to persons and /
or damage to equipment.
This Quick Start is intended for personnel trained in the
installation and commissioning of this product. For further
details refer to the product instruction manual available on
the SOCOMEC website.
This product must always be installed and commissioned
n
by qualified and approved personnel.
n Maintenance and servicing operations should be
performed by trained and authorised personnel.
Do not handle any control or power cables connected to
n
the product when voltage may be, or may become present
on the product, directly through the mains or indirectly
through external circuits.
Always use an appropriate voltage detection device to
n
confirm the absence of voltage.
Ensure that no metal objects are allowed to fall in the
n
cabinet (risk of electrical arcing).
Failure to observe good enginering practises as well as to
follow these safety instructions may expose the user and
others to serious injury or death.
Risk of damaging the device
In case the product is dropped or damaged in any way it
n
is recommended to replace the complete product.

Accessories

Padlocking Mode
Bridging bars and connection kits.
(in position O) n
Terminal screens.
n
Auxiliary contacts (Additional).
n
Terminal lugs.
n
Spares
n Motorisation module
For further details for spares and accessories, please refer
to the instruction manual in chapter -
"Spare parts and accessories"
AUT
www.socomec.com
To download, brochures, catalogues and technical manuals:
http://www.socomec.com/en/
atys-ul-1008
Printing informations: 1 color Black. White paper 90g/m
Printing size: 420x297. Final size 210x297. This page visible first.
Non contractual document.
542 563 B - 08/14 - EN
Subject to change without notice.

Installation and Commissioning

STEP 1 STEP 2 STEP 3
Cabinet / Back Plate Connecting the COMMAND /
Installation POWER section CONTROL terminal
connections
Clip for
storage of
the
emergency
handle
STEP 1A
Installation
Attention: Ensure that the product is installed on a flat rigid surface.
Recommended Ok
orientation
FRAME B4
100 A
2P 3P 4P 2P
2 .
Ref ATyS UL 97232010 97233010 97234010 97232020 97233020 97234020 97232026 97233026 97234026 97232040 97233040 97234040
Dim. code
1 1 2 1
UL 1008
STEP 6A
Control by an external
order (AUTO)
STEP 4 STEP 5
STEP 6B
Power SUPPLY ChECk
Emergency Manual
terminal connections
Operation
STEP 6C
Padlocking
STEP 4
STEP 3
Ø 0.35in
Ø 9mm
Ø 0.27in
Ø 7mm
FRAME B5
200 A 260 A 400 A
3P 4P 2P 3P 4P 2P 3P 4P
1 2 3 3 4 3 3 4
