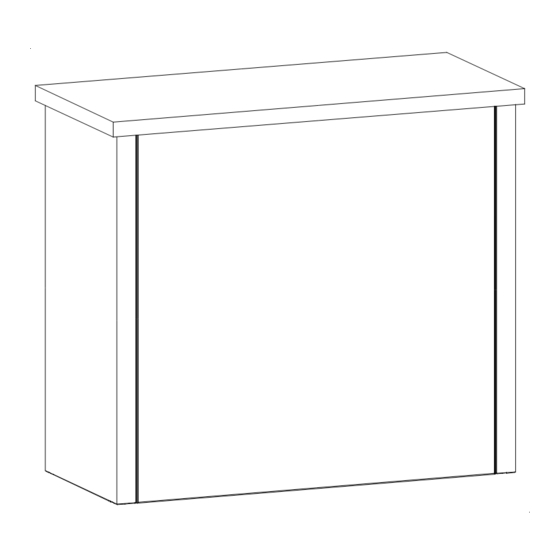

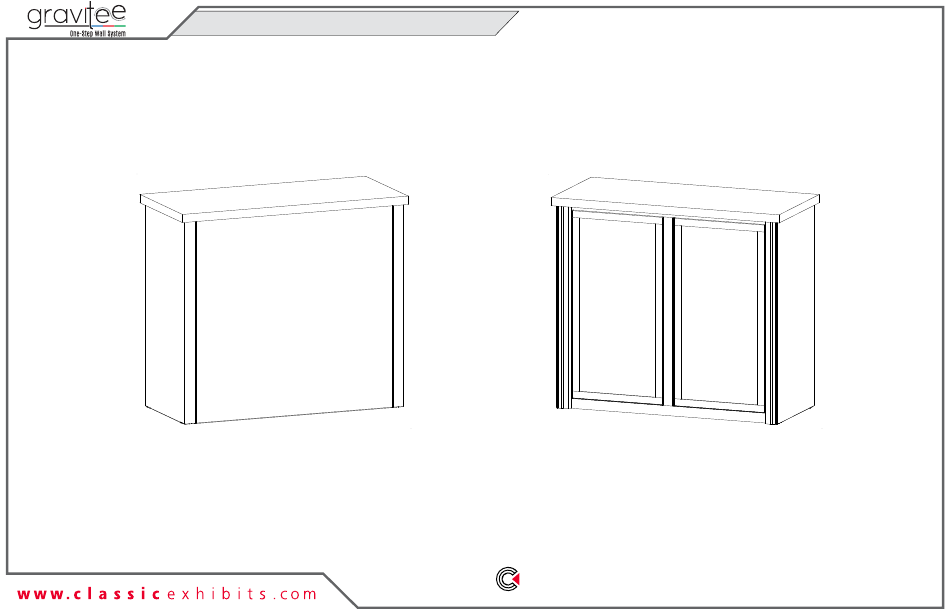

- Page 1 © 2022 Order #XXXXX GOD-1557 Counter FRONT VIEW BACK VIEW SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2022 Order #XXXXX General Information General Setup Instructions Assembly Assembly Cont’d - Read entire setup instruction manual prior to Push pin lock into hole of connecting frame. unpacking parts and pieces. Note: Block on pin lock will secure in groove. - The setup instructions are created specifically for this configuration.
- Page 3 © 2022 Order #XXXXX Counter Assembly Light Panel Item Qty. Description Steps: Connector Light Strip 37.5”h Gravitee Corner Post w/ S10 & Door Hinges 1) Assemble Gravitee panels & posts together, in numerical Connect light strips 14.125”w x 38”h Gravitee panel order as shown, making sure Velcro is facing inward.
- Page 4 © 2022 Order #XXXXX Counter Attachments Item Qty. Description Steps: 18”h Shelf Supports 1) Apply SEG graphics to front and sides of counter assembly. See General Information sheet for instruction. 2) Connect shelf supports to Velcro on inside of [2] and [6], then place shelf onto shelf supports.
