Summary of Contents for Classic Exhibits gravitee GK-1014

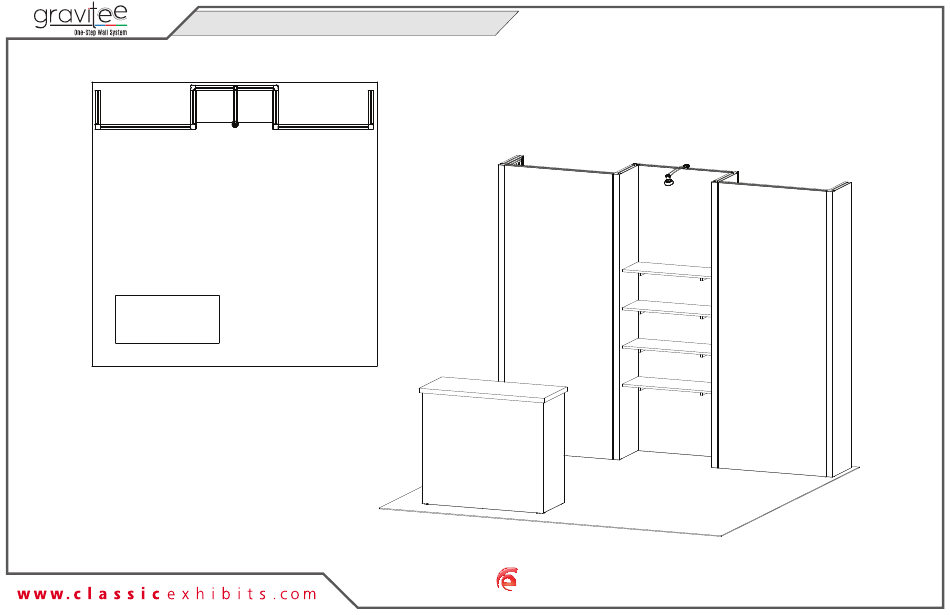

- Page 1 © 2019 Order #XXXXX GK-1014 General Layout 10’ 10’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2019 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. -
Page 3: Side-By-Side
© 2019 Order #XXXXX Gravitee Panel Assembly Assembly Assembly Cont’d Push pin lock into hole of connecting frame. Note: Block of pin lock will secure in groove. Side-by-Side Assembly Corner Connector 1) Frames: Place frames side-by-side with one higher than the other, then slide panel down to lock panels securely together. - Page 4 © 2019 Order #XXXXX Crate Packing Crate 1 of 1...
- Page 5 © 2019 Order #XXXXX GK-1014 Grid View = 1 sq foot...
- Page 6 © 2019 Order #XXXXX GK-1014 Assembly Item Qty. Description Steps: 14.125”w x 95”h Gravitee Panel 1) Starting with panel [1], connect panels and posts 94.5”h Gravitee Corner Post w/ Caps Both Ends together in numerical order. 38”w x 95”h Gravitee Panel See Gravitee Panel Assembly sheet for assembly 94.5”h Gravitee Corner Post w/ Caps Both Ends instruction and GK-1014 Corner Post Orientation sheet.
- Page 7 © 2019 Order #XXXXX GK-1014 Corner Post Orientation Top View Top View w/Caps w/Caps w/Caps w/Caps Top View Top View Top View Top View Step 2 of 6...
- Page 8 © 2019 Order #XXXXX GK-1014 SEG Graphics SEG Graphic Attachment Corner A Corner B Limited space in corners requires extra attentive installation. S E G Corner D Corner C It is important to first insert Step 1 Step 2 S E G S E G graphic into each alternate Insert corner A.
- Page 9 © 2019 Order #XXXXX GK-1014 Attachments Steps: 1) Attach shelves, to panel [7], thru holes in graphic. 3) Connect lights to top of display where desired. Light Connection detail. Completed Assembly Light Connection Light Clip Clip Shelf Light Shelf Slide light onto clip then lock clip into groove of horizontal extrusion.
-
Page 10: Back View
© 2019 Order #XXXXX GOD-1558 Counter Assembly Item Qty. Description Steps: 38”h Gravitee Corner Post w/ Door 1) Assemble Gravitee panels and posts in numerical order. 14.125”w x 38”h Gravitee Panel Frame See Gravitee Panel Assembly sheet for details. Door Attachment 38”h Gravitee Corner Post 2) Attach horizontal extrusions [9] and [9A] between posts [1] &... - Page 11 © 2019 Order #XXXXX GOD-1558 Counter Assembly (Cont’d) Steps: 1) Wrap SEG graphic around front & sides of counter. See SEG Graphic Installation detail. 2) Attach shelf supports to Velcro, then place shelf on top of supports. 3) Place counter top on assembly. See Counter Top Attachment detail.
