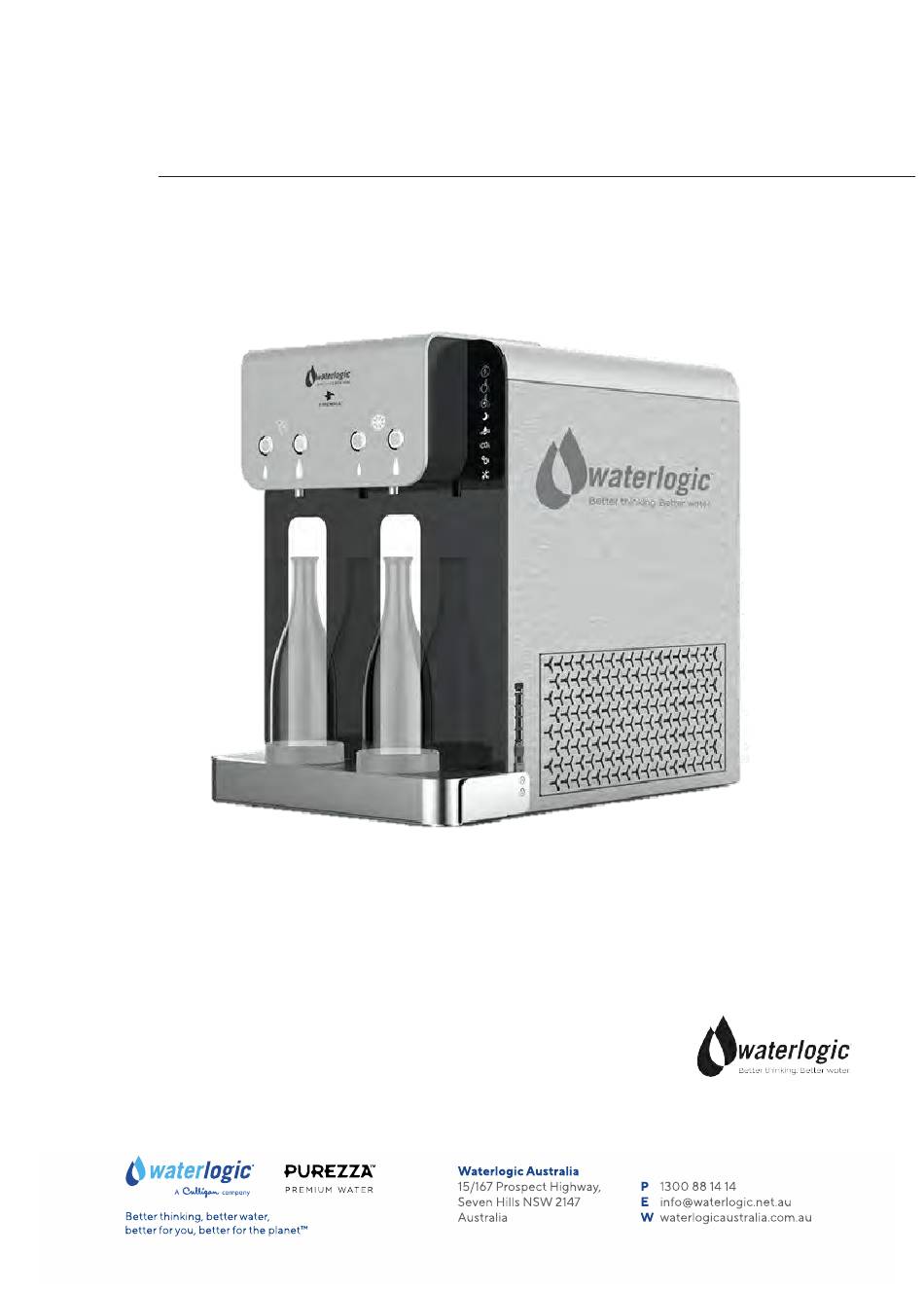

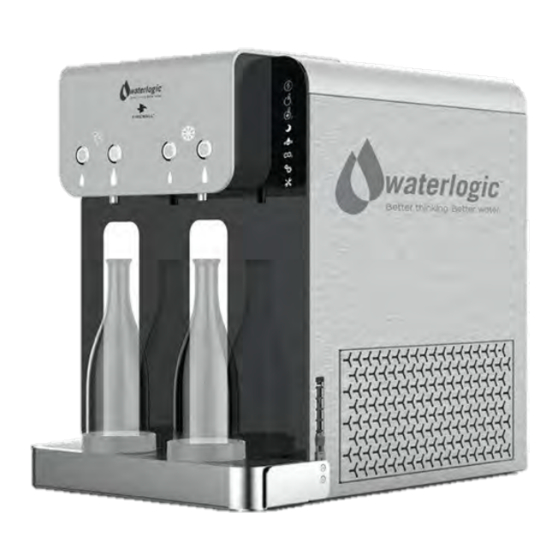

- Page 1 ™ WLH2 FIREWALL BAR CLASSE SERIES Technical Manual...
- Page 2 ™ WLH2 FIREWALL BAR CLASSE SERIES TECHNICAL MANUAL Waterlogic® provides water treatment in point of use water coolers using these three technologies: Firewall BioCote® antimicrobial protection High performance filtration With this in mind, this advanced water purification system combines refined engineering and high-tech features.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 PRECAUTIONS AND GENERAL RECOMMENDATIONS 1.1 SAFETY PRECAUTIONS 1.2 CERTIFICATIONS 2 PRODUCT INFORMATION 2.1 WLH2 FW BAR FEATURES AND BENEFITS 2.2 USER INTERFACE 2.3 TECHNICAL INFORMATION 2.4 WATER FLOW DIAGRAM 2.5 FRONT AND REAR VIEW 2.6 PRODUCT DIMENTIONS 3 INSTALLATION INFORMATION 3.1 START-UP INFORMATION 3.2 SANITISING... -
Page 4: Precautions And General Recommendations
1. PRECAUTIONS AND GENERAL RECOMMENDATIONS SAFETY PRECAUTIONS Ensure all local laws and codes including health and safety guidelines are met when installing this Waterlogic purification system. Only qualified service technicians should attempt installation and service. Always read the entire operating instructions before using the appliance and save these instructions for future use. - Page 5 Use a water pressure regulator: Waterlogic will not be responsible for injury or damage caused by excessive water pressure. Input or feed pressure must be regulated to 3 bar. Be aware of any potential pressure surges caused by building/municipal pumping stations.
-
Page 6: Certifications
CERTIFICATIONS We believe that performance testing and certifications validate Waterlogic as a world leader in water treatment systems. WLH2 FIREWALL WATER TREATMENT SYSTEM CERTIFICATIONS INCLUDE: UL399 – Certified drinking water cooler. Intertek Labs (ETL) Certified the WLH2 Firewall Bar Classe Series water treatment system to ANSI/UL 399 standard for drinking water coolers. -
Page 7: Product Information
2. PRODUCT INFORMATION WLH2 FIREWALL BAR CLASSE SERIES FEATURES AND BENEFITS The features showed below and in this technical manual are representative of the generic machine with five water options. Some machines are country specific and have different water options. Please take in to consideration only the details that are applicable to your specific model. Firewall™... -
Page 8: User Interface
USER INTERFACE Action Number Small Sparkling Dispense Button Big Sparkling Dispense Button Small Cold Dispense Button Big Cold Dispense Button UI Indicator LED’s... -
Page 9: Technical Information
TECHNICAL INFORMATION TECHNICAL DATA WLH2 Firewall™ Bar Features BioCote® UV Technology Firewall™ Dispense area height [mm] 315mm Energy saving mode Working information Cold water output [°C]* Sparkling water output [°C]* Ice Bath capacity [L] Sparkling tank capacity [L] Recommended inlet water pressure [bar] Recommended CO pressure [bar] Recommended inlet water temperature [°C]... -
Page 10: Water Flow Diagram
WATER FLOW DIAGRAM These diagrams are for reference and understanding the WLH2 Firewall, some features might not be included on your machine. Water configuration: cold and sparkling. -
Page 11: Front And Rear View
FRONT AND REAR VIEW 1 EXTERNAL COMPONENT Description Number UI Pannel Front Pannel Drip Tray Description Number Top cover Side panel Side panel window Water in connecter Socket Fuse Main switch Reset switch-sleep Reset switch-filter in connector Drain connector... -
Page 12: Product Dimentions
PRODUCT DIMENSIONS PRODUCT LABEL To identify your product characteristics and production date you can refer to the examples below: Model: S / N: Year: 19 Day: 13... -
Page 13: Installation Information
3. INSTALLATION INFORMATION Installation requirements: A dedicated and properly earthed outlet. Unit should be protected by residual current device (RCD) having a rated residual operating current not exceeding 30 mA. The machine needs to be mounted on a firm level surface so there is no chance of it toppling or falling over. - Page 14 Options to above PLV RMC PVDC50 dual check valve – 350 kpa PLV code 52010 / 100665 Accessories 1. JG ¼ sf x 3/8 stem elbow x 2 (for filter head) 60157 / 100963 2. JG ¼ sf x ¾ npt tap adaptor 60175 / 104065 3.
- Page 15 To start-up the product follow the instructions below. Some pre-installation piping is required before installing the machine: Connect the water supply. Ensure the power switch on the rear of the machine is in the OFF position and connect the unit to a power supply and CO Unpack and carry out a visual inspection of the unit.
-
Page 16: Sanitising Instructions
SANITISING INSTRUCTIONS The disinfection of the product after installation is very important to ensure that there is no residue on the machine due to transport and testing that can leave a bad taste in the water. Always ensure proper ventilation and use proper personal protective equipment such as gloves and eye protection when using chemicals. -
Page 17: Co Installation
INSTALLATION EQUIPMENT UNDER PRESSURE, HANDLE WITH CARE For the replacement of the CO cylinder, all the operations must be carried out exclusively by qualified technical personnel. The cylinders must not be lifted by the cap, or dragged, rolled or slid along the floor. Even short distances, an appropriate hand cart or other suitable means of transport should be used. -
Page 18: Service Procedures
4. SERVICE PROCEDURES A service every six months is important to keep the machine in perfect working condition and to ensure the best water quality possible. The service is composed of the following tasks: • Check the correct operation of the machine - Verify if every function is operational and the water temperatures and pressures are correct;... -
Page 19: Uv Lamp Replacement
UV LAMP REPLACEMENT The UV lamp can cause harm if improperly used, please check the safety precautions before attempting to replace the UV lamp. Turn OFF the power switch Disconnect the power cable [25]. Remove the outer casing and disconnect the UV lamp. Pull the UV lamp carefully. -
Page 20: Programming And Special Features
5. PROGRAMMING AND SPECIAL FEATURES PROGRAMMING INSTRUCTIONS The WLH2 Firewall encorperates volumetric dispensing control. Please follow the below steps to program dispense of both cold and sparkling options. Setting the pre-set water volume by entering the menu; • Pre-set Sparkling water volume: Press both sparkling buttons together for 5 seconds •... -
Page 21: Schematics
6. SCHEMATICS HYDRAULIC COMPONENTS Part Name JG Equal Elbow Connector 1/4" JG Bulkhead Connector Union 5/16 * 5/16" JG LLDPE Tube - Blue 8mm JG LLDPE Tube - Blue 8mm Compensator JG Reducing Straight Connector 5/16-1/4” JG LLDPE Tube - Blue 8mm MS DC Solenoid Valve JG Reducing Elbow Connector 5/16"... - Page 22 Flow Counter JG LLDPE Tube - Blue 8mm JG Straight Adaptor 1/4*1/4 Equal Elbow 5/16"*5/16" JG Straight Adaptor 1/4*1/4 Classe Sparkling Water pipe JG LLD PE Tube - Blue O.D.1/4" Equal Elbow 5/16"*5/16" JG Equal Elbow Connector 1/4" JG LLDPE Tube - Blue 8mm JG LLD PE Tube - Blue O.D.1/4"...
-
Page 23: Exploded View Diagram And Parts List
EXPLODED VIEW DIAGRAM AND PARTS LIST... - Page 24 Part No. Part Name ST-0240-L00-00 Classe top cover EN-0098-L00-00 Metal Push Button ST-0239-L00-00 Classe Aluminium UI Panel with Purezza Logo ST-0273-L00-00 Classe Aluminium UI Panel with WL Logo ST-0241-L00-00 Classe UI case EL-0174-L00-00 Micro Switch with Lever ST-0272-L00-00 Classe Micro Switch Cover ST-0267-L00-00 Classe UI hinge stopper PU-0027-I00-00...
- Page 25 CO-9025 Domestic Filter Dryer (WL3000, WL950) 15.88*6.35*2.1(10g) ST-0247-L00-00 Classe back bkt-L PU-0028-I00-00 Sparkling Safety valve kit CT-0040-I00-00 Classe Sparkling Tank CT-0028-L00-00 WL7 Ice thickness detection probe PL-0245-L00-00 Classe Bracket for Ice probe ST-0252-L00-00 Classe ice probe bkt PL-0257-L00-00 Classe Bracket for Ice Probe Down ST-0255-L00-00 Classe ice bath top bkt PL-0244-L00-00...
-
Page 26: Electrical Diagram
ELECTRICAL DIAGRAM HIGH VOLTAGE ELECTRICAL HAZARD WLH2 Firewall™ Unit and PCB (Printed Circuit Board) contain high voltage hazard. Only trained and qualified technicians should attempt live testing and troubleshooting. Electrical Diagram 230V...
