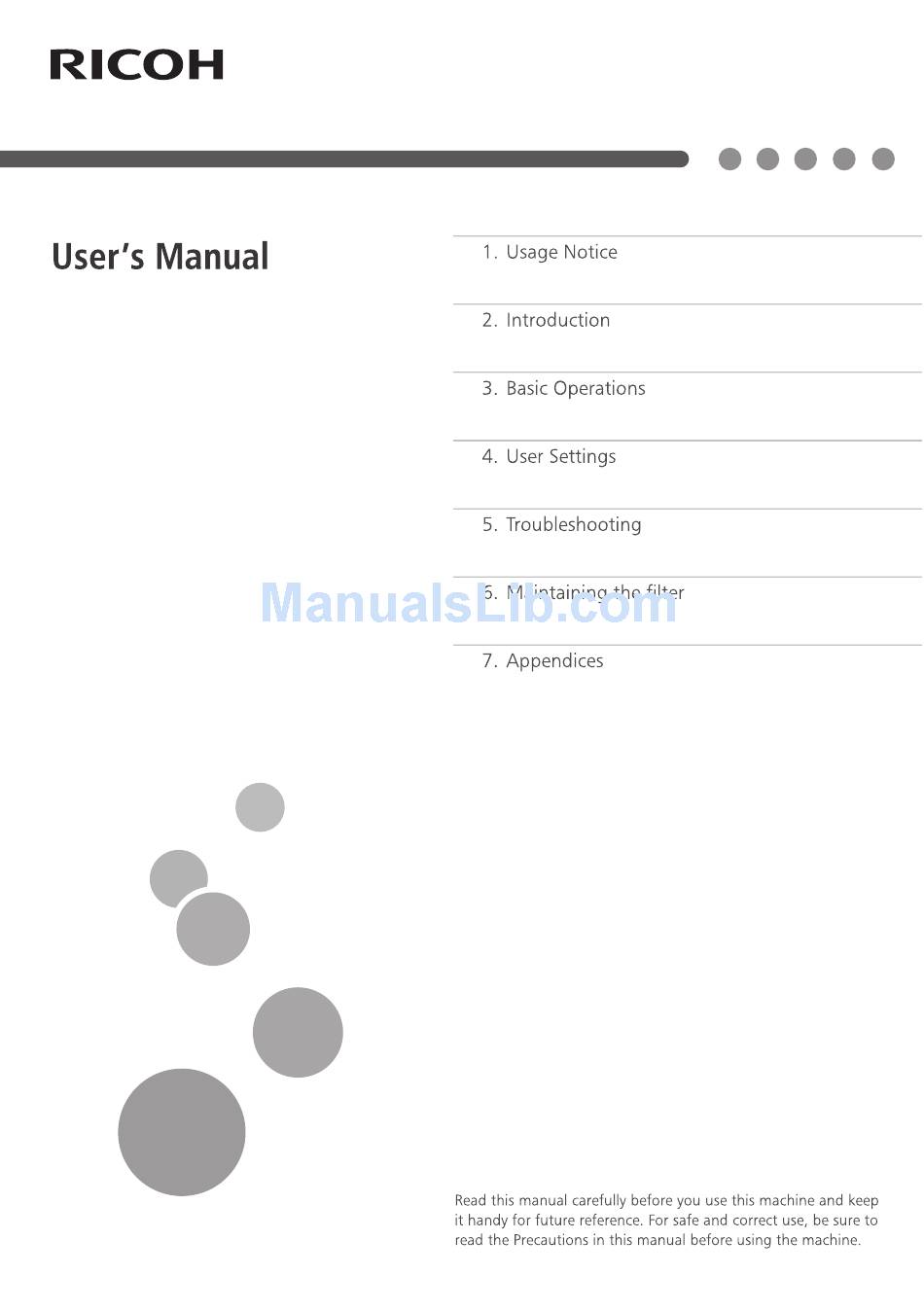

- Page 1 RICOH PJ LX3000ST/LW3000ST Series RICOH PJ XL4540/WXL4540...
-
Page 3: Table Of Contents
Table of Contents User Settings .........34 Table of Contents ......1 On-screen Display Menus ....34 Usage Notice ........2 How to operate ........34 Precautions .........2 OSD Menu Tree ........35 Safety Labels of This Machine ....7 Picture ..........38 Remote Control Battery ......8 Screen .......... -
Page 4: Usage Notice
Usage Notice Precautions Follow all warnings, precautions and maintenance as recommended in this user�s guide to maximize the life of your unit. ■ This apparatus must be earthed. Warning- ■ Do not look into the projector’s lens when the Warning- light source is on. - Page 5 Usage Notice ■ This product should be operated only from the Warning- type of power source which does not exceed the voltage range specified on the rating label and the power cord. If you are not sure of the type of power supply to your home, consult your sales representative or local power company.
- Page 6 Usage Notice f) For sales or service representatives: - Use brackets that are strong enough to support the projector. PJ WXL4540 Series and LW3000ST Series projectors weigh about 5.5 kg (12.2 lb.). - The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.
- Page 7 Usage Notice ■ Do not place this product on an unstable cart, Caution- stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. ■ Unplug this product from the wall outlet and take Caution- the product to qualified service personnel if you encounter any of the following conditions:...
- Page 8 Usage Notice ■ The heat from the unit could erase the informa- Caution- tion on the thermal paper, or cause deformation or warping. ■ Do not use the product in a closed installation Caution- location. Do not place the product in a box or in any other closed installation location.
-
Page 9: Safety Labels Of This Machine
Usage Notice Safety Labels of This Machine 1 Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating. Do not place your hands, face, or other objects near the air exhaust, the bottom of the unit. Doing so could result in injury and/or damage the object. -
Page 10: Remote Control Battery
Usage Notice Remote Control Battery If you wish to discard this product, please contact your local authori- ties, the shop where you bought this product, your local dealer or sales/ service representatives. Warning • Never throw batteries into a fire. Using the batteries improperly may cause them to explode or leak and may result in serious injury. -
Page 11: Regulation & Safety Notices
Regulation & Safety Notices This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ XL4540 TRADE NAME: PROJECTOR MODEL NAME: RICOH XL4540 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules. - Page 12 Usage Notice RESPONSIBLE PARTY: Ricoh Americas Corporation 5 Dedrick Place, West Caldwell, NJ 07006 Phone: 973-882-2000 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is grant-...
-
Page 13: Declaration Of Conformity For Eu Countries
Low Voltage Directive 2006/95/EC Notice: Users in EU countries CE Marking Traceability Information (For EU Countries Only) Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: Ricoh Europe PLC 20 Triton Street, London. NW1 3BF, United Kingdom... - Page 14 Usage Notice Notice: Users in Turkey All Other Users If you wish to discard this product, please contact your local authorities, the shop where you bought this product, your local dealer or sales/service representatives. Laser Notice • This Product is classified as Class 2 of IEC60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24,2007.
- Page 15 Usage Notice Notice: Users in the EU Note for the Battery and/or Accumulator Symbol In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste.
-
Page 16: Other Information
Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copy- right of protected materials. • Broadcasting images or movies for commercial purposes •... -
Page 17: Introduction
Introduction Product Features Outstanding features include: Single chip DLP technology ■ ® NTSC3.58/NTSC4.43/PAL(B/D/G/H/I/M/N)/SECAM ■ (B/D/G/K/K1/L) and SDTV(480i/576i), EDTV(480p/576p), HDTV(720p/1080i/1080p) compatible Multi-Auto functions: Auto detection, Auto image and Auto ■ saving the adjustments Full function remote control ■ User friendly multilingual on screen display ■... -
Page 18: Package Overview
Introduction Package Overview Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center. VGA Cable Projector Power Cord Due to different applications in each country, some regions may have... -
Page 19: Product Overview
Introduction Product Overview Main Unit The interface is subject to model’s specifications. 1. Control Panel 7. Power Socket 2. Focusing Ring 8. Input / Output 3. Ventilation (inlet) Connections 4. IR Receiver 9. Lens 5. Ventilation (outlet) 6. Speaker English English... -
Page 20: Control Panel
Introduction Control Panel 1. Power LED 2. Enter 3. Temp LED 4. Light LED 5. Menu 6. Input 7. Four Directional Select Keys 8. Power/Standby button 9. IR Receiver English... -
Page 21: Input/Output Connections
Introduction Input/Output Connections 1. Computer-In/YPbPr Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr) 2. HDMI2 Input Connector 3. HDMI1 Input Connector The interface is subject to 4. Service model’s 5. Power Socket specifications. 6. Monitor-Out Connector 7. PC Control (9-pin DIN Type) 8. -
Page 22: Remote Control
Introduction Remote Control 1. Transmitter 9. Eco 2. Picture 10. Freeze 3. Input 11. Menu 4. AV Mute 12. Enter 5. Four Directional Select 13. Keystone Keys 14. Aspect 6. Auto Set 15. Power 7. Volume +/- 8. Magnify +/- English... -
Page 23: Remote Control Battery Installation
Introduction Remote Control Battery Installation Press firmly and Remove the old battery and Put the cover back slide the battery install new one (CR2025). cover off. Ensure that the side with a “+” is facing up. To ensure safe operation, please observe the following precautions : ■... -
Page 24: Remote Control Operating Range
Introduction Remote Control Operating Range ■ When pointing the remote control directly toward the projector (Remote control signal receiver), operating range for the remote control is within 7 m (23.0 ft). Also, operation range available for four directions (up, down, left, right to the projector) is ± 15° and the operation distance may become short. -
Page 25: Connecting The Projector
Basic Operations Connecting the Projector Connect to Computer/Notebook MOLEX Due to the difference in applications for External each country, Display some regions may have different Microphone accessories. (*) Optional accessory Audio Output 1....................*RS232 Cable 2.....................VGA Cable 3....................*HDMI Cable 4....................*USB Cable 5.................. -
Page 26: Connect To Video Sources
Basic Operations Connect to Video Sources DVD Player, Set-top Box, HDTV receiver Composite Video Output Due to the difference in Microphone applications for each country, some regions may have different accessories. (*) Optional accessory Audio Output 1..........*15-Pin to 3 RCA Component/HDTV Adaptor 2....................*HDMI Cable 3....................*Audio Cable 4.................. -
Page 27: Powering The Projector On / Off
Basic Operations Powering the Projector On / Off Powering On the Projector 1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Orange. 2. Turn on the light source by pressing “ ” button either on the projector or on the remote. -
Page 28: Basic Operations
Basic Operations Powering Off the Projector 1. Press the “ ” button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen. Press the “ ” button again to confirm otherwise the message will disappear after 10 seconds. -
Page 29: Adjusting The Projected Image
Basic Operations Adjusting the Projected Image Adjusting the Projector�s Height The projector is equipped with elevator feet for adjusting the image height. 1. Locate the adjustable foot you wish to modify on the underside of the projector. 2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. -
Page 30: Adjusting Zoom-In Of The Projector
Basic Operations Adjusting zoom-in of the projector To focus on the image, slide the focus ring to the left or to the right until the image is clear. Focusing Ring English... -
Page 31: Adjusting Projection Image Size (Diagonal)
Basic Operations Adjusting Projection Image Size (Diagonal) XGA/WXGA series: focus range 1.3123 ~ 10.1706 ft. (0.4 ~ 3.1m) Distance (A) (from front cap of the projector to screen) Wide Range of Projection Distance (C) Screen Screen (H) Offset (D) 43.1 mm 113.4 mm Wide Range of Projection Distance (C) - Page 32 Basic Operations Screen Size W x H C (Projection Distance) D (Offset) Bottom Diagonal Length of Width Height Front cover cover to Image to screen bottom (mm) of screen (mm) inch inch inch inch inch 56.4 1432.3 45.1 1146.5 33.9 859.8 27.9 710.8...
-
Page 33: Control Panel & Remote Control
User Settings Control Panel & Remote Control Control Panel Using the Control Panel Refer to the “Power On/Off the Projector” POWER section on pages 25-26. Enter Press “Enter” to confirm your item selection. INPUT Press “INPUT” to select an input signal. Press “MENU”... -
Page 34: Remote Control
User Settings Remote Control Using the Remote Control Transmitter Send signals to the projector. Picture Select the preset picture mode. Input Select the input source. AV Mute Momentarily turn off/on the audio and video. Four Directional to select items or make Select Keys adjustments to your selection. - Page 35 User Settings Pause the screen image. Press again Freeze to resume the screen image. Press “Menu” to launch the on screen Menu display (OSD), or go back to the pre- vious menu. Enter Select or confirm settings Adjust the image to compensate for Keystone distortion caused by tilting the projector.
-
Page 36: User Settings
User Settings On-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. How to operate To open the OSD menu, press “Menu” on the Remote Control or Projector Keypad. -
Page 37: Osd Menu Tree
User Settings OSD Menu Tree Main Menu Tree 2nd level 3rd level 4th level Default Value Range 1st level Bright depend on signal type and change Color Mode Color Mode Movie to User Mode if customer Game changes the settings User White/ Light yellow/ Light Wall color... - Page 38 User Settings Main Menu Tree 2nd level 3rd level 4th level Default Value Range 1st level English German French Italian Spanish Polish Swedish Dutch Portugese Language English Japanese Traditional Chinese Simplified Chinese Thai Indonesian Arabic Setting Norsk Turkish Danish Left Top, Right Top, Center, Menu Location Center Left Bottom, Right Bottom...
- Page 39 User Settings Main Menu Tree 2nd level 3rd level 4th level Default Value Range 1st level Logo Default/User Default Logo Capture Auto Source On/Off VGA-1, VGA-2, HDMI-1, Input Seach all source, HDMI-2, Composite Auto Power Off 0~120 (Min) LASER Hours Used infinite (Normal) LASER Settings...
-
Page 40: Picture
User Settings Picture Color Mode There are many factory presets optimized for various types of im- ages. Use the ◄ or ► button to select the item. Bright: For brightness optimization. PC: For meeting presentation. Movie: For playing video content. ... - Page 41 User Settings Sharpness Adjust the sharpness of the image. Press the ◄ button to decrease the sharpness. Press the ► button to increase the sharpness. Saturation Adjust a video image from black and white to fully saturated color. Press the ◄...
-
Page 42: Screen
User Settings Screen Aspect Ratio Auto: Keep the image with original width-height ratio and maxi- mize the image to fit native horizontal or vertical pixels. 4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio. 16:9: The image will be scaled to fit the width of the screen and ... - Page 43 User Settings Digital Zoom Press the ◄ button to reduce the size of an image. Press the ► button to magnify an image on the projection screen. V Keystone Press the ◄ or ► button to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.
-
Page 44: Setting
User Settings Setting Language Choose the multilingual OSD menu. Press the ◄ or ► button into the sub menu and then use the ▲ or ▼ button to select your preferred language. Press ► on the remote control to finalize the selection. - Page 45 User Settings VGA-2 (Function) Input: Choose “Input” to let the VGA port works as a VGA input function. Output: Choose “Output” to enable the VGA Out function once the projector is powered on. Test Pattern Display a test pattern. Reset Choose “Yes”...
-
Page 46: Volume
User Settings Volume Speaker Choose “On” to enable the speaker. Choose “Off” to disable the speaker. Line Out Choose “On” to enable the line out function. Choose “Off” to disable the line out function. Microphone Choose “On” to enable the microphone. ... -
Page 47: Options
User Settings Options Logo Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered For successful logo capture, please ensure that the Default: The default startup screen. ... -
Page 48: High Altitude
User Settings Auto Power Off (Min) Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes). LASER Settings Refer to page 47. -
Page 49: Options | Laser Settings
User Settings Options | LASER Settings LASER Hours Used (Normal) Display the projection time of normal mode. LASER Hours Used (ECO) Display the projection time of ECO mode. LASER Power Mode Normal: Normal mode. ECO: Use this function to dim the projector light source which ... - Page 50 User Settings “Frame Packing” Auto: When a HDMI 1.4a 3D timing identification signal is de- is supported the tected, the 3D image is selected automatically. DLP Link 3D input signals from VGA Choose “On” to enable 3D function. / HDMI connector.
-
Page 51: Troubleshooting
Troubleshooting Troubleshooting If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ... - Page 52 Troubleshooting Problem: The screen of the Notebook or PowerBook com- puter is not displaying a presentation If you are using a Notebook PC: Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated.
- Page 53 Troubleshooting Problem: Image is reversed Select “Screen --> Ceiling Mount” from the OSD and adjust the projection direction. English English...
- Page 54 Troubleshooting Problem: Indicator lighting message POWER TEMP LIGHT indicator indicator indicator Message (Red/Blue) (Red) (Red) Standby (Input power cord) (Red) Normal (Power on) (Blue) Flashing Red Powering up (Warming up) (1 sec) Flashing Red Power off (Cooling Down) (0.5 sec) Error (Over temp.
- Page 55 Troubleshooting Problem: Message Reminders Over temperature - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it may be used. Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temprature is under 40 degrees C. Fan failed - the system fan is not working.
-
Page 56: Maintaining The Filter
Maintaining the filter Installing and Cleaning the Optional Dust Filter We recommend you clean the dust filter every 500 hours of operation, or more often if you are using the projector in a dusty environment. When the warning message appears on the screen, do the following to clean the air filter: The optional dust ... -
Page 57: Appendices
Appendices List of Compatible Signals VGA Analog a. PC signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 640x480 61.9 720x400 31.5 800x600 35.1 800x600 37.9 800x600 48.1 SVGA 800x600 46.9 800x600... - Page 58 Appendices b. Extended wide timing Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 1280x720 44.8 1280x800 49.6 WXGA 1366x768 47.7 1440x900 59.9 WSXGA+ 1680x1050 65.3 c. Component signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 720x480 480i 59.94(29.97) 15.7 (1440x480) 720x576 576i...
-
Page 59: Hdmi Digital
Appendices HDMI Digital a. PC signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 640x480 61.9 720x400 31.5 800x600 35.1 800x600 37.9 800x600 48.1 SVGA 800x600 46.9 800x600 53.7 800x600 77.4 Apple, MAC II... - Page 60 Appendices b. Extended wide timing Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 1280x720 44.8 1280x800 49.6 WXGA 1366x768 47.7 1440x900 59.9 WSXGA+ 1680x1050 65.3 c. Video signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 480p 640x480 59.94/60 31.5 720x480 480i 59.94(29.97)
-
Page 61: Configurations Of Terminals
Appendices Configurations of Terminals Terminal : Analog RGB (Mini D-sub 15 pin) Red (R/Cr) Input/R Output DDC 5V / NC Green (G/Y) Input/G Output Ground (Ver. sync.) Blue (B/Cb) Input/B Output ICP download ICP download / NC DDC Data / NC Ground (Horiz.sync.) Horiz. -
Page 62: Pc Control
Appendices PC Control RS232 Port Setting Items Method Communication Method Asynchronous Communication Bits per seconds 9600 Data bits 8 bits Parity None Stop bits Flow control None RS232 Signals Connection RS232 shell is grounded. Computer COM Port Projector COM Port (D-Sub 9pin connector) (D-Sub 9pin connector) English... -
Page 63: Specifications
20% to 80% humidity (non-condensing) Projection System DLP 0.55” chip (XGA) / DLP 0.65” chip (WXGA) Resolution RICOH PJ XL4540/LX3000ST Series 1024 x 768pixels (XGA) RICOH PJ WXL4540/LW3000ST Series 1280 x 800pixels (WXGA) Lens F# 2.7 , f = 7.15mm Light Source 3.5W Laser x 19pcs... - Page 64 Appendices • This model complies with the above specifications. • Designs and specifications are subject to change without notice. • This model may not be compatible with features and/or specifications that may be added in the future. English...
-
Page 65: Ceiling Mount Installation
Appendices Ceiling Mount Installation If you want to use a third-party ceiling mount kit, please ensure the screw used to attach the mount to the projector meet the following specifications: Screw type: M4*4 Minimum screw length: 10mm Damages resulting from incorrect installation are not covered under... -
Page 66: Trademarks
Appendices Trademarks • DLP is trademarks of Texas Instruments. • IBM is a trademark or registered trademark of International Business Machines Corporation. • Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries. •...
