4U 19in Steel Hinged Wall-Mount Bracket for Patch Panels

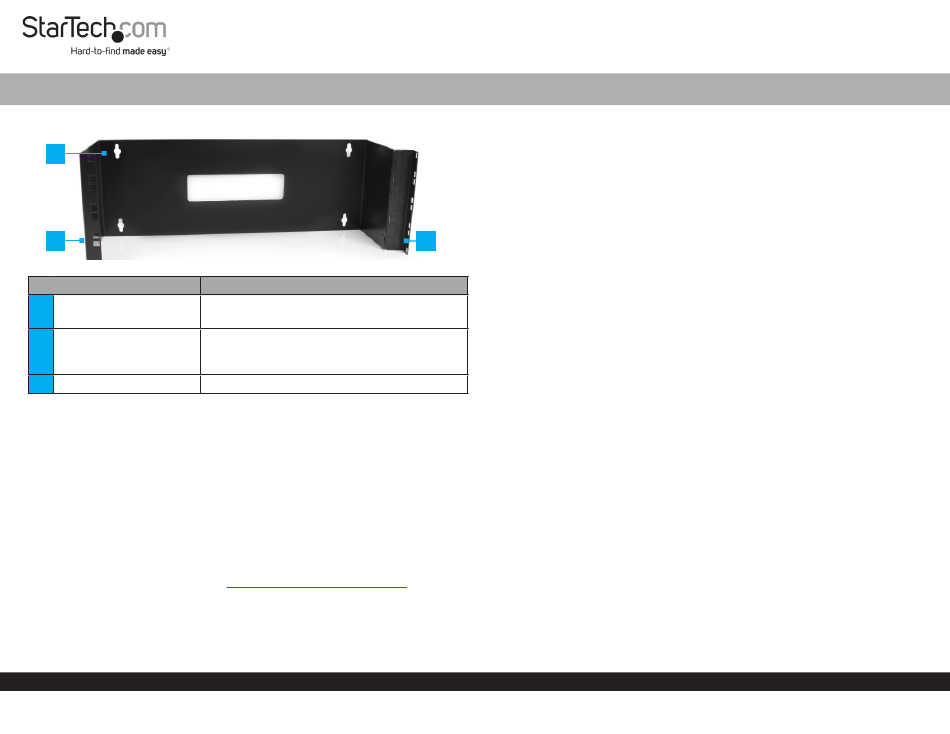

Product Diagram (WALLMOUNTH4)
1
2
Component
•
1
Mounting Holes (4)
•
•
2
Cage Nut Holes
•
3
Hinged Side Panel
•
Package Contents
Wall-Mount Bracket x 1
•
M6 Screws x 4
•
M6 Cage Nuts x 4
•
Plastic Washers x 4
•
M5-25 Flat-head Screws x 4
•
Concrete Wall Anchors x 4
•
Quick-Start Guide x 1
•
Requirements
For the latest requirements, please visit
Phillips Head Screwdriver x 1
•
(Optional) Cage Nut Tool x 1
•
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Function
Mount the Wall-Mount Bracket to a Wall.
Maximum weight capacity = 15 kg (33 lb).
Mount a Patch Panel in the Wall-Mount
Bracket.
Maximum height = 4U.
Access the back of the installed Patch Panel.
www.startech.com/WALLMOUNTH4
Installing the Wall-Mount Bracket
Warnings: If you lack the necessary expertise to attach this product to the wall,
consult a professional to install the Wall-Mount Bracket or to provide specific
mounting instructions for your wall structure.
Make sure that the type of wall structure and mounting hardware that you are using
will properly support the mounted equipment. Failure to do so might result in personal
injury and/or equipment damage. The wall structure should be capable of supporting
at least four times the weight of the mounted equipment.
Do not add equipment to the Wall-Mount Bracket until it is securely attached to the
3
wall.
Adding Equipment to the Wall-Mount Bracket
Use the included M6 Cage Nuts, Screws, and Plastic Washers to install equipment
into the Wall-Mount Bracket.
Insert the Wing (side) of an M6 Cage Nut into the back of the desired Cage Nut
1.
Hole.
Apply pressure by hand, or with the Cage Nut Tool, to insert the second Wing of the
2.
M6 Cage Nut into the desired Cage Nut Hole.
Repeat steps 1 and 2 to insert the desired number of Cage Nuts for the application.
3.
Thread a Plastic Washer over an M6 Screw. Repeat until the desired number of M6
4.
Screws have been prepared.
Align the Mounting Holes in the Equipment with the M6 Cage Nuts installed in
5.
steps 1-3.
Insert the assembled Screws through the Mounting Holes in the Equipment and
6.
into the M6 Cage Nuts.
Tighten the Screws, using a Phillips Head Screwdriver.
7.
Accessing the Back of a Patch Panel
While supporting the weight of the Patch Panel, use a Phillips Head Screwdriver
1.
to unscrew two M6 Screws from the Cage Nuts, leaving the other two M6 Screws
attached to the Hinged Side Panel.
Note: Make sure that there is enough clearance for the Patch Panel to free swing
away from the Wall-Mount Bracket, before accessing the back of the Patch Panel.
